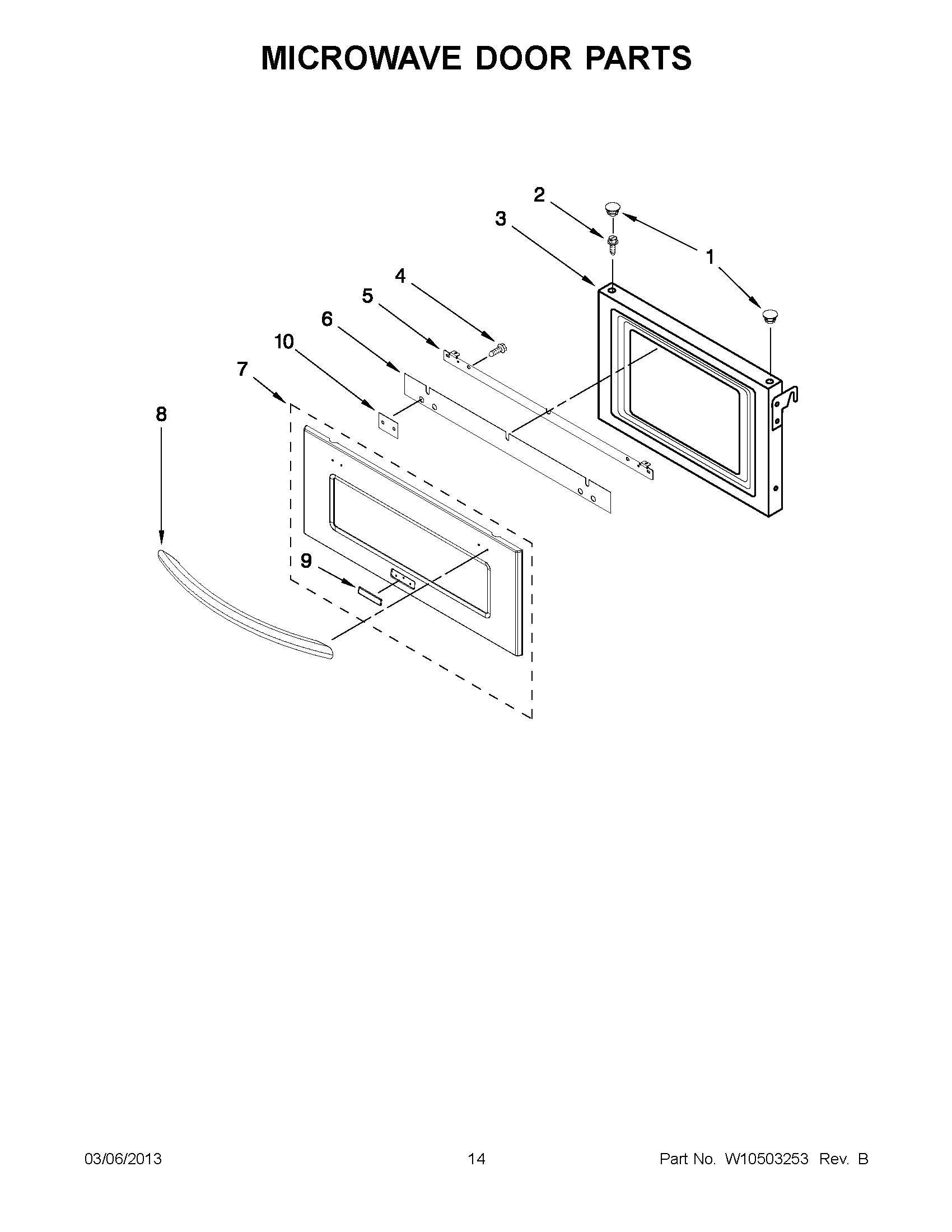

JMW2427WB02 07 – MICROWAVE DOOR PARTS

Products

Position	Product
1	CAP, SCREW
2	MAY 7101P426- 60
3	DOOR, MICROWAVE INNER
4	SCREW, HANDLE (STANDARD)
5	MAY W10281179
5	BRACKET, HANDLE
6	BLACK
6	FOAM PAD
7	GLASS ASSEMBLY (STAINLESS)
7	MAY W10176230
7	MAY W10176229
8	MAY W10186760
8	MAY W10186759
8	MAY W10186758
9	ASSEMBLY, BADGE (WHITE)
9	ASSEMBLY, BADGE (STAINLESS)
9	ASSEMBLY, BADGE (BLACK)
10	MAY W10314607
