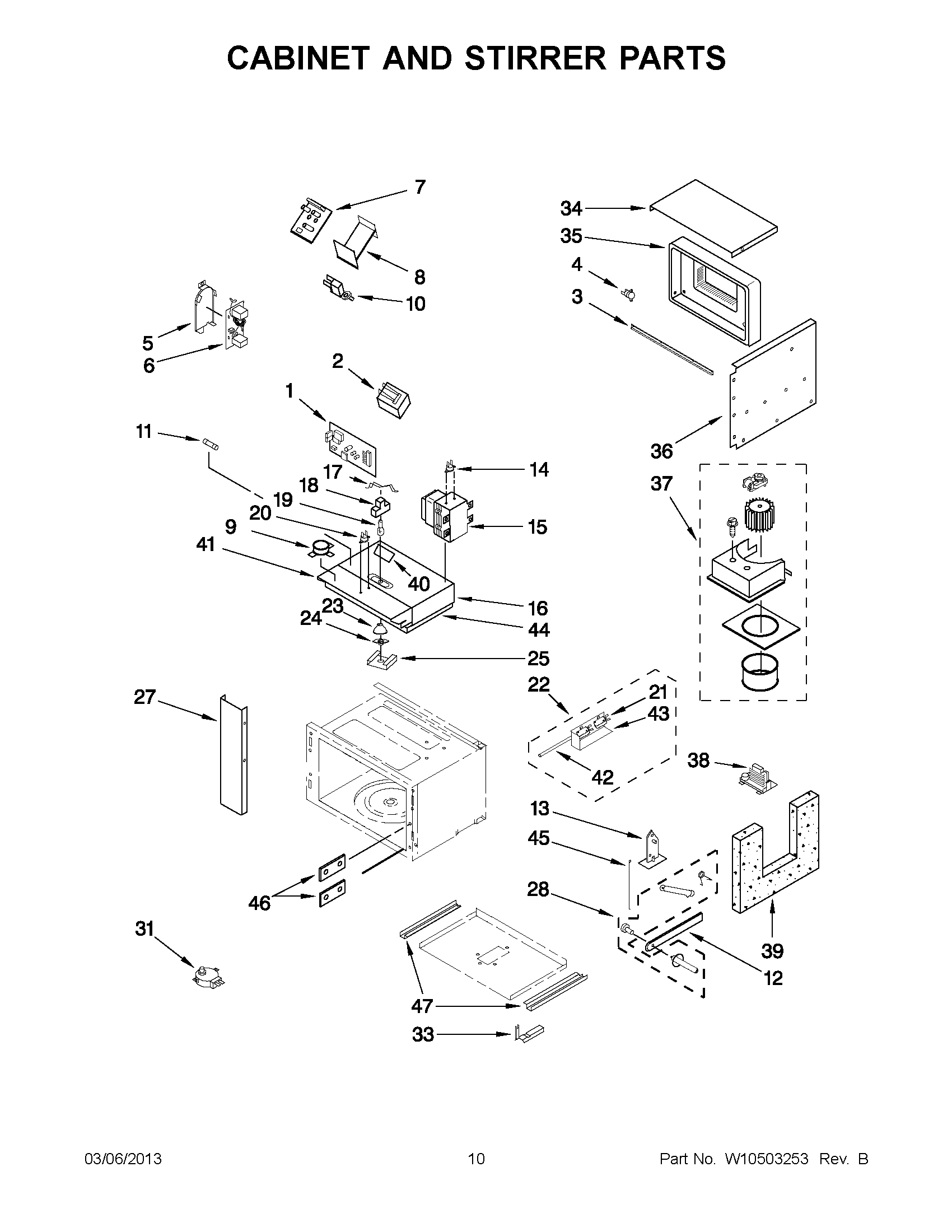

JMW2427WS02 05 – CABINET AND STIRRER PARTS

JMW2427WS02 05 – CABINET AND STIRRER PARTS

Written by

in

JMW2427WS02 05 – CABINET AND STIRRER PARTS

Products

Position	Product
1	MAY W10350762
2	TRANSFORMER
3	MAY W10291274
4	MAY W10120223
6	MAY W10287966
7	CONTROL, ELECTRIC CONVERTER
9	MAY W10475857
10	ACTUATOR
11	MAY 4375321
12	ARM
13	MAY 8205686
14	MAY W10287986
15	MAY W10120113
17	MAY W10475855
18	HOUSING, LAMP
19	MAY W10287972
20	MAY W10287987
21	SWITCH
22	MAY W10358246
23	MAY 4375320
24	MAY 4375318
25	CLIP, SPRING
28	ASSEMBLY, SLIDING ARM
31	MOTOR, CONVECTION
33	MAY W10120478
37	MAY W10330572
38	MAY W10120229
42	ROD, RELEASE
43	HOLDER, SWITCH
44	LINER (NOT A SERVICEABLE PART)
45	SPRING
46	COVER, PLATES
47	SUPPORT
