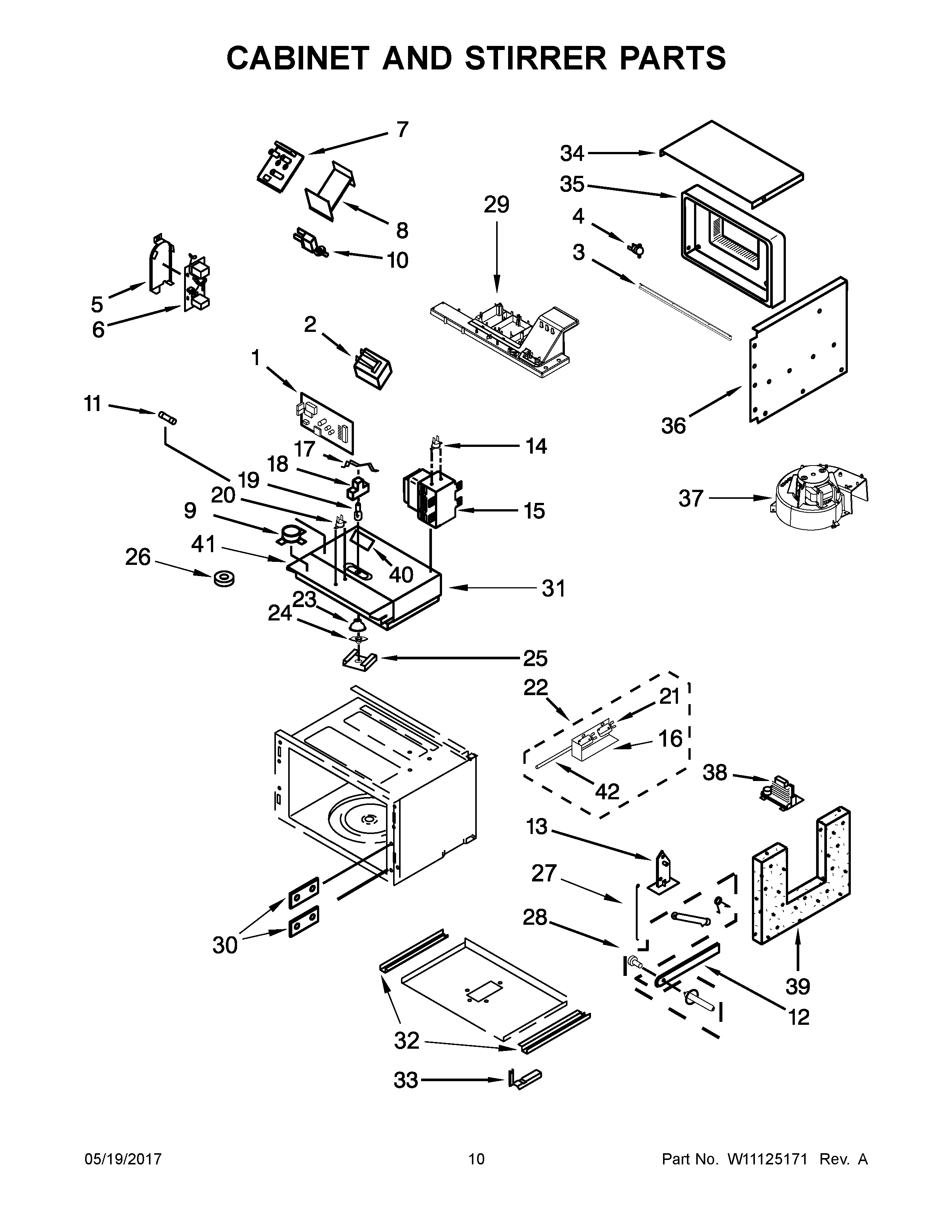

JMW2427WS03 06 – CABINET AND STIRRER PARTS

Products

Position	Product
1	MAY W10626304
2	TRANSFORMER, LIGHT (20V)
3	MAY W10291274
4	MAY W10120223
6	FILTER, NOISE
7	MAY W10578541
9	MAY W10475857
10	ACTUATOR
11	FUSE
12	ARM, SLIDING
13	SUPPORT
14	THERMOSTAT, MAGNETRON
15	MAY 461967847321
16	HOLDER, SWITCH
17	SPRING, LAMP
18	HOLDER, LAMP
19	LAMP, HALOGEN
20	MAY W10287987
21	SWITCH
22	MAY W10358246
23	REFLECTOR
24	LENS, LAMP
25	CLIP, SPRING
26	SEALING, LAMP
27	SPRING
28	ASSEMBLY, SLIDING ARM
29	DUCT, MAGNETRON
30	COVER, PLATES
32	SUPPORT
33	MAY 461968979601
37	MAY 461968969271
38	MAY W10468206
41	LINER (NOT A SERVICEABLE PART)
42	ROD, RELEASE
