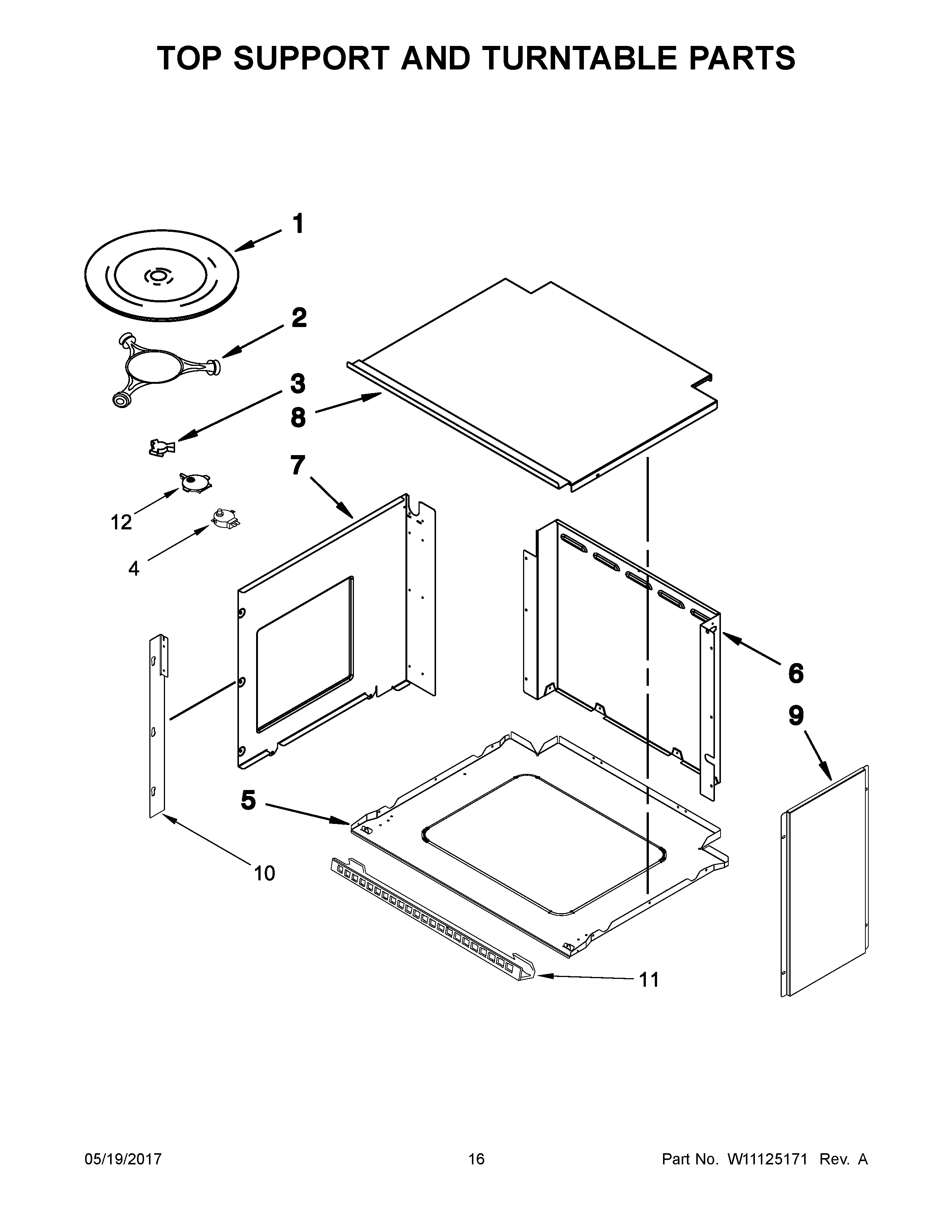

JMW2427WS03 09 – TOP SUPPORT AND TURNTABLE PARTS

JMW2427WS03 09 – TOP SUPPORT AND TURNTABLE PARTS

Written by

in

JMW2427WS03 09 – TOP SUPPORT AND TURNTABLE PARTS

Products

PositionProduct
1MAY 461967720541
2RING, TURNTABLE
3DRIVE, TURNTABLE
4MOTOR, TURNTABLE
5MAY W10176063
6MAY W10186984
7AMAY W10176064
7MAY W10176065
8MAY W10175999
9MAY W10176066
10AMAY 461967013722
10MAY 461967013732
11MAY 461968973251
12ADAPTER, TURNTABLE MOTOR
