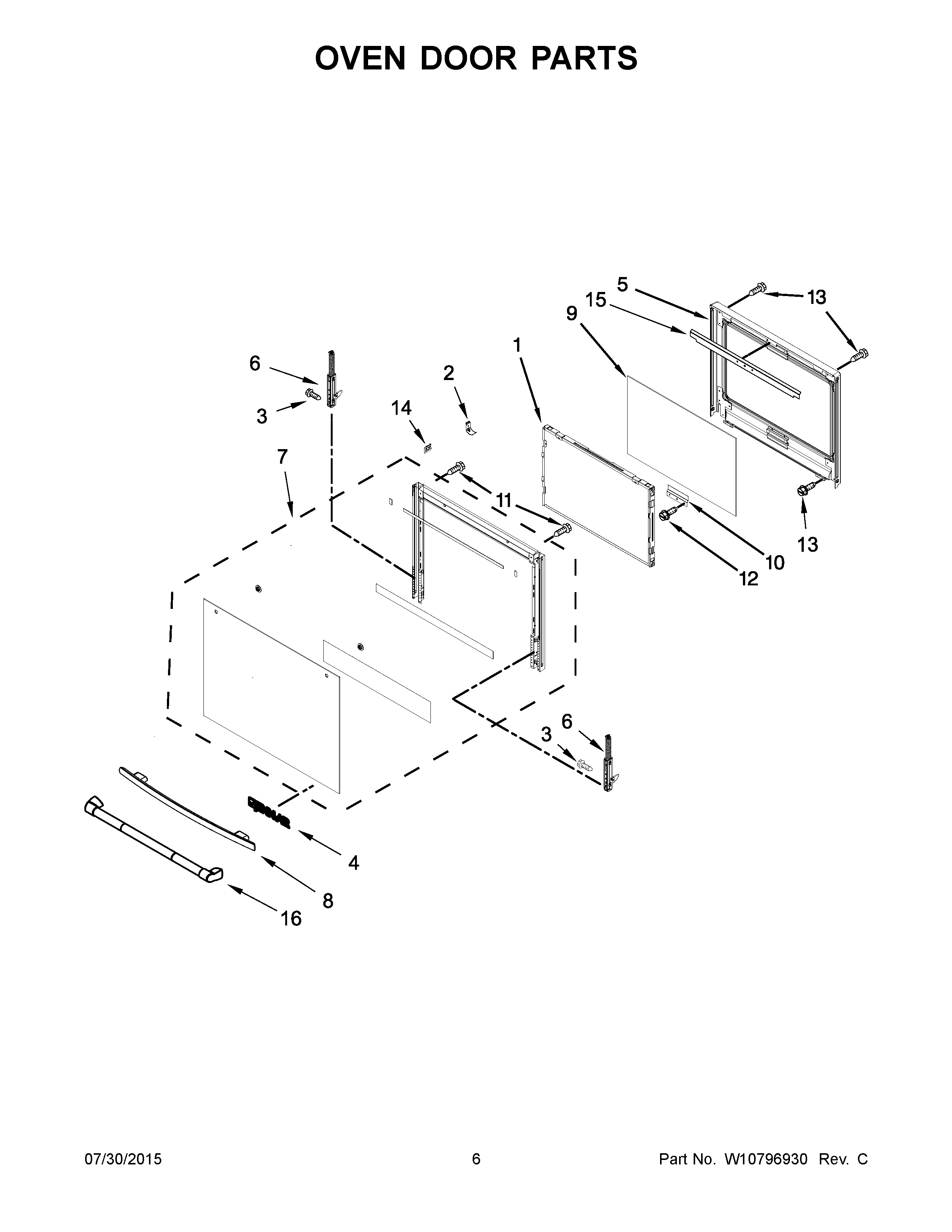

JMW2430DB00 04 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347596
2MAY W10284285
3SCREW
4ASSEMBLY, BADGE (BLACK)
4AASSEMBLY, BADGE (STAINLESS)
4BMAY W10159578
5MAY W10709147
6MAY W10639067
6AMAY W10639069
7AASSEMBLY, DOOR (STAINLESS)
7MAY W10725069
8ASSEMBLY, DOOR HANDLE (BLACK)
8AASSEMBLY, DOOR HANDLE (STAINLESS)
9GLASS, INNER
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13Screw (2) (Black)
14MAY W10653954
15SHIELD, DOOR LINER
16ASSEMBLY, DOOR HANDLE (STAINLESS)
