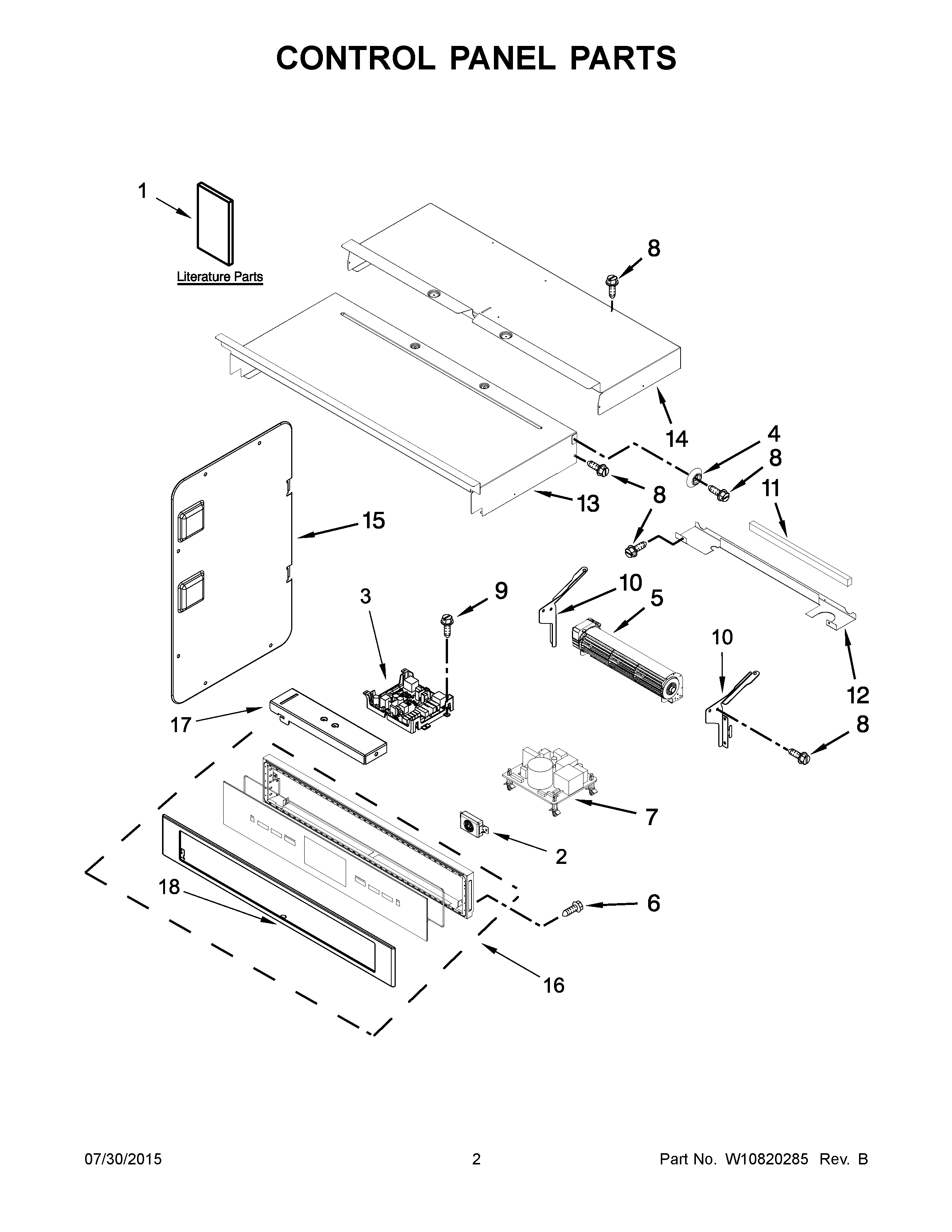

JMW2430DB01 02 – CONTROL PANEL PARTSadmin2025-04-26T09:42:15+00:00JMW2430DB01 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | CLIP, HARNESS |
| NI | CLAMP, CONDUIT |
| NI | STRAP, GROUND |
| NI | MAY W10389372 |
| NI | MAY W10406103 |
| NI | HARNESS, DOOR LATCH |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | HARNESS, SIGNAL |
| NI | MAY 4450800 |
| NI | HARNESS, COMMUNICATION |
| NI | MAY W10667018 |
| 1A | GUIDE, USE & CARE (MICROWAVE) |
| 1D | MAY W10767736 |
| 1 | GUIDE, USE & CARE |
| 1B | INSTRUCTIONS, INSTALLATION |
| 1C | INSTR, INSTALLER |
| 2 | ASSEMBLY, SPEAKER |
| 3 | CONTROL (WITH POWER SUPPLY) |
| 4 | SPACER, LATERAL |
| 5 | BLOWER |
| 6 | MAY W10489172 |
| 7 | BOARD, POWER SUPPLY |
| 8 | MAY 7101P426- 60 |
| 9 | MAY 7101P434-60 |
| 10A | BRACKET, BLOWER (RIGHT) |
| 10 | BRACKET, BLOWER (LEFT) |
| 11 | BLOCK, FOAM |
| 12 | CHASSIS, BACK DIVIDER |
| 13 | CHASSIS, COVER TOP FRONT 30" |
| 14 | CHASSIS, COVER TOP BACK 30" |
| 15 | CHASSIS, COMBO SIDE |
| 16 | MAY W10524518 |
| 16A | MAY W10713605 |
| 17 | MAY W10323725 |
| 18 | SKIN, CONTROL PANEL (STAINLESS) |
