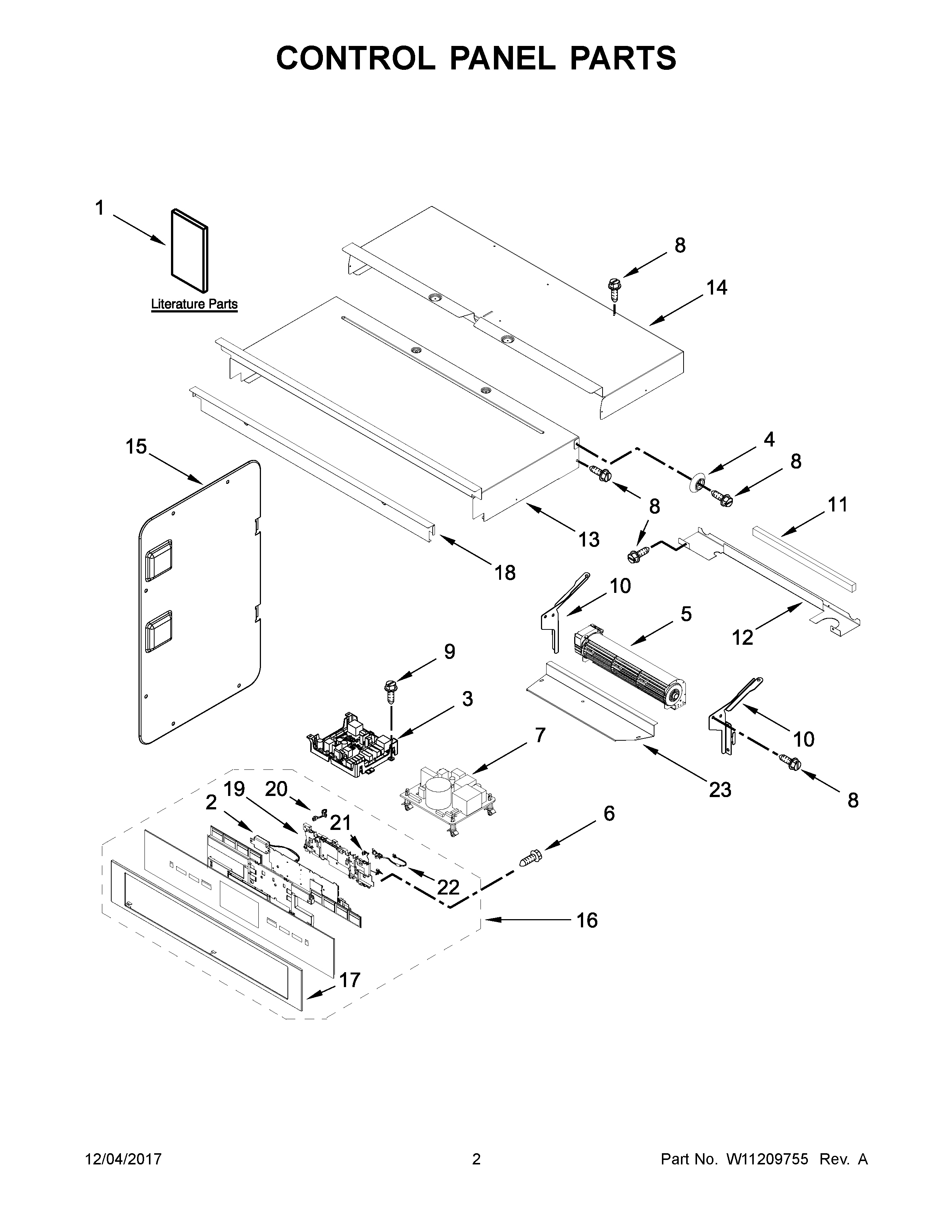

JMW2430DB02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	HARNESS, FAN & TURNTABLE
NI	MAY W10775068
NI	BAG, HARDWARE
NI	STRAP, GROUND
NI	HARNESS, INVERTER
NI	HARNESS, CABLE TREE ASSEMBLY
NI	CLAMP, CONDUIT
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, SIGNAL
NI	MAY 4450800
NI	HARNESS, COMMUNICATION
NI	HARNESS, MAIN
1B	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH (ENGLISH/FRENCH)
1	GUIDE, USE & CARE
1A	GUIDE, USE & CARE (MICROWAVE)
2	ASSEMBLY, SPEAKER
3	CONTROL (WITH POWER SUPPLY)
4	SPACER, LATERAL
5	BLOWER
6	MAY W10489172
7	BOARD, POWER SUPPLY
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	CHASSIS, BACK DIVIDER
13	CHASSIS, COVER TOP FRONT 30"
14	CHASSIS, COVER TOP BACK 30"
15	CHASSIS, COMBO SIDE
16	MAY W10875267
16A	MAY W10875273
17	SKIN, CONTROL PANEL (STAINLESS)
18	COVER, 30" COMPLIMENT
19	HOUSING
20	HARNESS, KEYPAD (LEFT TO CENTER)
21	HARNESS, KEYPAD (RIGHT TO CENTER)
22	JUMPER HARNESS, POWER SUPPLY
23	COVER, COMBO BLOWER
