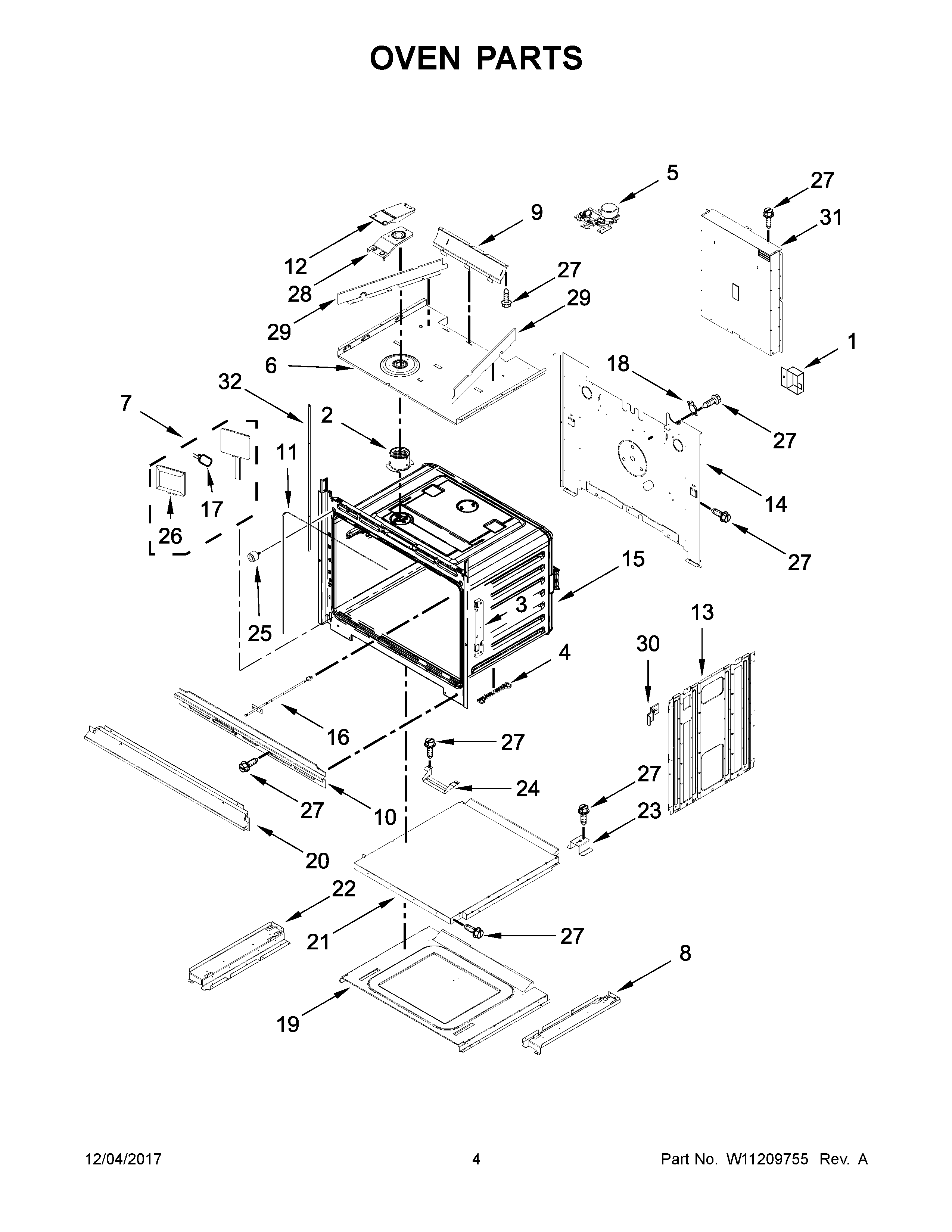

JMW2430DB02 03 – OVEN PARTSadmin2025-04-26T09:42:03+00:00JMW2430DB02 03 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | MAY W10282944 |
| NI | INSULATION, WRAP |
| 1 | MAY 8285593 |
| 2 | MAY W10282946 |
| 3 | MAY W10616802 |
| 4 | SPACER, BASE |
| 5 | LATCH, MOTORIZED |
| 6 | TOP, CHASSIS |
| 7 | ASSEMBLY, OVEN LIGHT |
| 8 | SUPPORT, BASE (RIGHT) |
| 9 | DEFLECTOR, BLOWER |
| 10 | VENT, CENTER 30" |
| 11 | GASKET |
| 12 | COVER, VENT EXHAUST |
| 13 | SIDE, CHASSIS (RIGHT) |
| 14 | BACK, CHASSIS |
| 15 | LINER (NOT A SERVICEABLE PART) |
| 16 | MAY W10622170 |
| 17 | BULB, LIGHT |
| 18 | THERMOSTAT |
| 19 | BASE, CHASSIS |
| 20A | ASSEMBLY, BOTTOM VENT (STAINLESS) |
| 20 | MAY W10351275 |
| 21 | CHASSIS, BOTTOM DUCT |
| 22 | SUPPORT, BASE (LEFT) |
| 23 | MAY W10213759 |
| 24 | SPACER, CHASSIS BOTTOM DUCT |
| 25 | BUMPER & SCREW |
| 26 | LENS, LIGHT |
| 27 | MAY 7101P426- 60 |
| 28 | BASE, VENT EXHAUST |
| 29 | DEFLECTOR, CHASSIS |
| 30 | MAY W10347649 |
| 31 | MAY W10519703 |
| 32 | TRIM, SIDE (BLACK (LEFT)) |
| 32A | TRIM, SIDE (BLACK (RIGHT)) |
