JMW2430DB03 04 – OVEN DOOR PARTS

JMW2430DB03 04 – OVEN DOOR PARTS

Written by

in

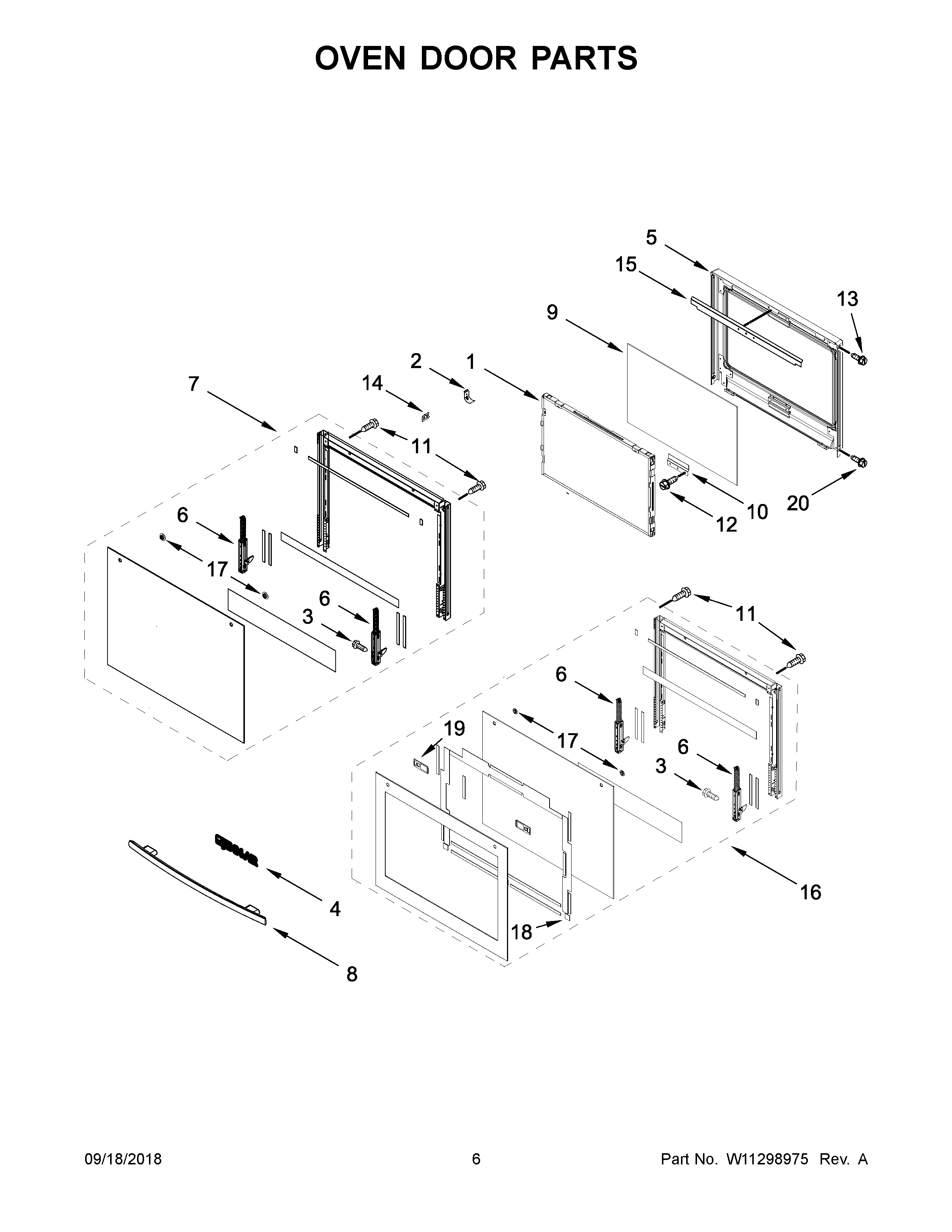

JMW2430DB03 04 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347596
2MAY W10284285
3SCREW
4ASSEMBLY, BADGE (BLACK)
4AASSEMBLY, BADGE (STAINLESS)
5MAY W10709147
6MAY W10639067
6AMAY W10639069
7MAY W10725069
8ASSEMBLY, DOOR HANDLE (BLACK)
8AASSEMBLY, DOOR HANDLE (STAINLESS)
9GLASS, INNER
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13SCREW WITH WASHER
14MAY W10653954
15SHIELD, DOOR LINER
16ASSEMBLY, DOOR (STAINLESS)
17WASHER, DOOR
18SPACER, VENT
19SPACER, HANDLE
20MAY 7101P635-60
