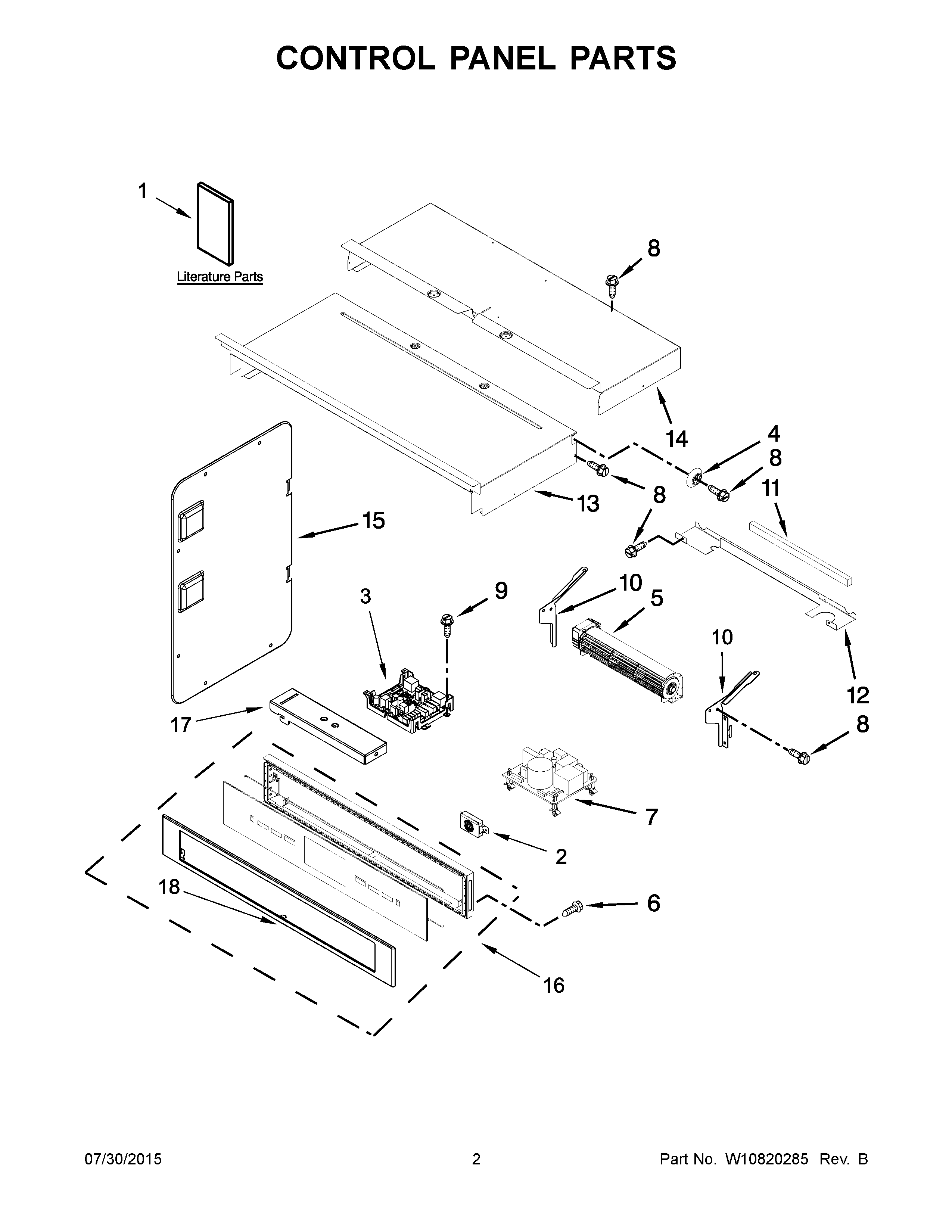

JMW2430DP01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NICLAMP, CONDUIT
NISTRAP, GROUND
NIMAY W10389372
NIMAY W10406103
NIHARNESS, DOOR LATCH
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, SIGNAL
NIMAY 4450800
NIHARNESS, COMMUNICATION
NIMAY W10667018
1AGUIDE, USE & CARE (MICROWAVE)
1DMAY W10767736
1GUIDE, USE & CARE
1BINSTRUCTIONS, INSTALLATION
1CINSTR, INSTALLER
2ASSEMBLY, SPEAKER
3CONTROL (WITH POWER SUPPLY)
4SPACER, LATERAL
5BLOWER
6MAY W10489172
7BOARD, POWER SUPPLY
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP FRONT 30"
14CHASSIS, COVER TOP BACK 30"
15CHASSIS, COMBO SIDE
16MAY W10524518
16AMAY W10713605
17MAY W10323725
18SKIN, CONTROL PANEL (STAINLESS)
