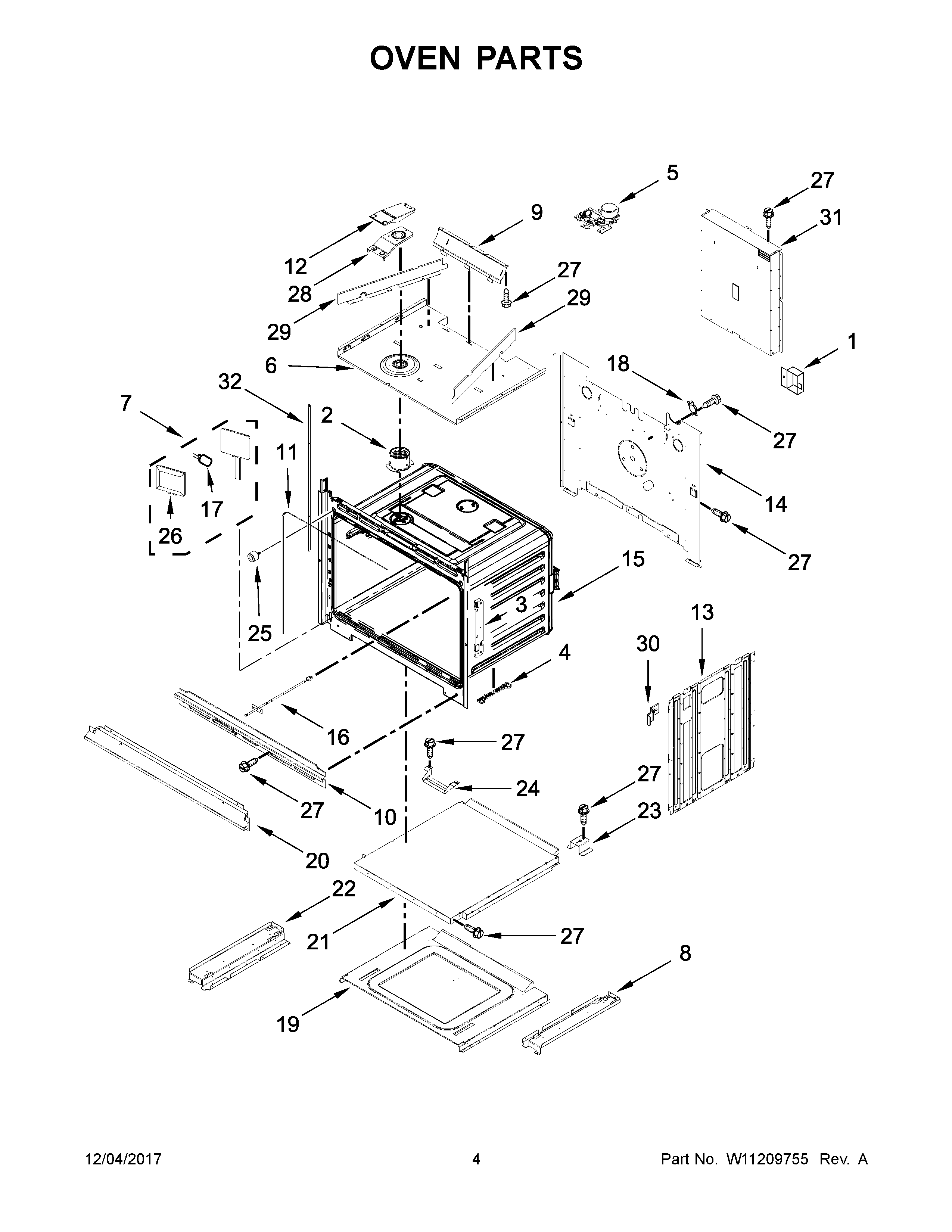

JMW2430DP02 03 – OVEN PARTS

Products

Position	Product
NI	MAY W10282944
NI	INSULATION, WRAP
1	MAY 8285593
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	SUPPORT, BASE (RIGHT)
9	DEFLECTOR, BLOWER
10	VENT, CENTER 30"
11	GASKET
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
15	LINER (NOT A SERVICEABLE PART)
16	MAY W10622170
17	BULB, LIGHT
18	THERMOSTAT
19	BASE, CHASSIS
20A	ASSEMBLY, BOTTOM VENT (STAINLESS)
20	MAY W10351275
21	CHASSIS, BOTTOM DUCT
22	SUPPORT, BASE (LEFT)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	LENS, LIGHT
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	DEFLECTOR, CHASSIS
30	MAY W10347649
31	MAY W10519703
32	TRIM, SIDE (BLACK (LEFT))
32A	TRIM, SIDE (BLACK (RIGHT))
