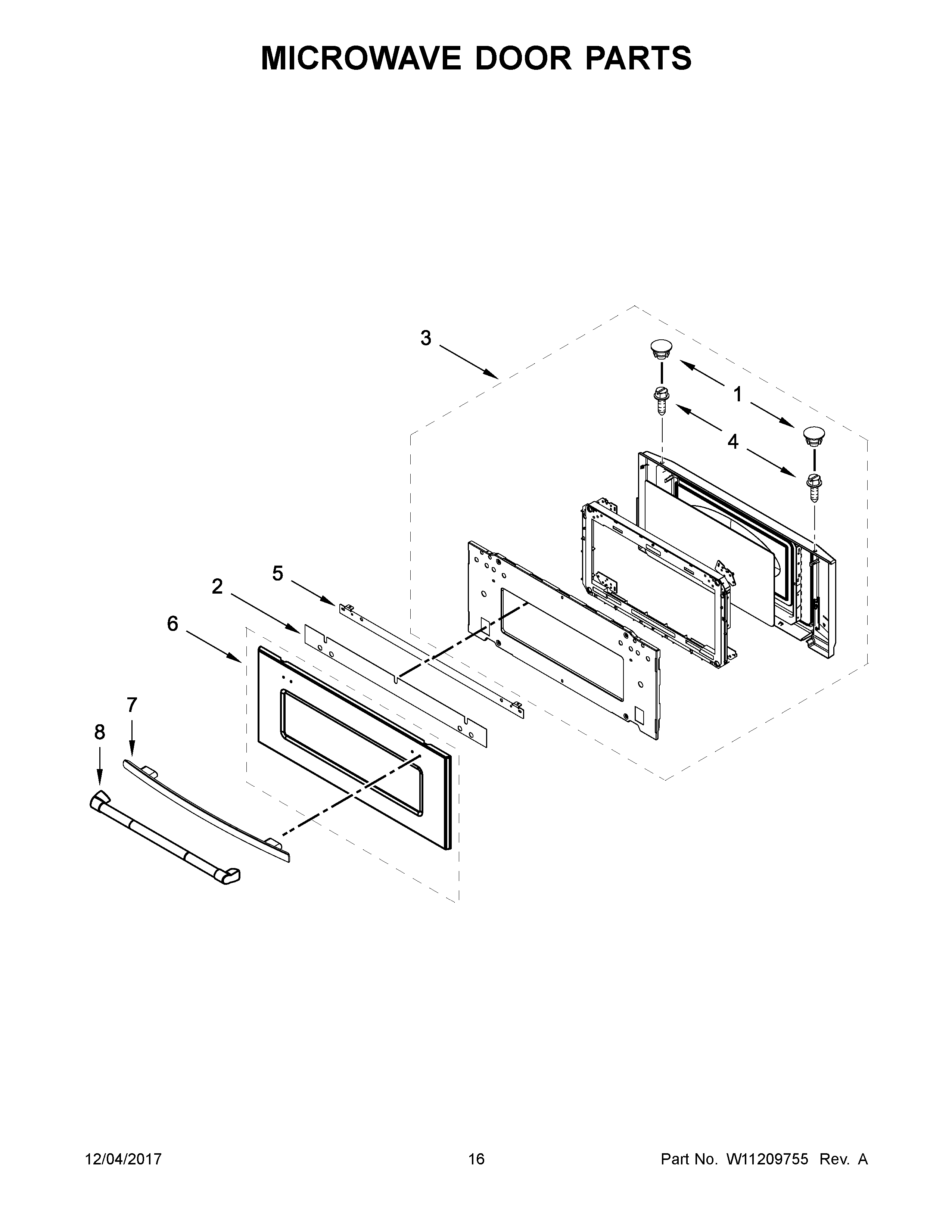

JMW2430DP02 09 – MICROWAVE DOOR PARTS

Written by

Products

Position	Product
1	CAP, SCREW
2	FOAM, DOOR HANDLE
3	ASSEMBLY, INNER DOOR
4	SCREW (8BX3/8-NI)
5	BRACKET, BALANCING DOOR (BLACK MODEL ONLY)
6	ASSEMBLY, OUTER DOOR (BLACK)
6A	ASSEMBLY, OUTER DOOR (STAINLESS)
7A	ASSEMBLY, DOOR HANDLE (STAINLESS)
7	ASSEMBLY, DOOR HANDLE (BLACK)
8	ASSEMBLY, DOOR HANDLE (STAINLESS)
