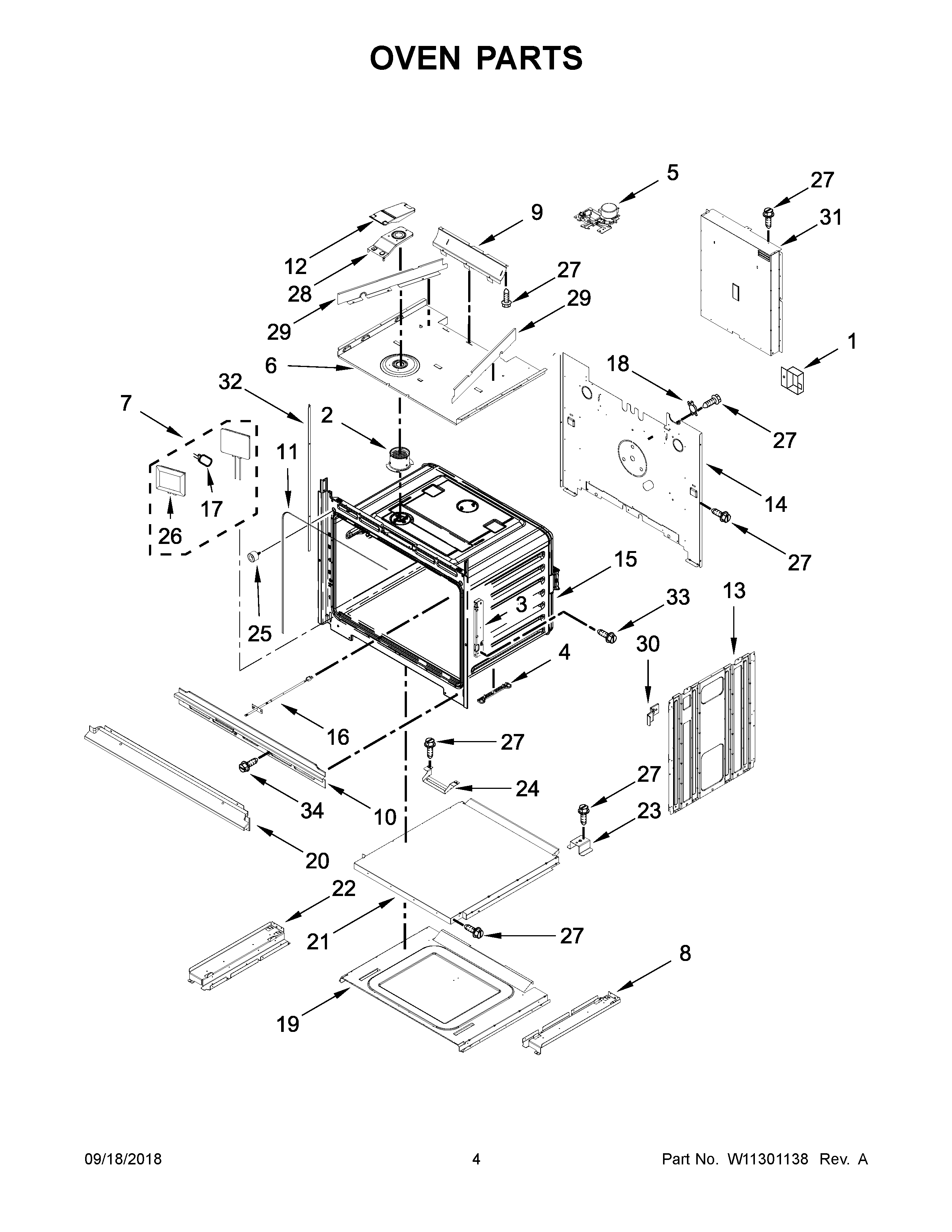

JMW2430DP03 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	MAY W10282944
1	MAY 8285593
2	TUBE, VENT
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	SUPPORT, BASE (RIGHT)
9	DEFLECTOR, BLOWER
10	VENT, CENTER 30"
11	GASKET
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
15	LINER (NOT A SERVICEABLE PART)
16	MAY W10622170
17	BULB, LIGHT
18	THERMOSTAT
19	BASE, CHASSIS
20	MAY W10351275
20A	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	SUPPORT, BASE (LEFT)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	LENS, LIGHT
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	DEFLECTOR, CHASSIS
30	MAY W10347649
31	COVER, COMBO CHASSIS BACK DUCT (WITH HOLE)
32	TRIM, SIDE (BLACK (LEFT))
32A	TRIM, SIDE (BLACK (RIGHT))
33	MAY W10254050
34	MAY 7101P427-60
