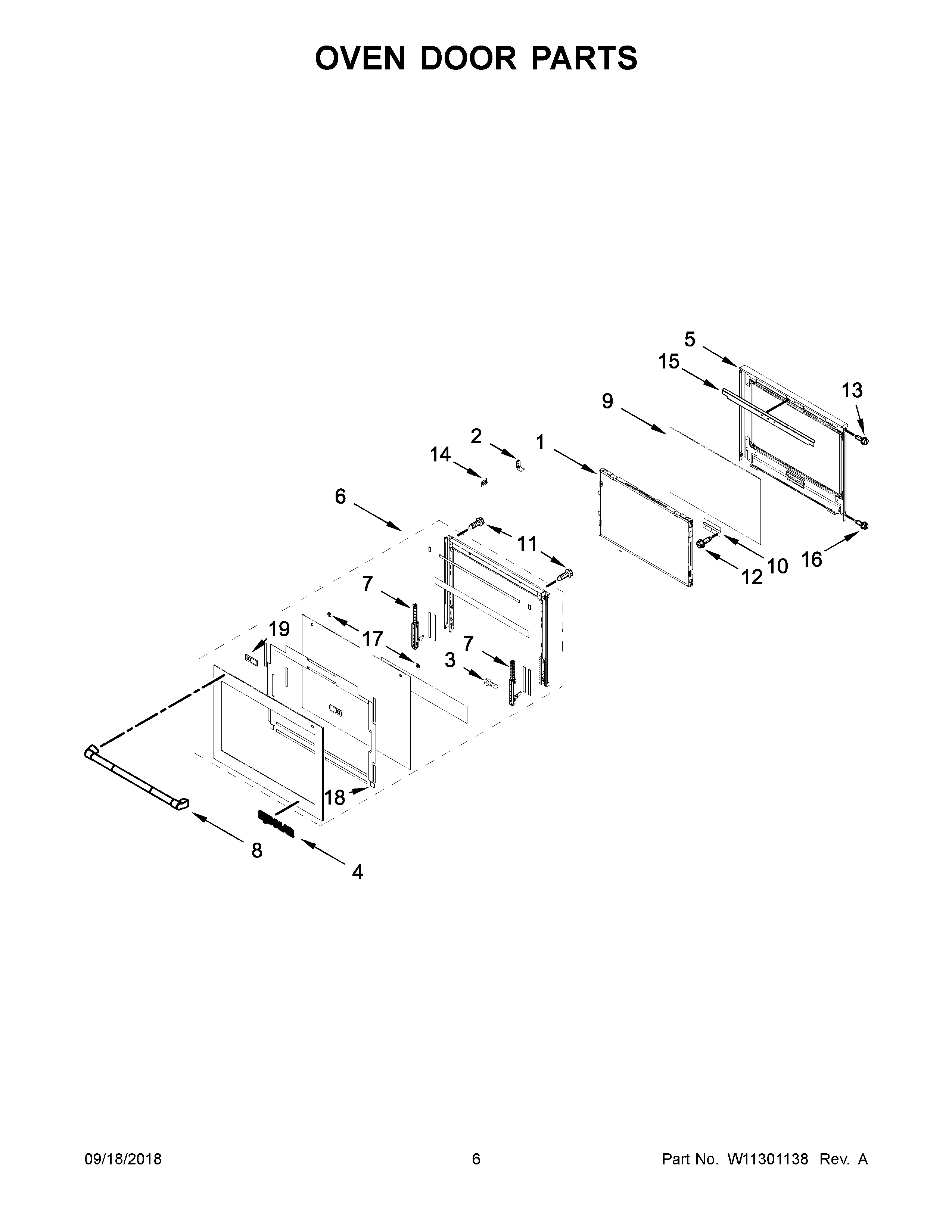

JMW2430DP03 04 – OVEN DOOR PARTS

Products

Position	Product
1	MAY W10347596
2	MAY W10284285
3	SCREW
4	MAY W10159578
5	MAY W10709147
6	ASSEMBLY, DOOR (STAINLESS)
7	MAY W10639069
8	ASSEMBLY, DOOR HANDLE (STAINLESS)
9	GLASS, INNER
10	MAY W10284297
11	MAY W10530626
12	MAY 7101P426- 60
13	SCREW WITH WASHER
14	MAY W10653954
15	SHIELD, DOOR LINER
16	MAY 7101P635-60
17	WASHER, DOOR
18	SPACER, VENT
19	SPACER, HANDLE
