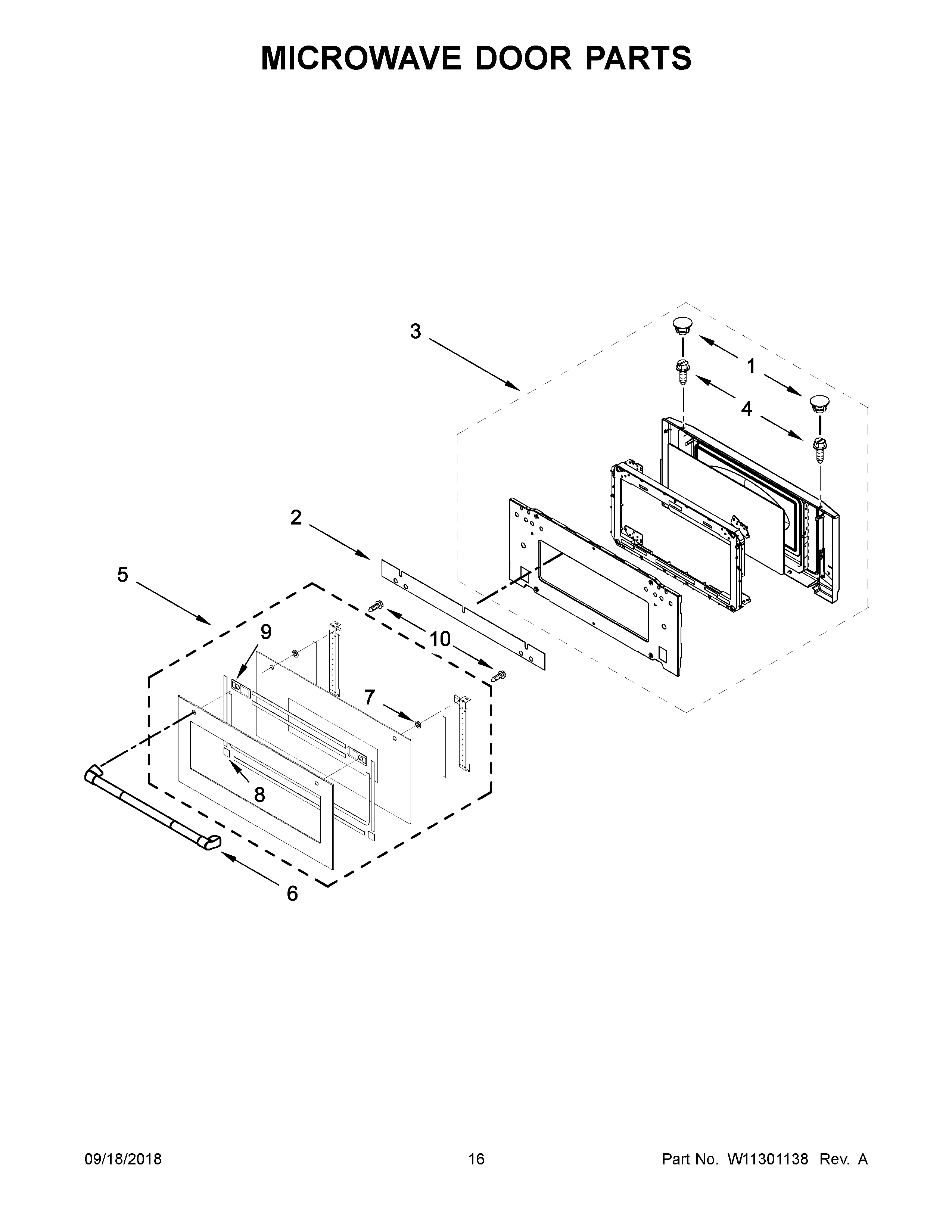

JMW2430DP03 09 – MICROWAVE DOOR PARTS

Written by

Products

Position	Product
1	CAP, SCREW
2	FOAM, DOOR HANDLE
3	ASSEMBLY, INNER DOOR
4	SCREW (8BX3/8-NI)
5	ASSEMBLY, OUTER DOOR (STAINLESS)
6	ASSEMBLY, DOOR HANDLE (STAINLESS)
7	WASHER, DOOR
8	SPACER, VENT
9	SPACER, HANDLE
10	MAY W10530626
