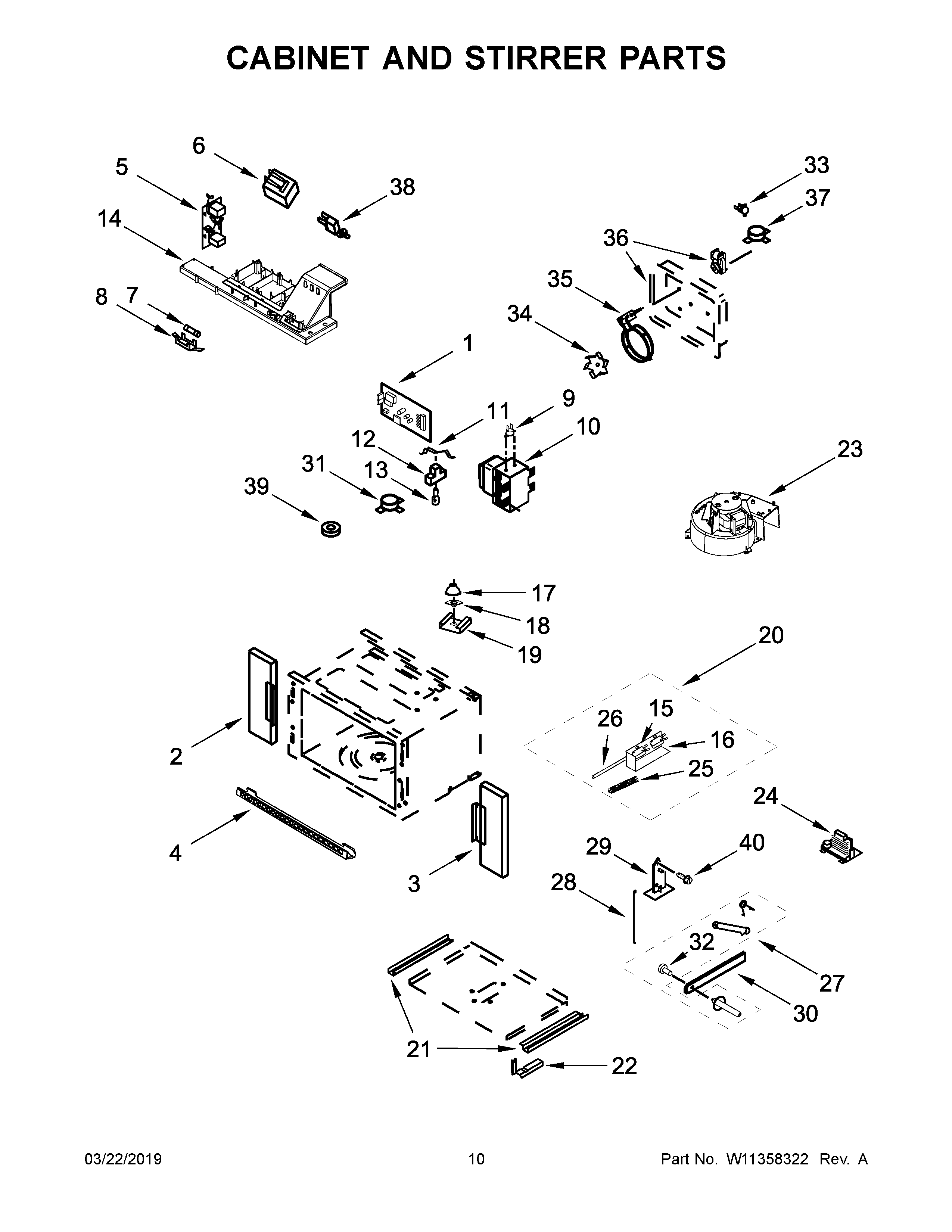

JMW2430DP04 06 – CABINET AND STIRRER PARTS

Products

Position	Product
1	MAY W11289988
2	TRIM, SIDE (LEFT)
3	TRIM, SIDE (RIGHT)
4	VENT, TOP MICROWAVE
5	FILTER, NOISE
6	TRANSFORMER, LIGHT (20V)
7	FUSE
8	BLOCK, FUSE
9	THERMOSTAT, MAGNETRON
10	MAY W11226473
11	SPRING, LAMP
12	HOLDER, LAMP
13	LAMP, HALOGEN
14	DUCT, MAGNETRON
15	SWITCH
16	HOLDER, SWITCH
17	REFLECTOR
18	LENS, LAMP
19	CLIP, SPRING
20	HARNESS, INTERLOCK
21	SUPPORT, BOTTOM
22	MAY 461968979601
23	MAY W11131760
24	MAY W11237240
25	SPRING, RELEASE ROD
26	ROD, RELEASE
27	ASSEMBLY, SLIDING ARM
28	SPRING, TORSION
29	SUPPORT
30	ARM, SLIDING
31	SENSOR, HUMIDITY
32	BUSHING
33	SENSOR, CONVECTION
34	FAN, CONVECTION
35	HEATER, CONVECTION ELEMENT
36	MOTOR, CONVECTION FAN
37	SENSOR, TERMPERATURE
38	THERMOACTUATOR
39	SEALING, LAMP
40	SCREW
