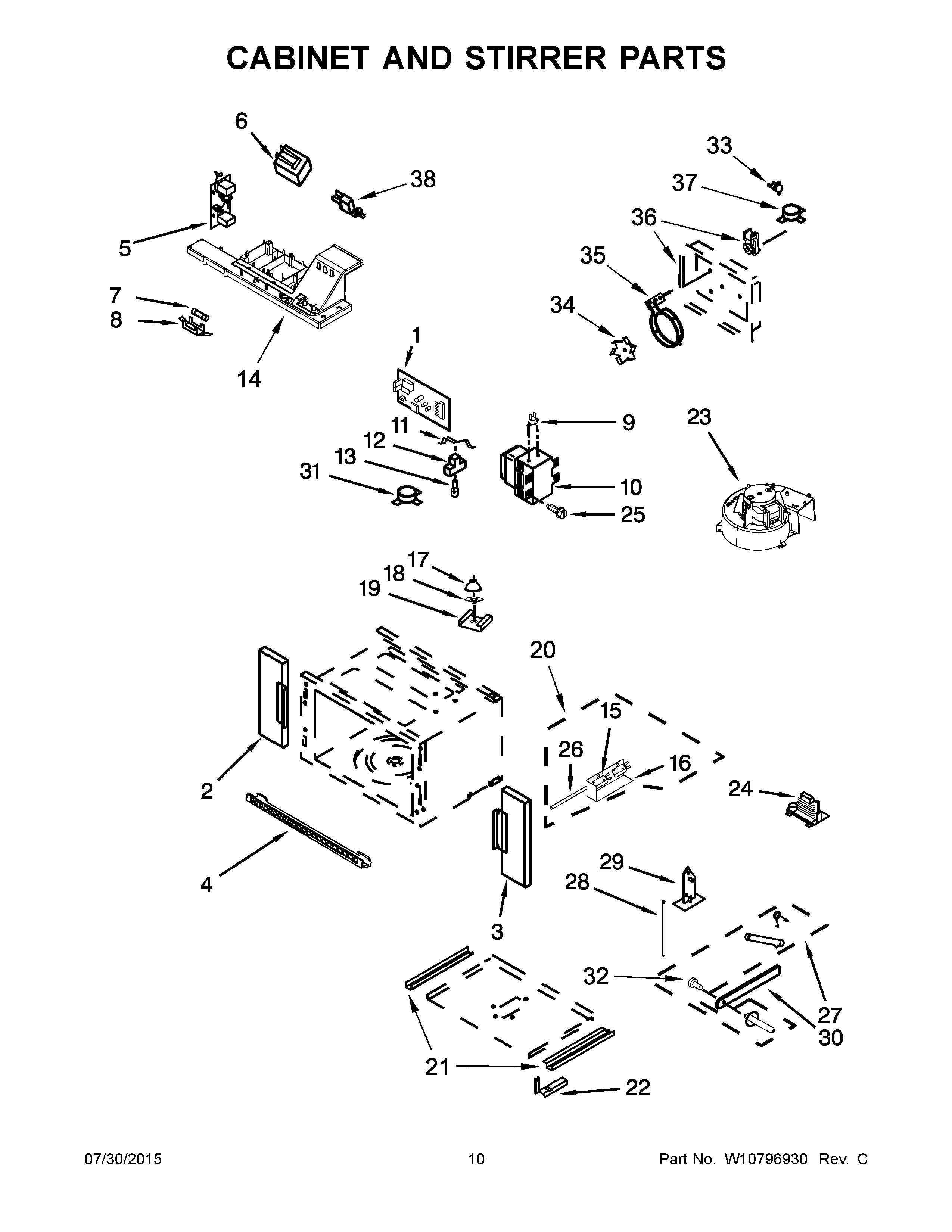

JMW2430DS00 06 – CABINET AND STIRRER PARTS

Products

Position	Product
1	MAY W10711277
2	TRIM, SIDE (LEFT)
3	MAY W10367739
4	VENT, TOP MICROWAVE
5	FILTER, NOISE
6	TRANSFORMER, LIGHT (20V)
7	FUSE
8	BLOCK, FUSE
9	THERMOSTAT, MAGNETRON
10	MAY 461967847321
11	SPRING, LAMP
12	HOLDER, LAMP
13	LAMP, HALOGEN
14	DUCT, MAGNETRON
15	SWITCH
16	HOLDER, SWITCH
17	REFLECTOR
18	LENS, LAMP
19	CLIP, SPRING
20	MAY W10371813
21	SUPPORT
22	MAY 461968979601
23	MAY 461968969271
24	MAY W10468206
25	MAY W10130890
26	ROD, RELEASE
27	ASSEMBLY, SLIDING ARM
28	SPRING, TORSION
29	SUPPORT
30	ARM, SLIDING
31	SENSOR, HUMIDITY
32	BUSHING
33	SENSOR, CONVECTION
34	FAN, CONVECTION
35	HEATER, CONVECTION ELEMENT
36	MAY 461969000371
37	SENSOR, TERMPERATURE
38	THERMOACTUATOR
