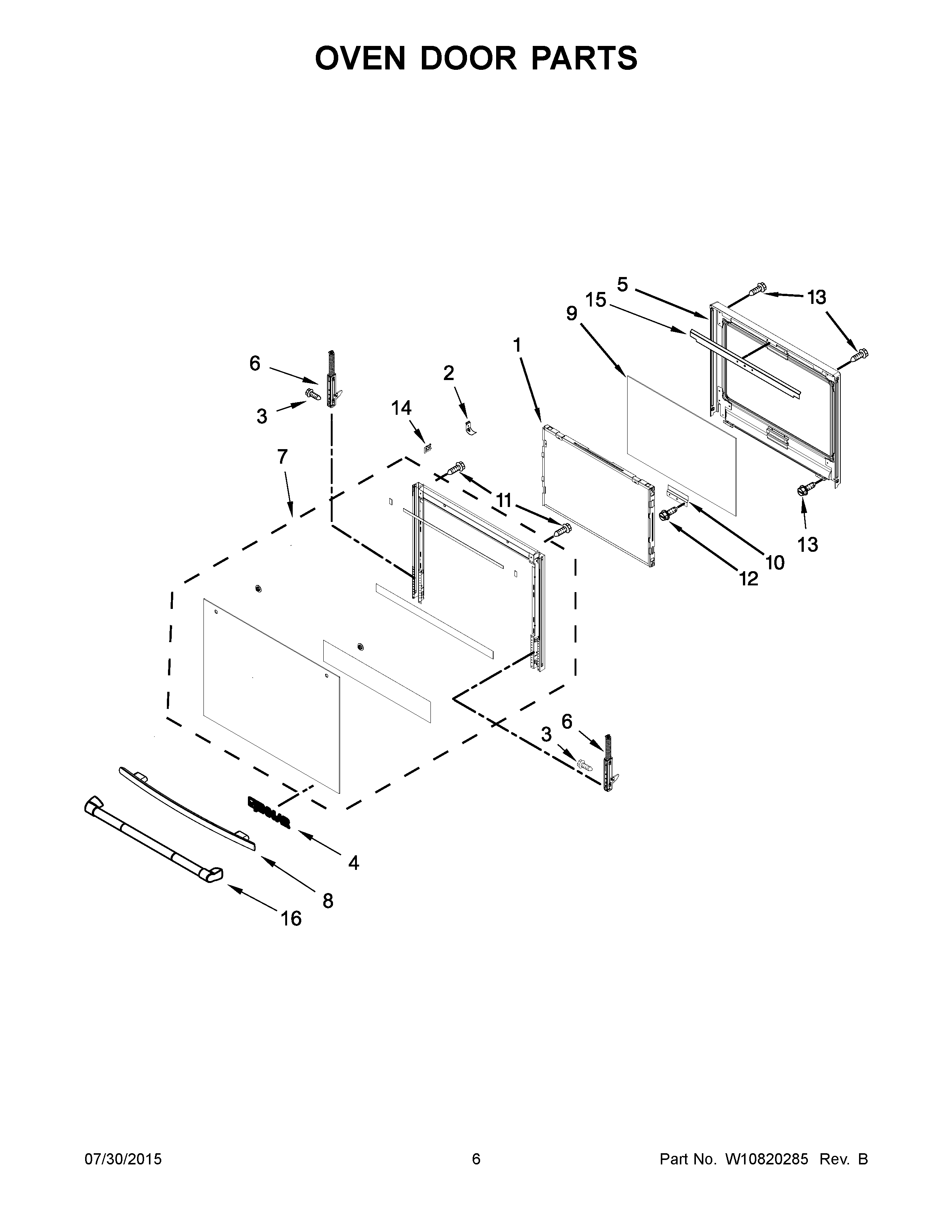

JMW2430DS01 04 – OVEN DOOR PARTS

Products

Position	Product
1	MAY W10347596
2	MAY W10284285
3	SCREW
4	ASSEMBLY, BADGE (BLACK)
4A	ASSEMBLY, BADGE (STAINLESS)
4B	MAY W10159578
5	MAY W10709147
6	MAY W10639067
6A	MAY W10639069
7A	ASSEMBLY, DOOR (STAINLESS)
7	MAY W10725069
8	ASSEMBLY, DOOR HANDLE (BLACK)
8A	ASSEMBLY, DOOR HANDLE (STAINLESS)
9	GLASS, INNER
10	MAY W10284297
11	SCREW
12	MAY 7101P426- 60
13	Screw (2) (Black)
14	MAY W10653954
15	SHIELD, DOOR LINER
16	ASSEMBLY, DOOR HANDLE (STAINLESS)
