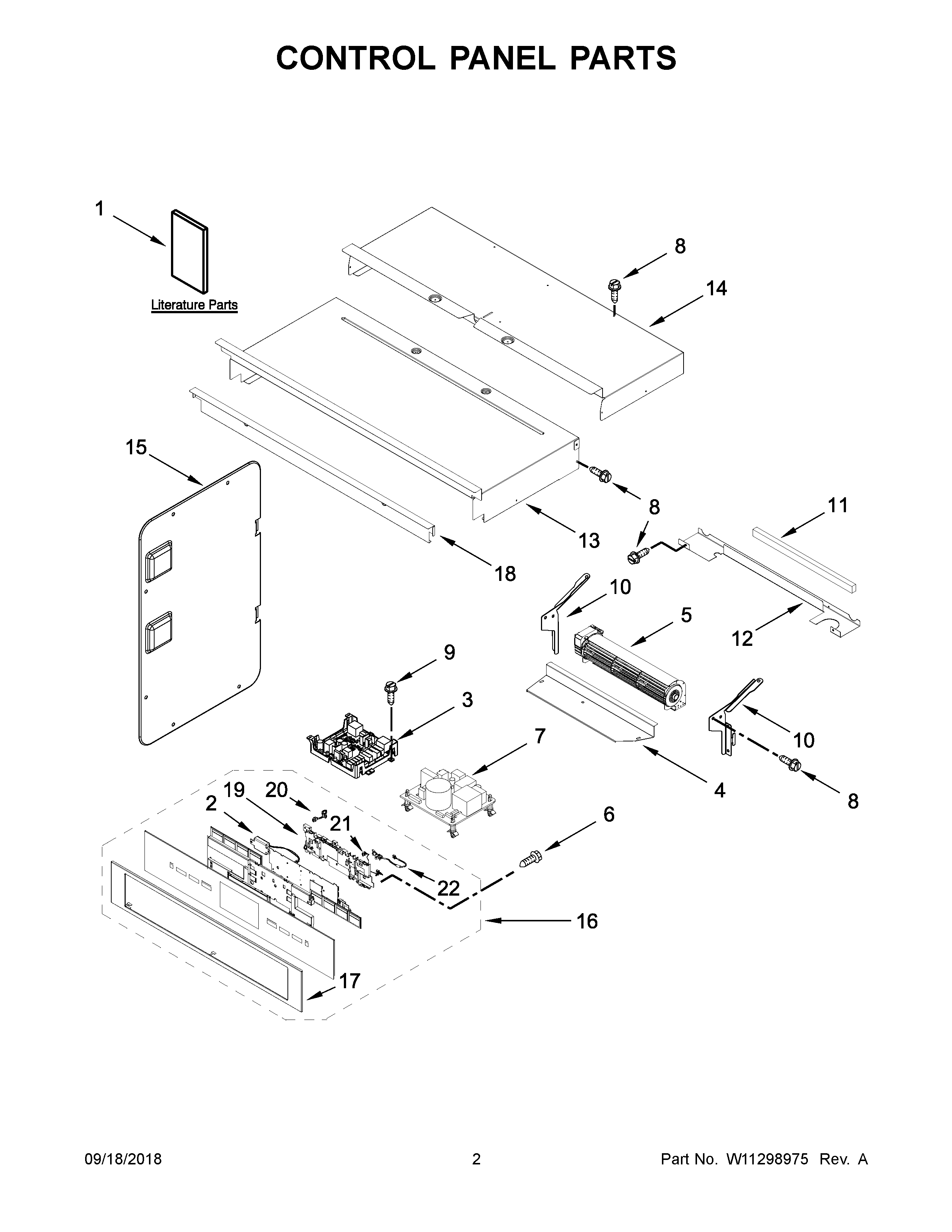

JMW2430DS03 02 – CONTROL PANEL PARTSadmin2025-04-26T09:43:51+00:00JMW2430DS03 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | JUMPER HARNESS, COMMUNICATION |
| NI | HARNESS, DOOR LATCH |
| NI | HARNESS, CABLE TREE ASSEMBLY |
| NI | BAG, HARDWARE |
| NI | STRAP, GROUND |
| NI | HARNESS, FAN & TURNTABLE |
| NI | HARNESS, INVERTER |
| NI | HARNESS, SIGNAL |
| NI | HARNESS, MAIN |
| NI | HARNESS, COMMUNICATION |
| NI | CLAMP, CONDUIT |
| NI | MAY 4450800 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | CLIP, HARNESS |
| 1 | GUIDE, USE & CARE |
| 1D | SHEET, TECH (ENGLISH/FRENCH) |
| 1C | SHEET, TECH (ENGLISH) |
| 1A | GUIDE, USE & CARE (MICROWAVE) |
| 1B | INSTRUCTIONS, INSTALLATION |
| 2 | ASSEMBLY, SPEAKER |
| 3 | CONTROL (WITH POWER SUPPLY) |
| 4 | COVER, COMBO BLOWER |
| 5 | BLOWER |
| 6 | MAY W10489172 |
| 7 | BOARD, POWER SUPPLY |
| 8 | MAY 7101P426- 60 |
| 9 | MAY 7101P434-60 |
| 10 | BRACKET, BLOWER (LEFT) |
| 10A | BRACKET, BLOWER (RIGHT) |
| 11 | BLOCK, FOAM |
| 12 | CHASSIS, BACK DIVIDER |
| 13 | CHASSIS, COVER TOP FRONT 30" |
| 14 | CHASSIS, COVER TOP BACK 30" |
| 15 | CHASSIS, COMBO SIDE |
| 16 | ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK) |
| 16A | ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS) |
| 17 | SKIN, CONTROL PANEL (STAINLESS) |
| 18 | COVER, 30" COMPLIMENT |
| 19 | HOUSING |
| 20 | HARNESS, KEYPAD (LEFT TO CENTER) |
| 21 | HARNESS, KEYPAD (RIGHT TO CENTER) |
| 22 | JUMPER HARNESS, POWER SUPPLY |
