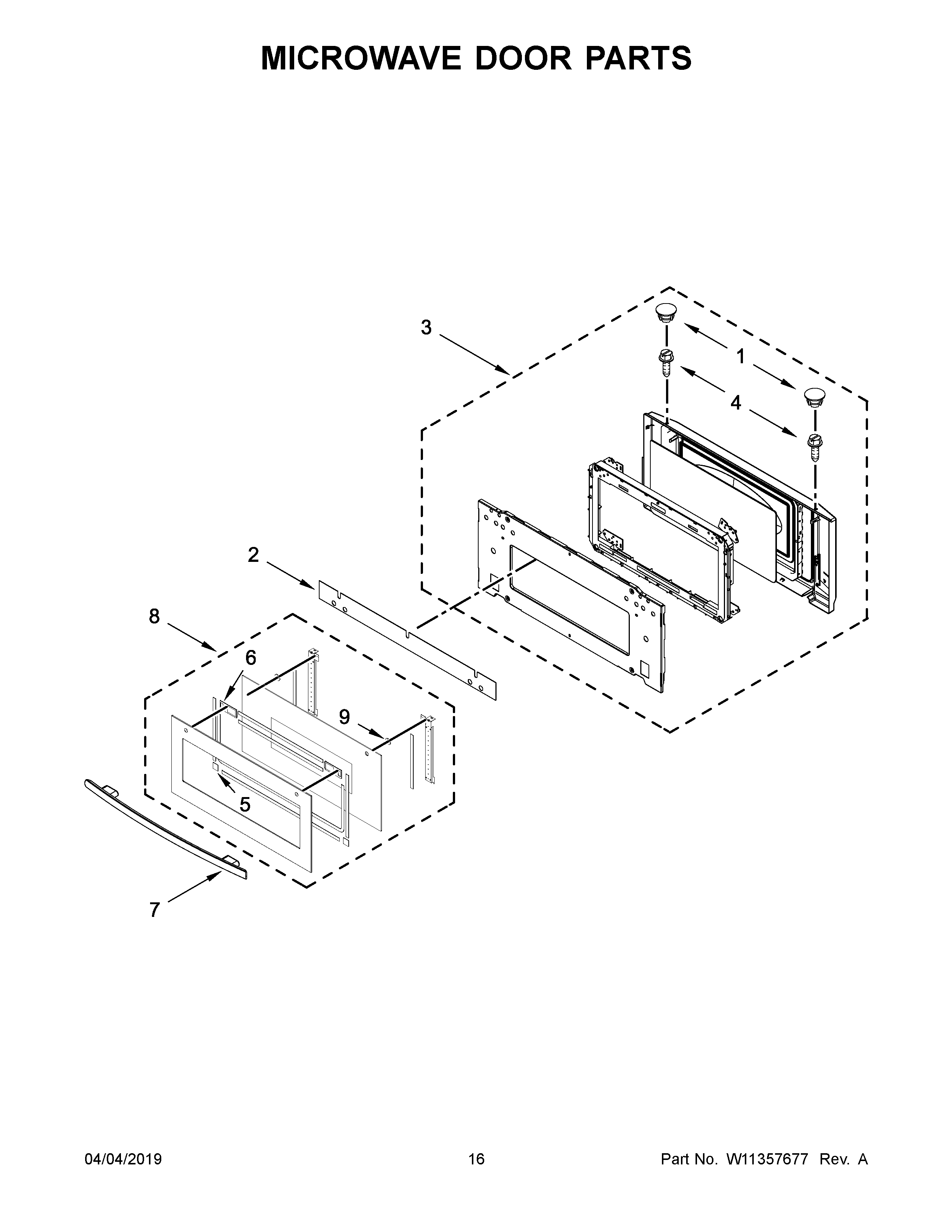

JMW2430DS04 09 – MICROWAVE DOOR PARTS

Written by

Products

Position	Product
1	CAP, SCREW
2	FOAM, DOOR HANDLE
3	ASSEMBLY, INNER DOOR
4	SCREW (8BX3/8-NI)
5	SPACER, VENT
6	SPACER, HANDLE
7	ASSEMBLY, DOOR HANDLE (STAINLESS)
8	ASSEMBLY, OUTER DOOR (STAINLESS)
9	WASHER, DOOR
