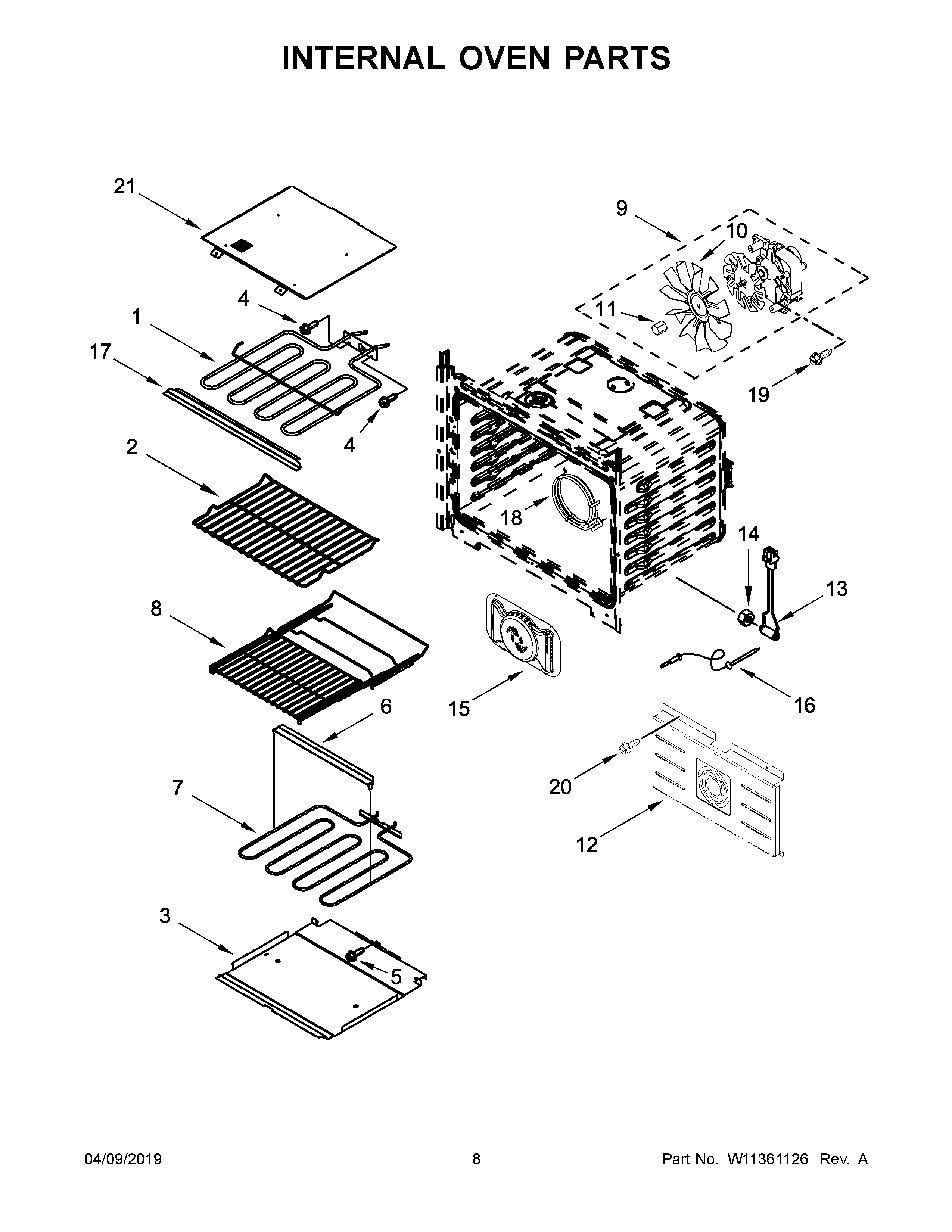

JMW2430IL01 05 – INTERNAL OVEN PARTS

JMW2430IL01 05 – INTERNAL OVEN PARTS

Written by

in

JMW2430IL01 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	RACK, OVEN
3	TRAY, HIDDEN BAKE
4	MAY 7101P434-60
5	MAY 7101P426- 60
6	CROSSBAR, HIDDEN BAKE TRAY
7	MAY W10546517
8	RACK, SLIDING
9	MAY W10722667
10	MAY W10631503
11	MAY W10631504
12	COVER, BAFFLE
13	JACK, MEAT PROBE
14	NUT, LOCKING
15	BAFFLE, BOW TIE
16	PROBE-MEAT
17	SHIELD, BROIL FRONT
18	ELEMENT, CONVECTION
19	SCREW
20	SCREW
21	SHIELD, BROIL ELEMENT
