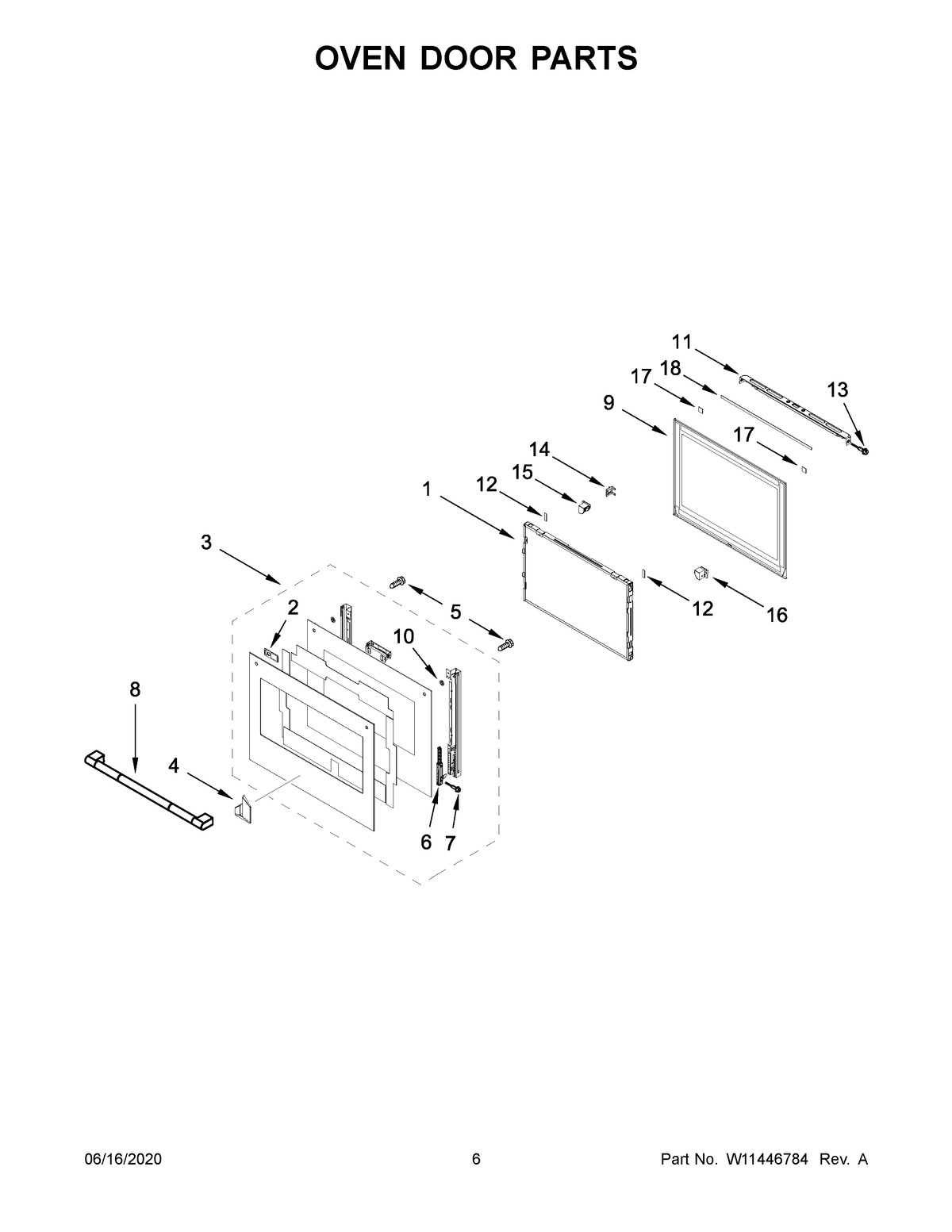

JMW2430IL03 04 – OVEN DOOR PARTS

Products

PositionProduct
1ASSEMBLY, WINDOW PACK
2SPACER, HANDLE
3ASSEMBLY, DOOR (STAINLESS)
4NAMEPLATE (STAINLESS)
5SCREW
6HINGE, DOOR
7SCREW
8ASSEMBLY, HANDLE (STAINLESS)
9ASSEMBLY, GLASS CAVITY
10WASHER, DOOR
11VENT, TOP METAL
12SPACER
13SCREW WITH WASHER
14CLIP, SPRING
15BRACKET, DOOR (LEFT)
16BRACKET, DOOR (RIGHT)
17SPACER, VENT
18PAD, VENT
