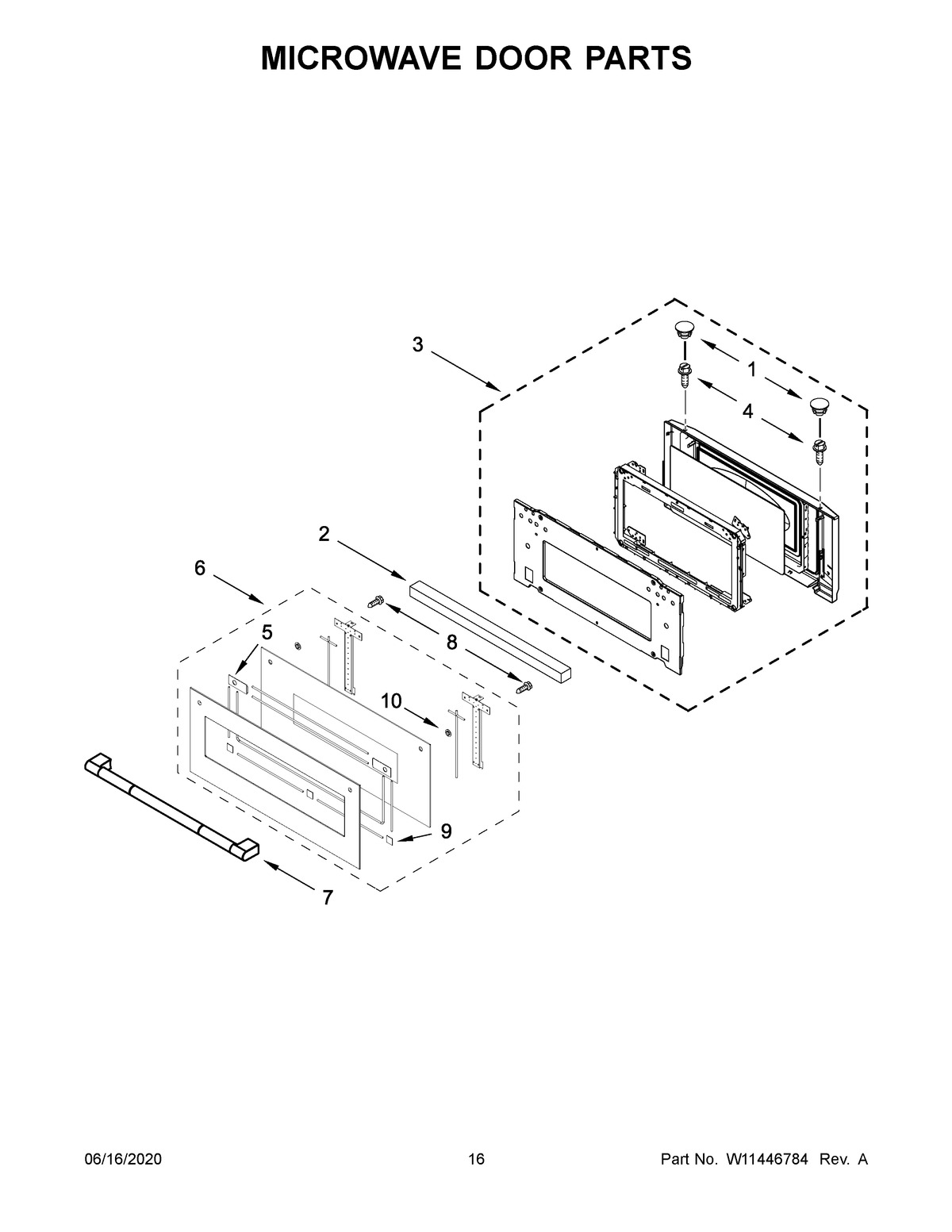

JMW2430IL03 09 – MICROWAVE DOOR PARTS

Products

PositionProduct
1CAP, SCREW
2FOAM, DOOR HANDLE
3ASSEMBLY, INNER DOOR
4SCREW (8BX3/8-NI)
5SPACER, HANDLE
6MAY W11200398
7ASSEMBLY, HANDLE (STAINLESS)
8SCREW
9SPACER, VENT
10WASHER, DOOR
