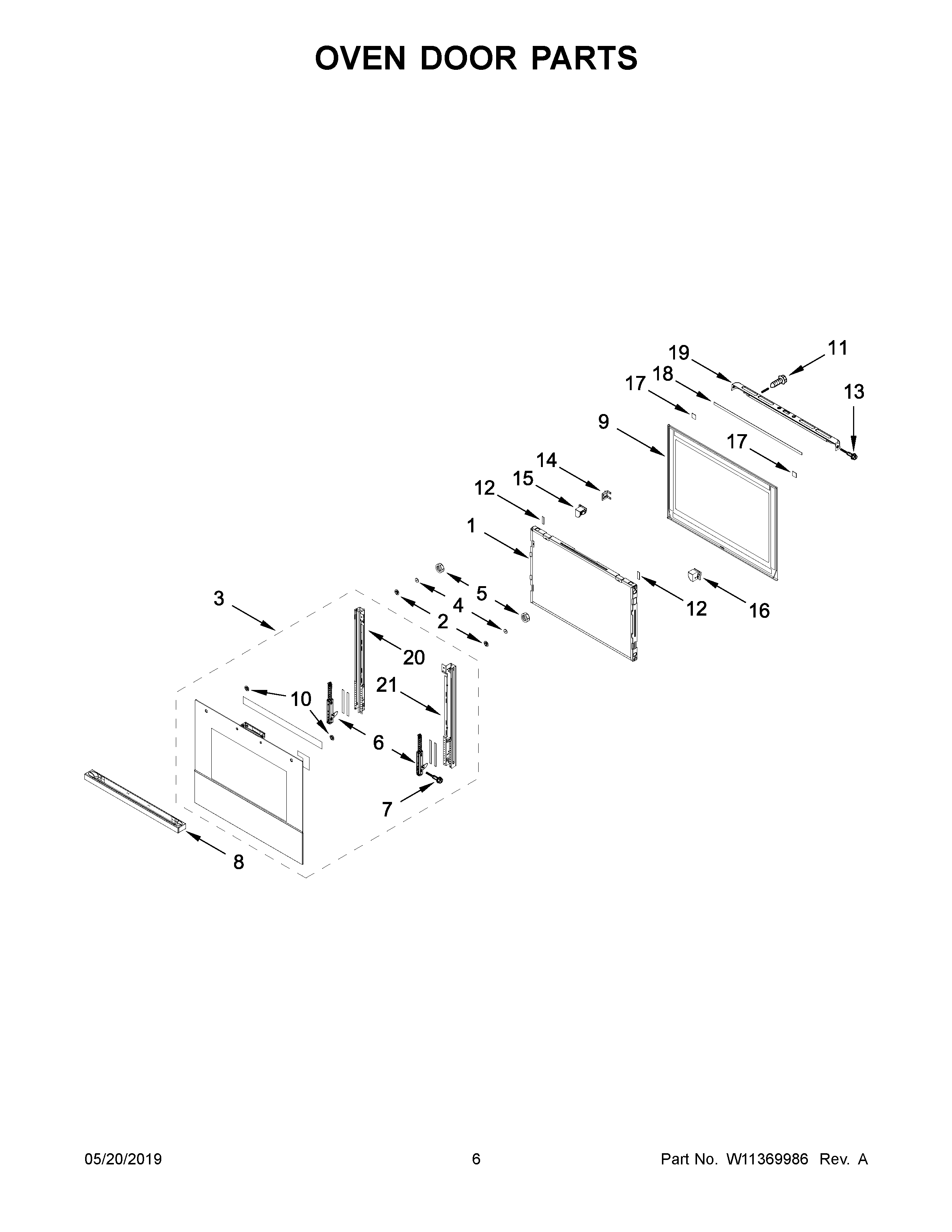

JMW2430IM02 04 – OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	MAY W11132942
3	MAY W11213907
4	WASHER
5	NUT
6	HINGE, DOOR
7	SCREW
8	MAY W11250935
9	ASSEMBLY, GLASS CAVITY
10	WASHER, DOOR
11	MAY 7101P427-60
12	SPACER
13	SCREW WITH WASHER
14	CLIP, SPRING
15	BRACKET, DOOR (LEFT)
16	BRACKET, DOOR (RIGHT)
17	SPACER, VENT
18	PAD, VENT
19	VENT, TOP METAL
20	RAIL, DOOR SIDE (LEFT)
21	RAIL, DOOR SIDE (RIGHT)
