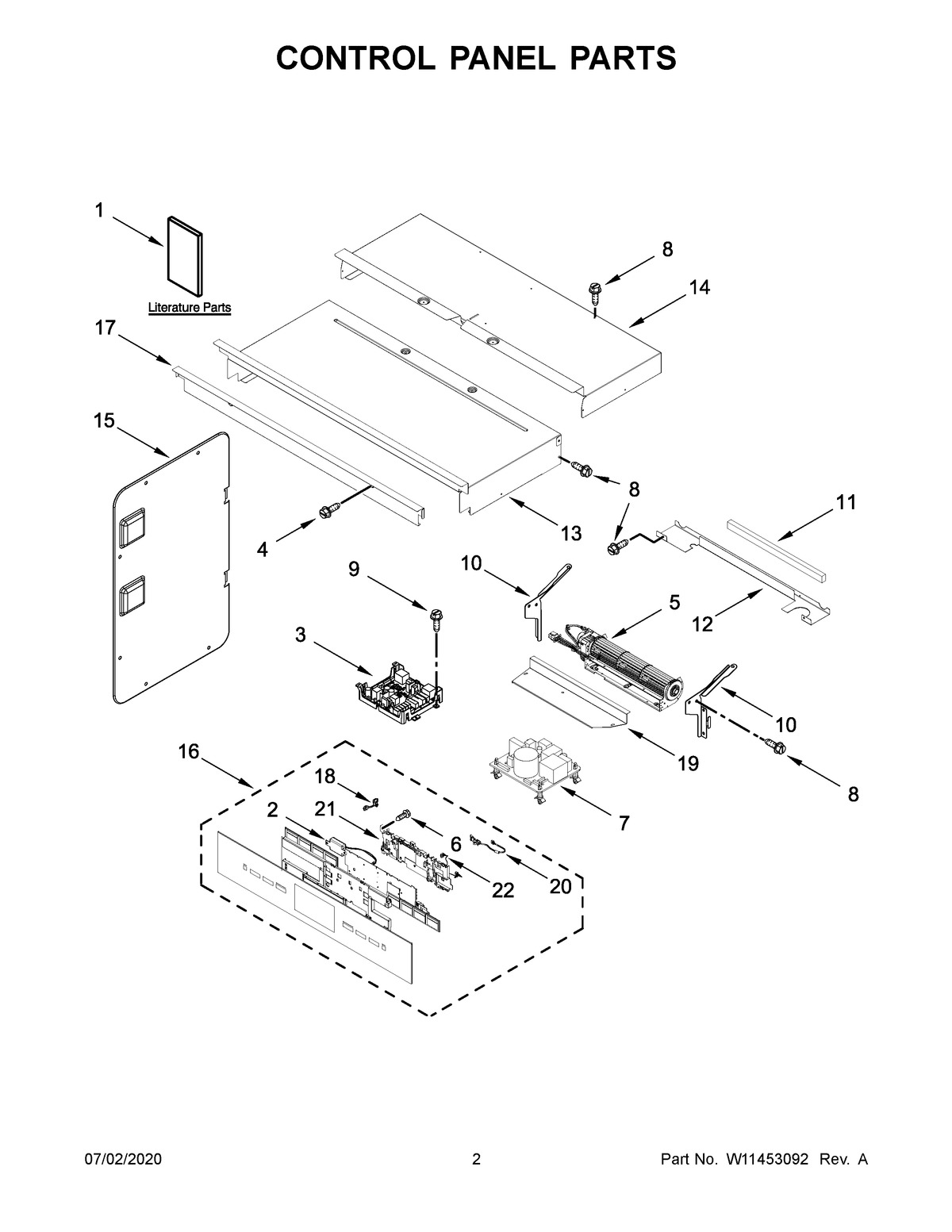

JMW2430IM03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, INVERTER
NIJUMPER HARNESS, COMMUNICATION
NIMAY W11216660
NIMAY W11216677
NIMAY W11218145
NICLAMP, CONDUIT
NIHARNESS, DOOR LATCH
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, CABLE TREE ASSEMBLY
NISTRAP, GROUND
NIMAY 4450800
NIHARNESS, FAN AND TURNTABLE
1AMAY W11235344
1BMAY W11235622
1CMAY W11284425
1GUIDE, USE & CARE (OVEN)
1DMAY W11235300
2ASSEMBLY, SPEAKER
3APPLIANCE MANAGER, COPERNICUS
4Screw (2) (Black)
5BLOWER
6MAY W10489172
7BOARD, POWER SUPPLY
8MAY 7101P426- 60
9MAY 7101P434-60
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP FRONT 30"
14CHASSIS, COVER TOP BACK 30"
15CHASSIS, COMBO SIDE
16MAY W11429015
17COVER, 30" COMPLIMENT
18HARNESS, KEYPAD (LEFT TO CENTER)
19COVER, COMBO BLOWER
20JUMPER HARNESS, POWER SUPPLY
21HOUSING
22HARNESS, KEYPAD (RIGHT TO CENTER)
