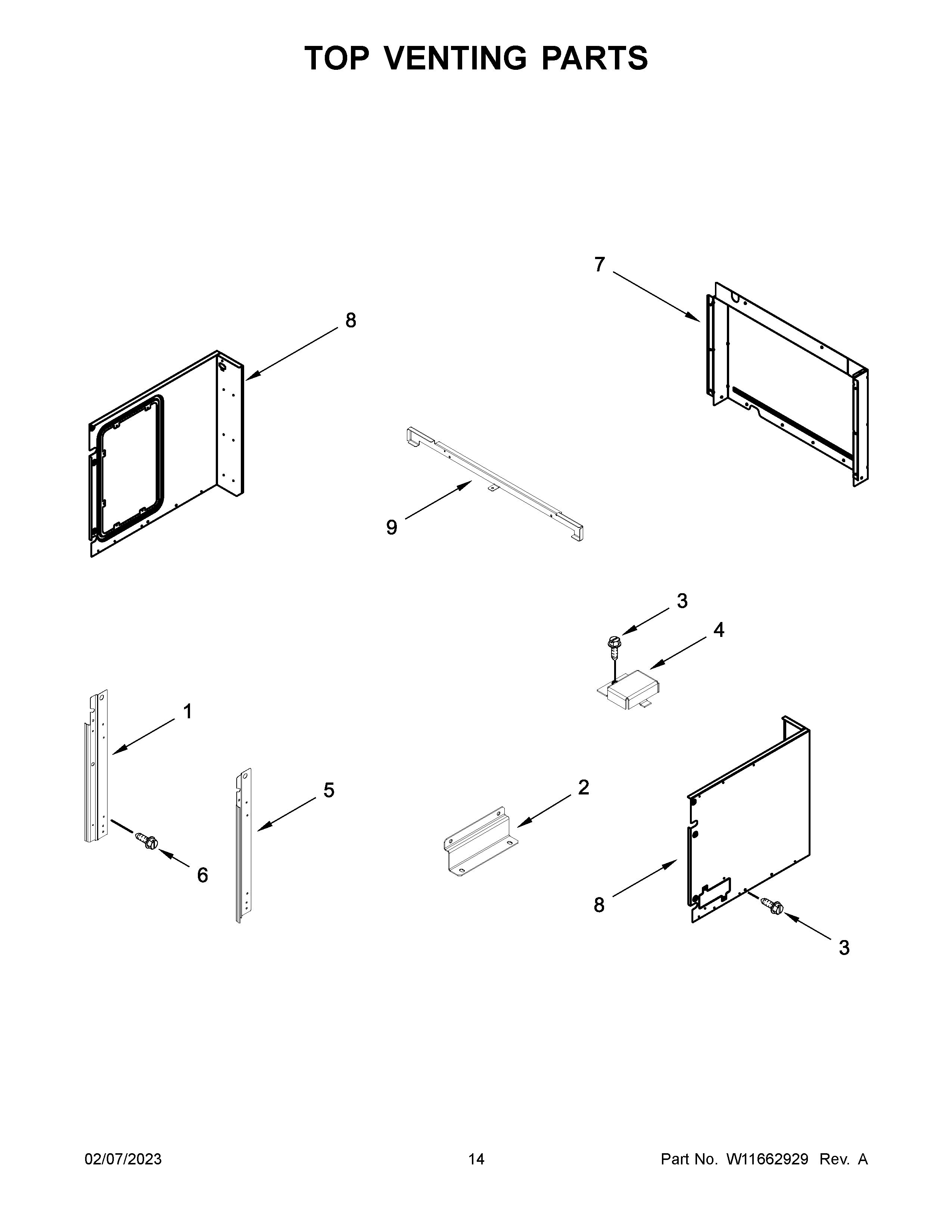

JMW2430LL02 08 – TOP VENTING PARTS

Written by

Products

Position	Product
1	W11627410 Whirlpool Mounting Rail
2	W10283024 Whirlpool Mounting Bracket
3	SCREW
4	8285593 Whirlpool Oven Wire Cover
5	W11627411 Whirlpool Mounting Rail
6	SCREW
7	COVER-REAR
8	SIDE, COMBO CHASSIS (LEFT)
8A	SIDE, COMBO CHASSIS (RIGHT)
9	W10283022 Whirlpool Support
