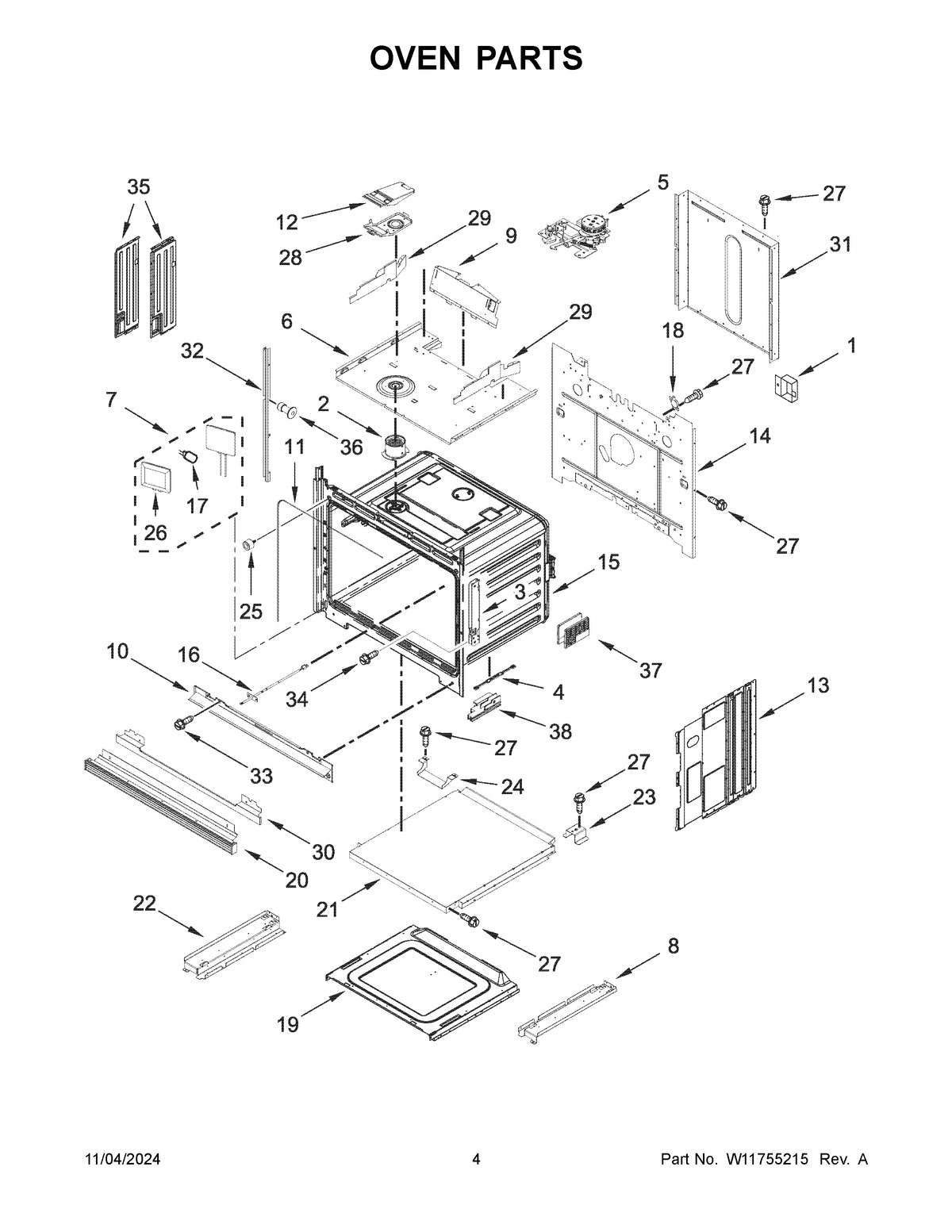

JMW2430LL04 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, CAVITY
NI	INSULATION (NOT ILLUSTRATED)
1	8285593 Whirlpool Oven Wire Cover
2	W11240525 Whirlpool Vent Tube
3	W11712405 Whirlpool Receiver Hinge
3A	W11712406 Whirlpool Receiver Hinge
4	W11598152 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W10283021 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	VENT-OVEN
11	W11692454 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
15	LINER, OVEN (NOT SERVICEABLE)
16	W11598120 Whirlpool Thermostat
17	WPW10472384 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11369889 Whirlpool Heat Deflector
21	COVR-ACESS
22	W10283020 Whirlpool Support
23	SUPPORT, AIR CHANNEL
24	SPACER, BOTTOM CHASSIS DUCT
25	W11598125 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	BASE, VENT EXHAUST
29	DEFLECTOR, CHASSIS (LEFT)
29A	DEFLECTOR, CHASSIS (RIGHT)
30	W11598135 Whirlpool Trim
31	W11134657 Whirlpool Rear Cover
32A	TRIM
32	TRIM
33	WPY706189 Whirlpool Stove Screw
34	WPW10254050 Whirlpool Screw
35A	W11598151 Whirlpool Side Cover
35	W11598150 Whirlpool Side Cover
36	RIVET (BLACK)
37	W11598170 Whirlpool Level Foot
38A	W11598168 Whirlpool Leveling Foot
38	W11598169 Whirlpool Foot Level Assembly
