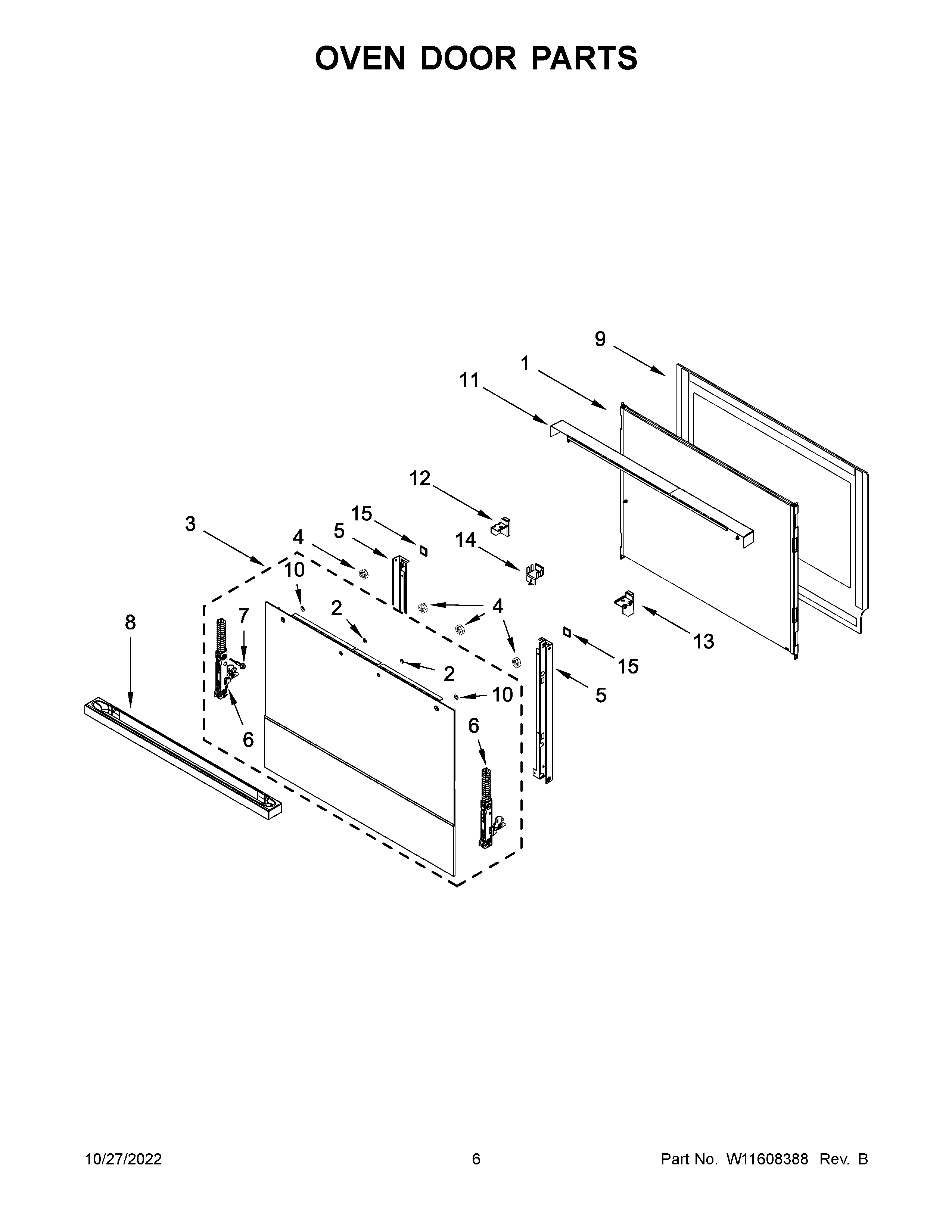

JMW2430LM00 04 – OVEN DOOR PARTS

Products

Position	Product
1	W11600213 Whirlpool Oven Door Glass
2	SPACER, HANDLE
3	W11602613 Whirlpool Door Glass
4	W11602632 Whirlpool Nut Assembly
5	W11598126 Whirlpool Support Bracket
5A	W11598127 Whirlpool Support Bracket
6	HINGE, DOOR (LEFT)
6A	HINGE, DOOR (RIGHT)
7	WP3196183 Whirlpool Screw
8	W11411894 Whirlpool Door Handle Assembly
9	W11602610 Whirlpool Oven Glass Door
10	W11676355 Whirlpool Washer
11	TRIM-VENT
12	W11598130 Whirlpool Oven Support Bracket
13	W11598128 Whirlpool Oven Support Bracket
14	W11598131 Whirlpool Oven Clip
15	WPW10517428 Whirlpool Spacer
