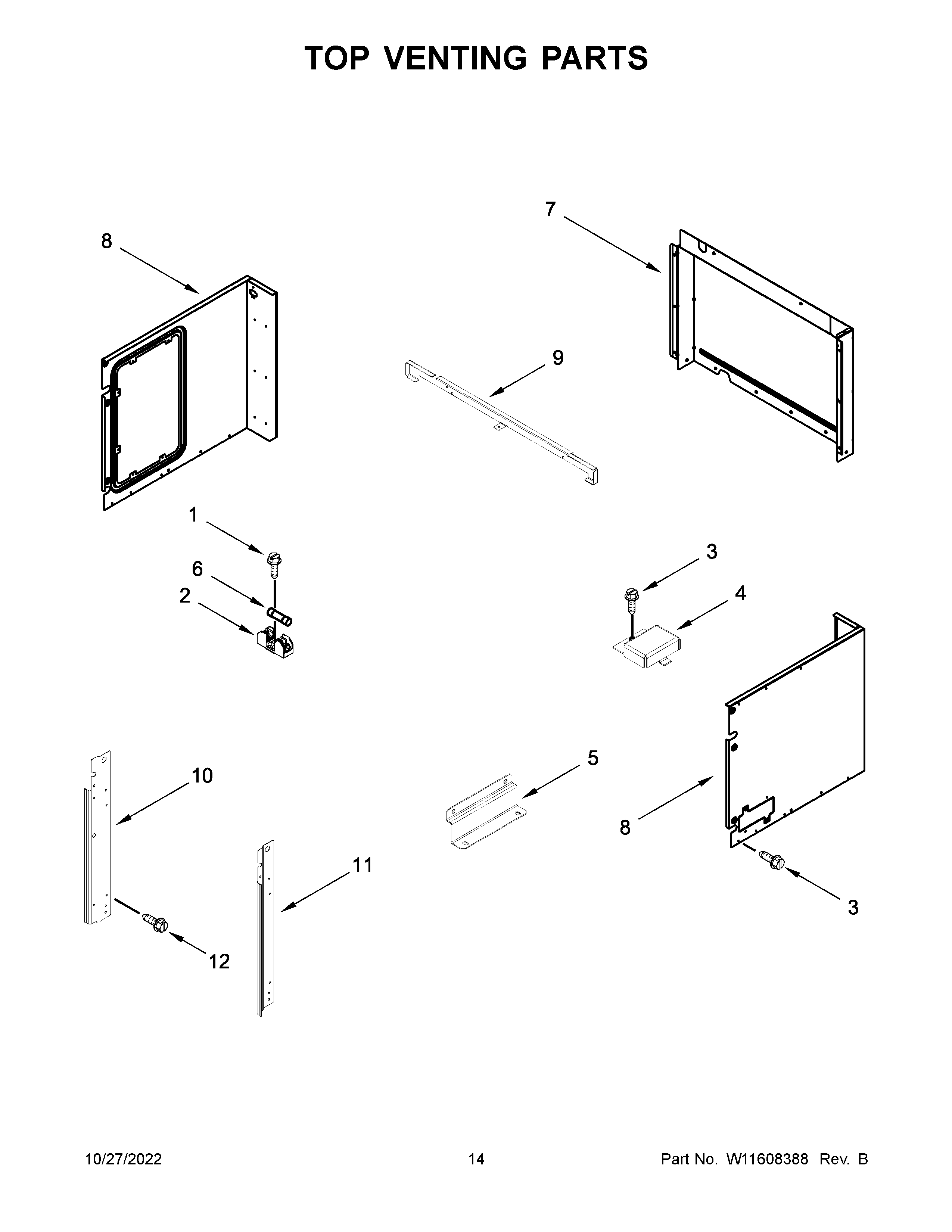

JMW2430LM00 08 – TOP VENTING PARTS

Written by

Products

Position	Product
1	SCREW
2	4454949 Whirlpool Oven Fuse Block
3	SCREW
4	8285593 Whirlpool Oven Wire Cover
5	W10283024 Whirlpool Mounting Bracket
6	WPW10017410 Whirlpool Fuse
7	COVER-REAR
8A	SIDE, COMBO CHASSIS (RIGHT)
8	SIDE, COMBO CHASSIS (LEFT)
9	W10283022 Whirlpool Support
10	W11627410 Whirlpool Mounting Rail
11	W11627411 Whirlpool Mounting Rail
12	SCREW
