JMW2430WB03 08 – MICROWAVE DOOR PARTS – Aparts

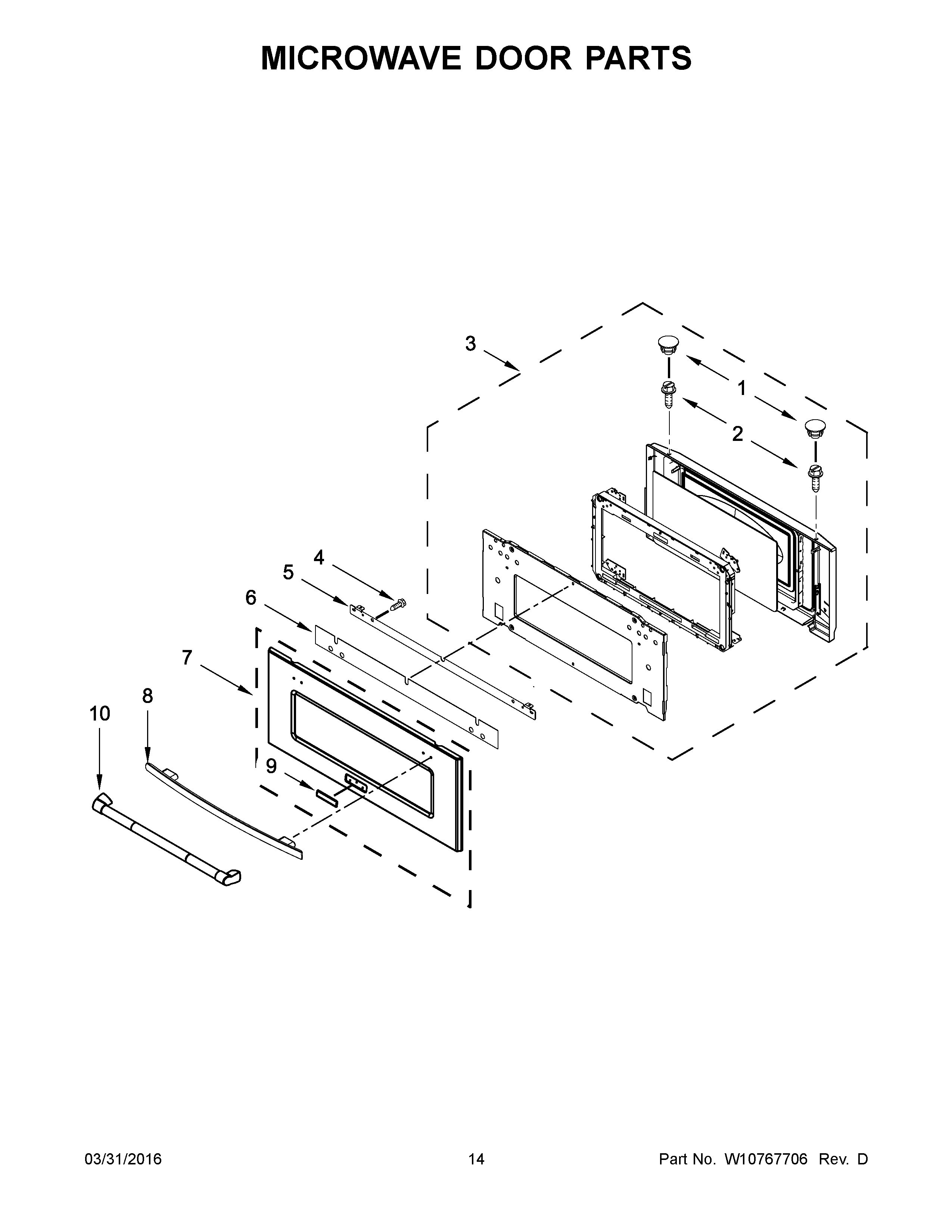

JMW2430WB03 08 – MICROWAVE DOOR PARTS

Products

Position	Product
1	CAP, SCREW
2	MAY 7101P426- 60
3	MAY W10737655
4	SCREW, HANDLE (STANDARD)
5	BRACKET, HANDLE
5A	MAY W10213720
6	MAY W10314607
7C	MAY W10269423
7A	MAY W10176200
7B	MAY W10269421
7	GLASS, ASSEMBLY (WHITE)
8	MAY W10186754
8B	MAY W10186756
8A	MAY W10186755
9C	MAY W10159578
9B	ASSEMBLY, BADGE (STAINLESS)
9A	ASSEMBLY, BADGE (BLACK)
9	ASSEMBLY, BADGE (WHITE)
10	HANDLE, DOOR
