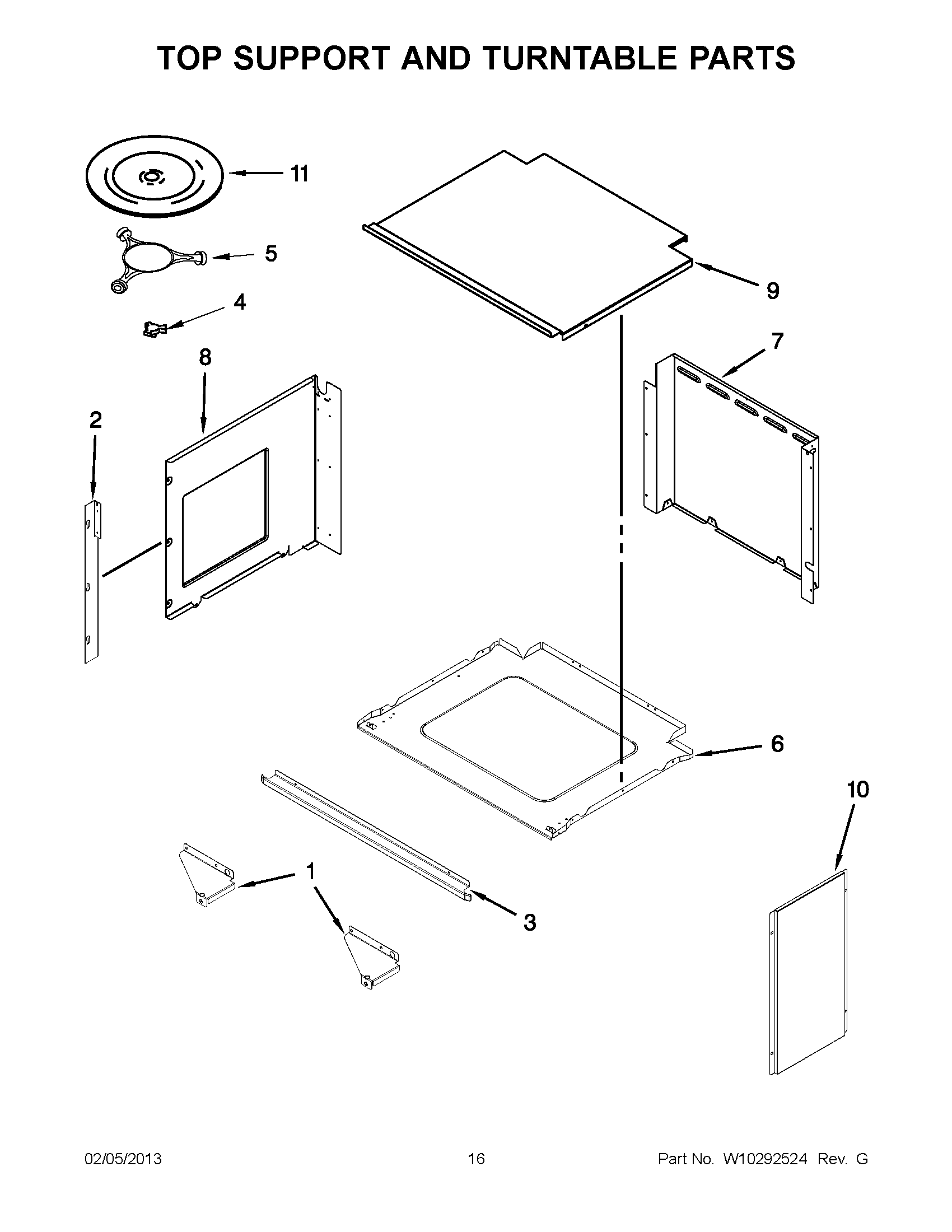

JMW2430WP00 08 – TOP SUPPORT AND TURNTABLE PARTS

Written by

Products

Position	Product
1	BRACKET, LOWER (RIGHT)
1	BRACKET, LOWER (LEFT)
2	MAY W10277588
3	MAY W10176036
3	TRIM, BOTTOM VENT (BLACK/OILED BRONZE)
4	DRIVE, TT
5	MAY 8205678
6	MAY W10176063
7	MAY W10186984
8	MAY W10176065
8	MAY W10176064
9	MAY W10175998
10	MAY W10176066
11	MAY 4455915
