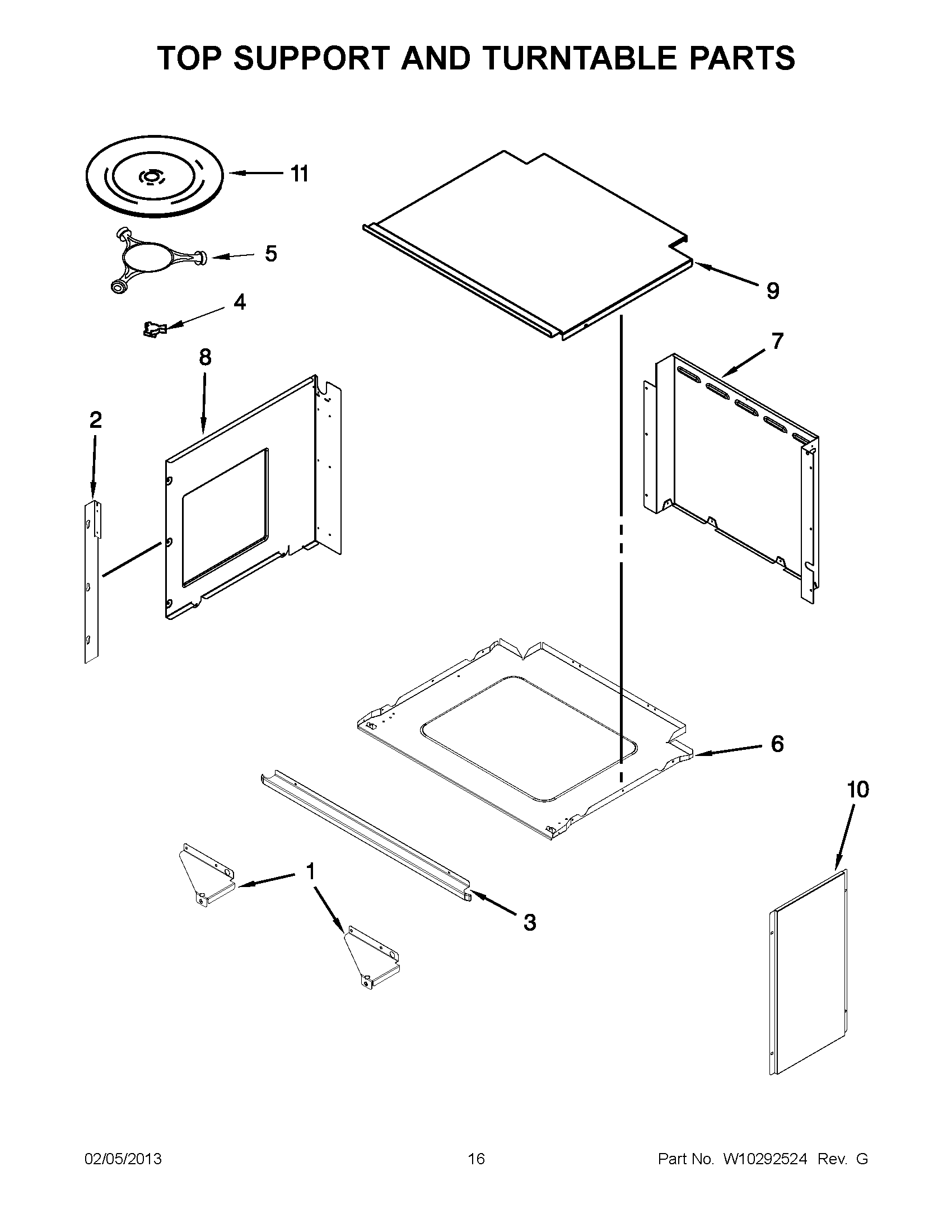

JMW2430WR00 08 – TOP SUPPORT AND TURNTABLE PARTS

JMW2430WR00 08 – TOP SUPPORT AND TURNTABLE PARTS

Written by

in

JMW2430WR00 08 – TOP SUPPORT AND TURNTABLE PARTS

Products

PositionProduct
1BRACKET, LOWER (RIGHT)
1BRACKET, LOWER (LEFT)
2MAY W10277588
3MAY W10176036
3TRIM, BOTTOM VENT (BLACK/OILED BRONZE)
4DRIVE, TT
5MAY 8205678
6MAY W10176063
7MAY W10186984
8MAY W10176065
8MAY W10176064
9MAY W10175998
10MAY W10176066
11MAY 4455915
