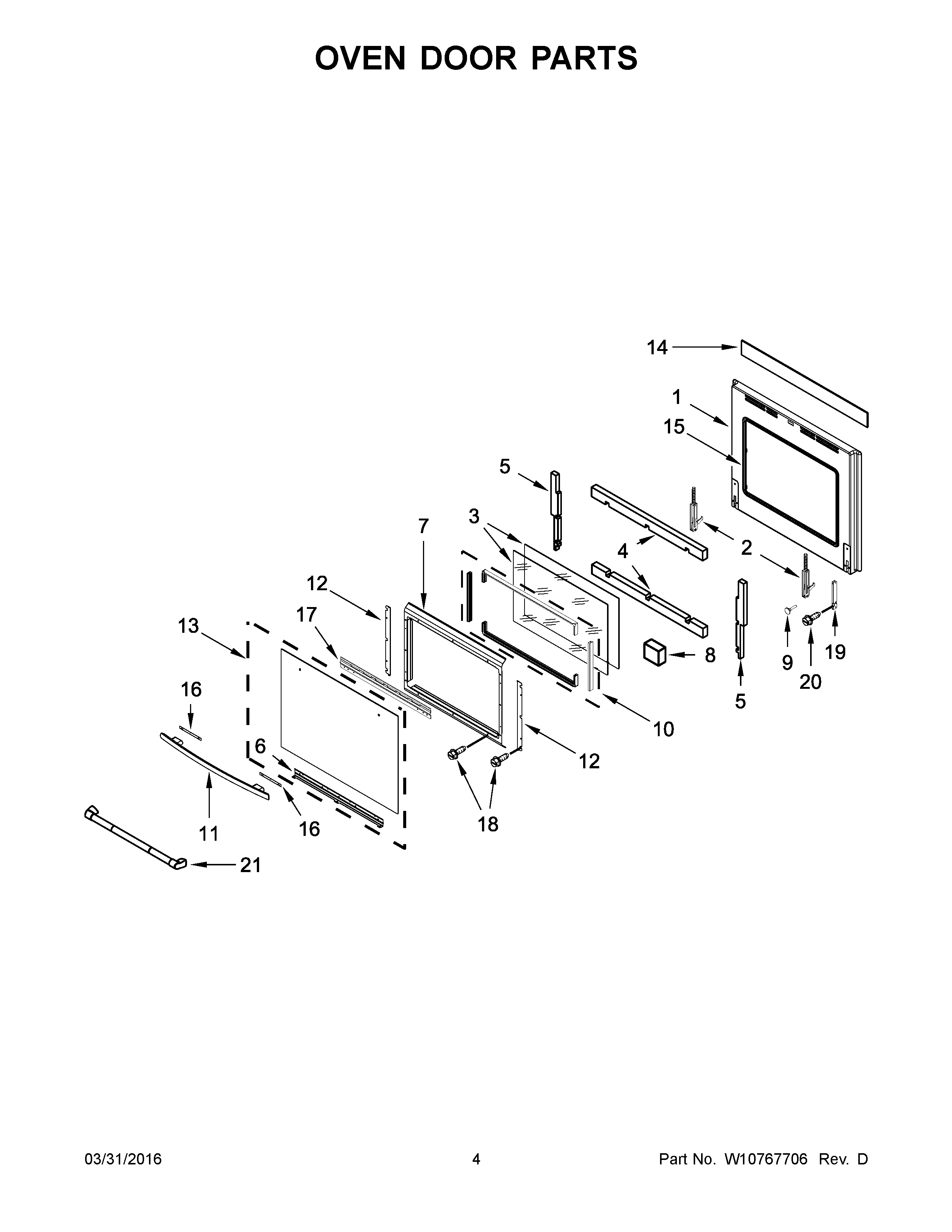

JMW2430WW03 03 – OVEN DOOR PARTS

JMW2430WW03 03 – OVEN DOOR PARTS

Written by

in

JMW2430WW03 03 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10187019
2HINGE, DOOR (2) (BLK/WHT/OILD BRNZ)
2AHINGE, DOOR (2) (STAINLESS)
3MAY W10176100
4MAY W10273676
5MAY W10273591
6BRACKET, DOOR CLIP
7MAY W10176103
8MAY W10296505
9MAY W10176233
10MAY W10305979
11AMAY W10186755
11MAY W10186754
11BMAY W10186756
12MAY W10186882
13CKIT, GLASS ASSY.
13MAY W10277594
13AKIT, GLASS ASSY. (BLACK)
13BKIT, GLASS ASSY. (STAINLESS)
14INSULATION, OVEN DOOR
15MAY W10213803
16BMAY W10213723
16AMAY W10176201
16MAY W10213722
17MAY W10176126
17AMAY W10213720
18MAY 7101P426- 60
19MAY W10175993
20MAY W10254050
21HANDLE, DOOR
