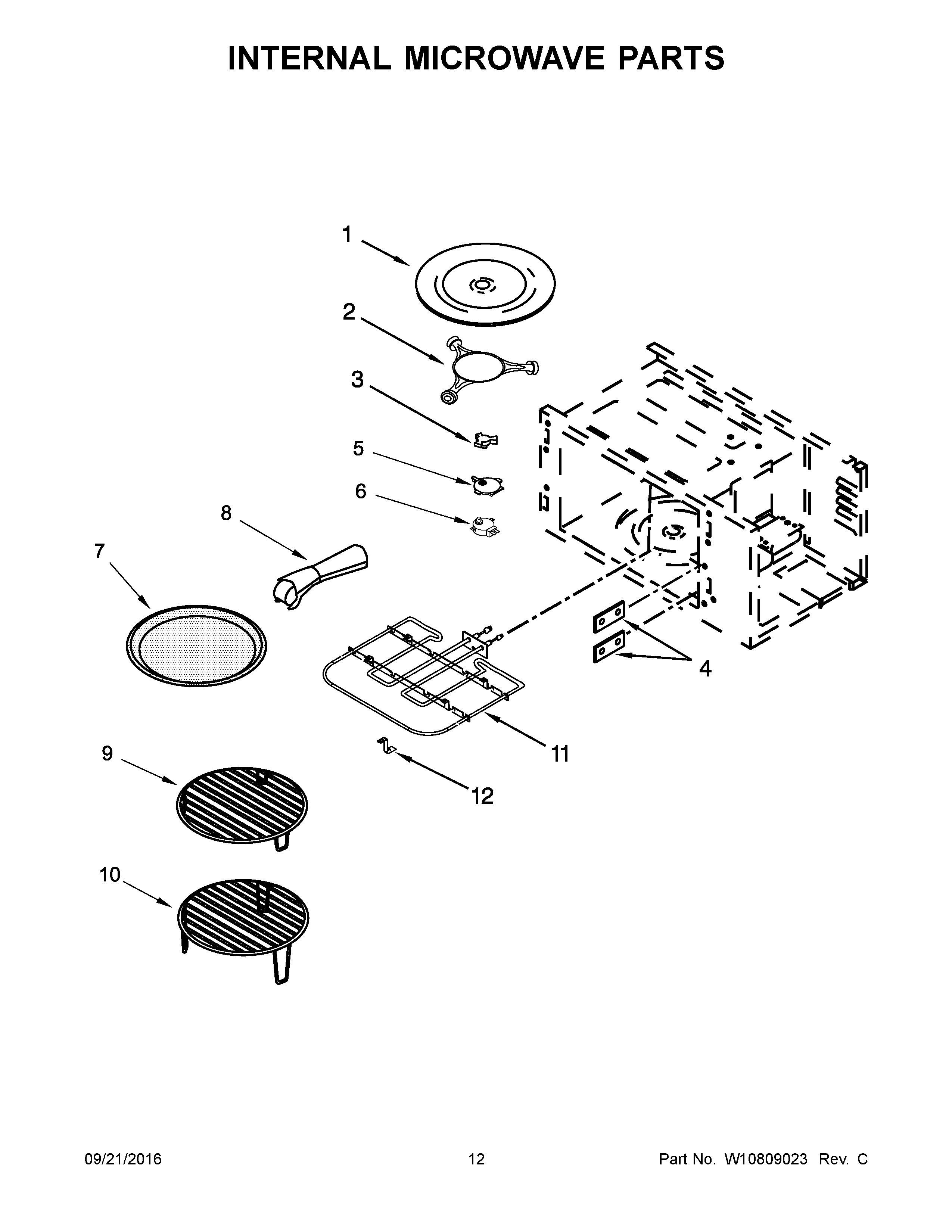

JMW3430DB00 07 – INTERNAL MICROWAVE PARTSadmin2025-04-26T09:41:01+00:00JMW3430DB00 07 – INTERNAL MICROWAVE PARTS
Products
| Position | Product |
|---|
| 1 | TURNTABLE |
| 2 | RING, TURNTABLE |
| 3 | DRIVE, TURNTABLE |
| 4 | PLATE, COVER |
| 5 | ADAPTER, TURNTABLE MOTOR |
| 6 | MOTOR, TURNTABLE |
| 7 | PLATE, CRISP |
| 8 | HANDLE, PAN |
| 9 | RACK, LOW CONVECTION |
| 10 | RACK, HIGH CONVECTION |
| 11 | ELEMENT, GRILL |
| 12 | SUPPORT, ELEMENT |
