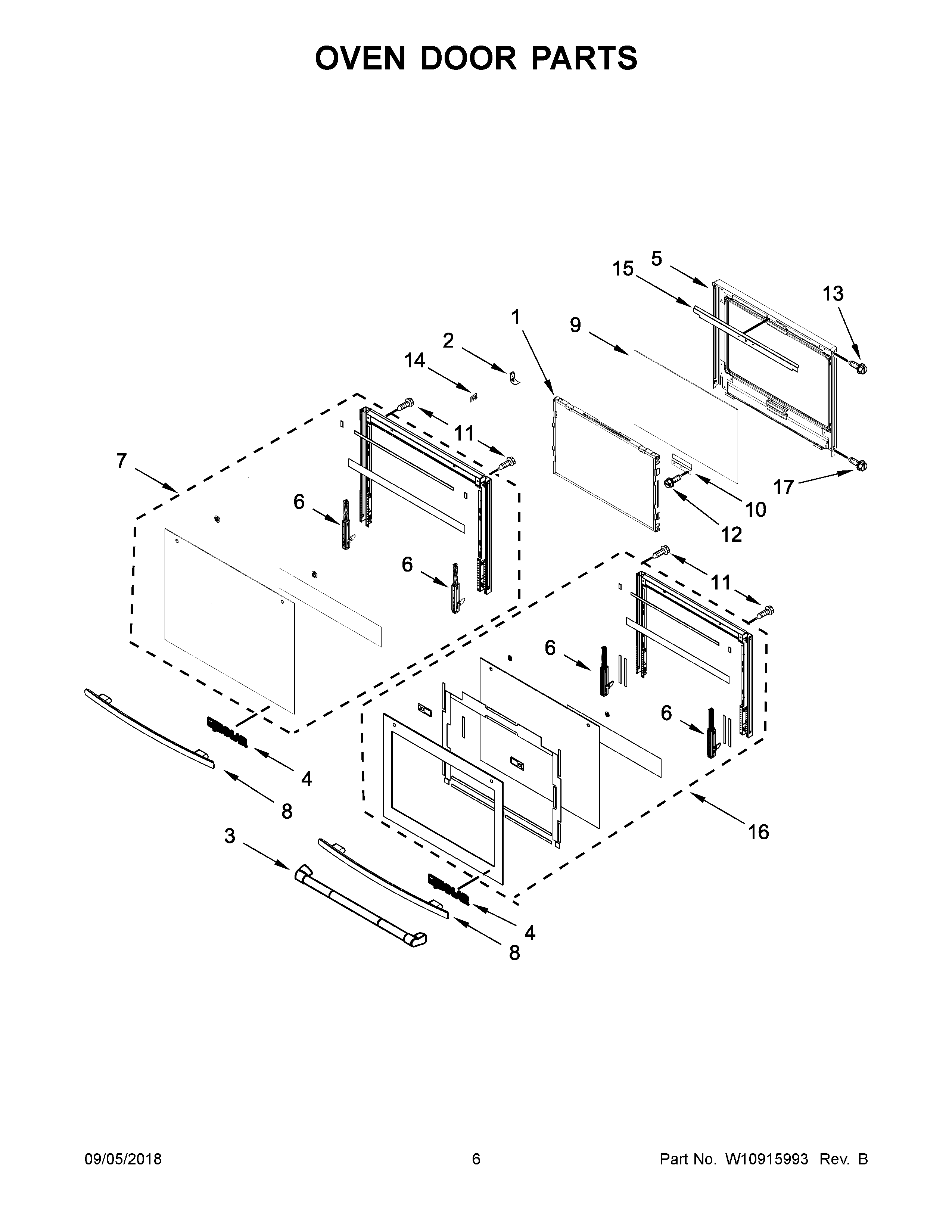

JMW3430DB02 04 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347596
2MAY W10284285
3ASSEMBLY, DOOR HANDLE (STAINLESS)
4ASSEMBLY, BADGE (BLACK)
4AASSEMBLY, BADGE (STAINLESS)
4BMAY W10159578
5MAY W10709147
6LINER (NOT A SERVICEABLE PART)
7ASSEMBLY, DOOR (BLACK)
8AASSEMBLY, DOOR HANDLE (STAINLESS)
8ASSEMBLY, DOOR HANDLE (BLACK)
9GLASS, INNER
10MAY W10284297
11AMAY W10530626
11SCREW
12MAY 7101P426- 60
13SCREW WITH WASHER
14MAY W10653954
15SHIELD, DOOR LINER
16ASSEMBLY, DOOR (STAINLESS)
17MAY 7101P635-60
