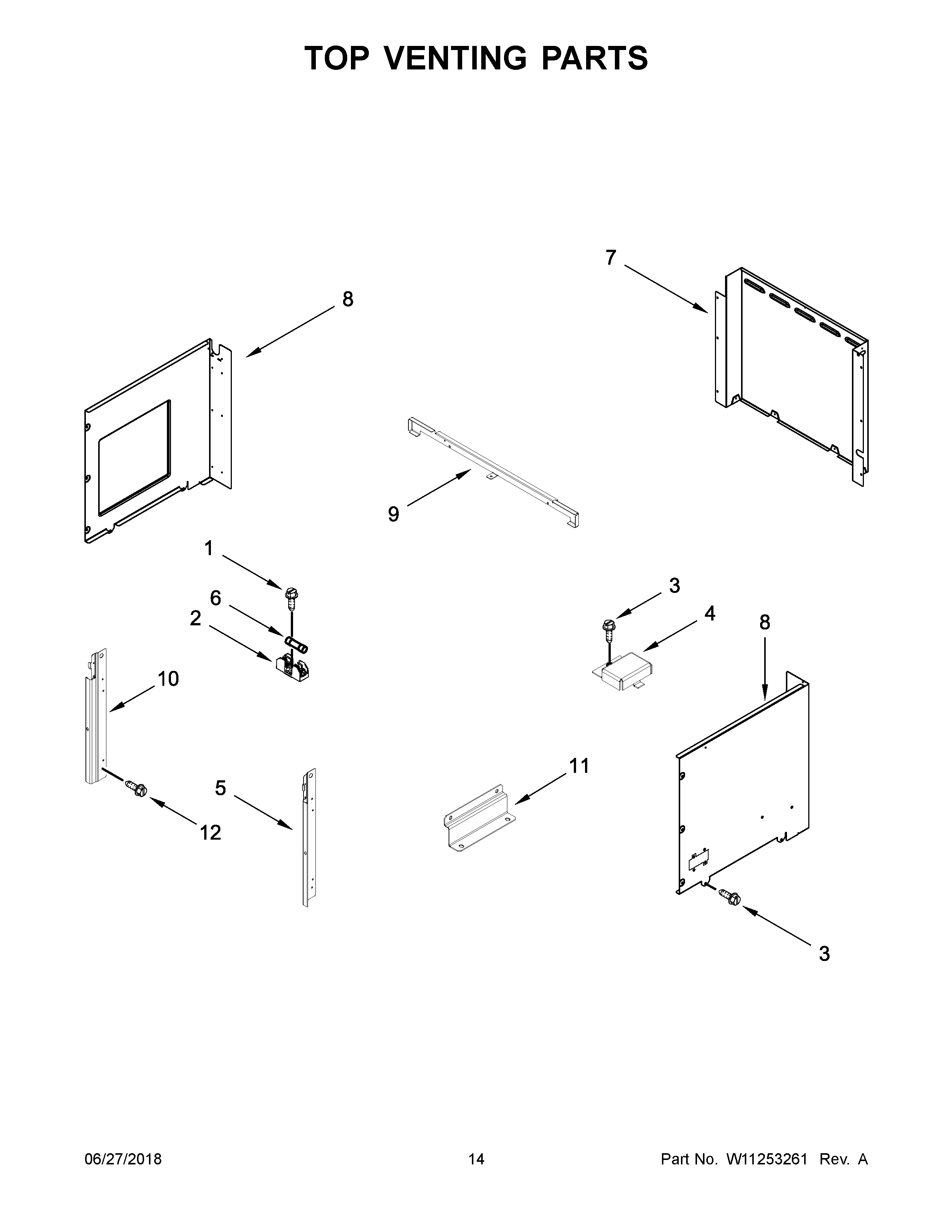

JMW3430DB03 08 – TOP VENTING PARTSadmin2025-04-26T09:45:55+00:00JMW3430DB03 08 – TOP VENTING PARTS
Products
| Position | Product |
|---|
| 1 | SCREW (10ABX1.0-ZN) |
| 2 | WIRING HARNESS PARTS, HOLDER, FUSE |
| 3 | MAY 7101P426- 60 |
| 4 | MAY 8285593 |
| 5 | RAIL, SIDE (RIGHT) |
| 6 | WIRING HARNESS PARTS, FUSE, TIME DELAY |
| 7 | COVER, BACK DUCT |
| 8 | CHASSIS, COMBO SIDE (LEFT) |
| 8A | CHASSIS, COMBO SIDE (RIGHT) |
| 9 | SUPPORT, CROSSBAR |
| 10 | RAIL, SIDE (LEFT) |
| 11 | SIDE, BRACKET |
| 12 | Screw (2) (Black) |
