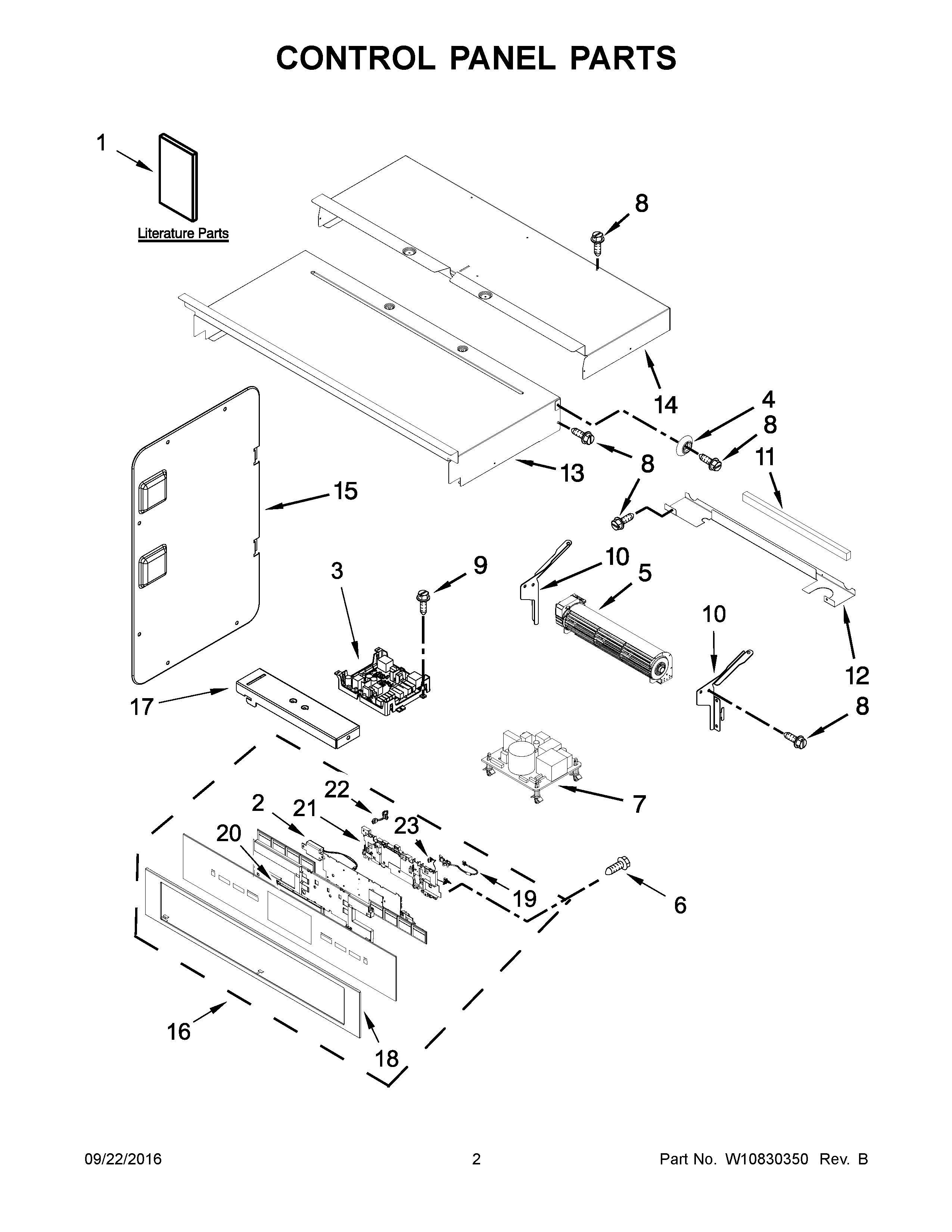

JMW3430DP01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	HARNESS, COMMUNICATION
NI	HARNESS, SIGNAL
NI	MAY W10406103
NI	MAY W10389372
NI	STRAP, GROUND
NI	HARNESS, MAIN
NI	MAY W10775068
NI	CLAMP, CONDUIT
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
1	GUIDE, USE & CARE
1A	GUIDE, USE & CARE (MICROWAVE)
1B	INSTRUCTIONS, INSTALLATION
1C	INSTR, INSTALLER
1D	SHEET, TECH (ENGLISH)
2	ASSEMBLY, SPEAKER
3	MANAGER, APPLIANCE
4	SPACER, LATERAL
5	BLOWER
6	MAY W10489172
7	BOARD, POWER SUPPLY
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	CHASSIS, BACK DIVIDER
13	CHASSIS, COVER TOP FRONT 30"
14	CHASSIS, COVER TOP BACK 30"
15	CHASSIS, COMBO SIDE
16A	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
16	MAY W10524558
17	MAY W10323725
18	SKIN, CONTROL PANEL (STAINLESS)
19	JUMPER HARNESS, POWER SUPPLY
20	DISPLAY, LCD
21	HOUSING
22	HARNESS, KEYPAD (LEFT TO CENTER)
23	HARNESS, KEYPAD (RIGHT TO CENTER)
