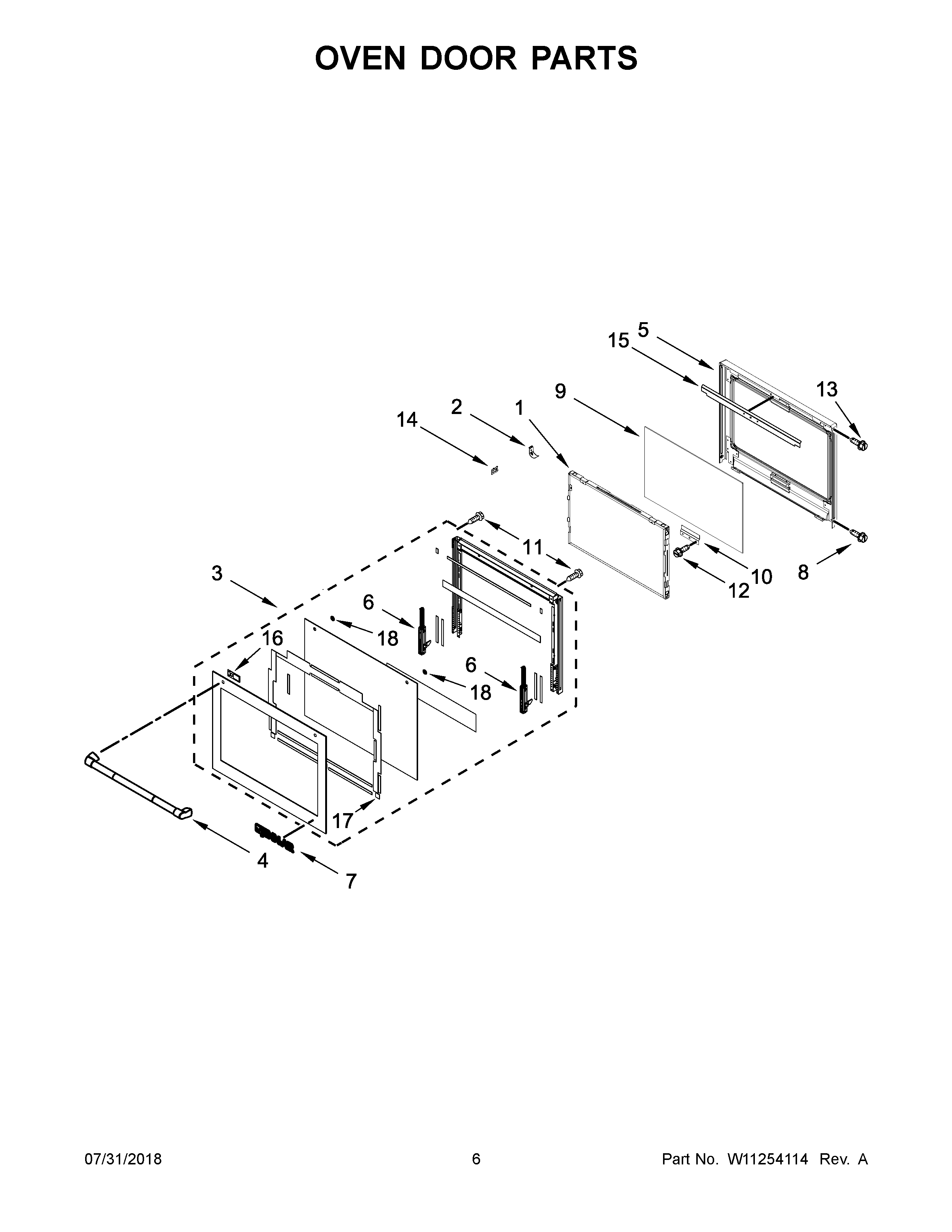

JMW3430DP03 04 – OVEN DOOR PARTS

JMW3430DP03 04 – OVEN DOOR PARTS

Written by

in

JMW3430DP03 04 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347596
2MAY W10284285
3ASSEMBLY, DOOR (STAINLESS)
4ASSEMBLY, DOOR HANDLE (STAINLESS)
5MAY W10709147
6LINER (NOT A SERVICEABLE PART)
7MAY W10159578
8MAY 7101P635-60
9GLASS, INNER
10MAY W10284297
11MAY W10530626
12MAY 7101P426- 60
13SCREW WITH WASHER
14MAY W10653954
15SHIELD, DOOR LINER
16SPACER, HANDLE
17SPACER, VENT
18WASHER, DOOR
