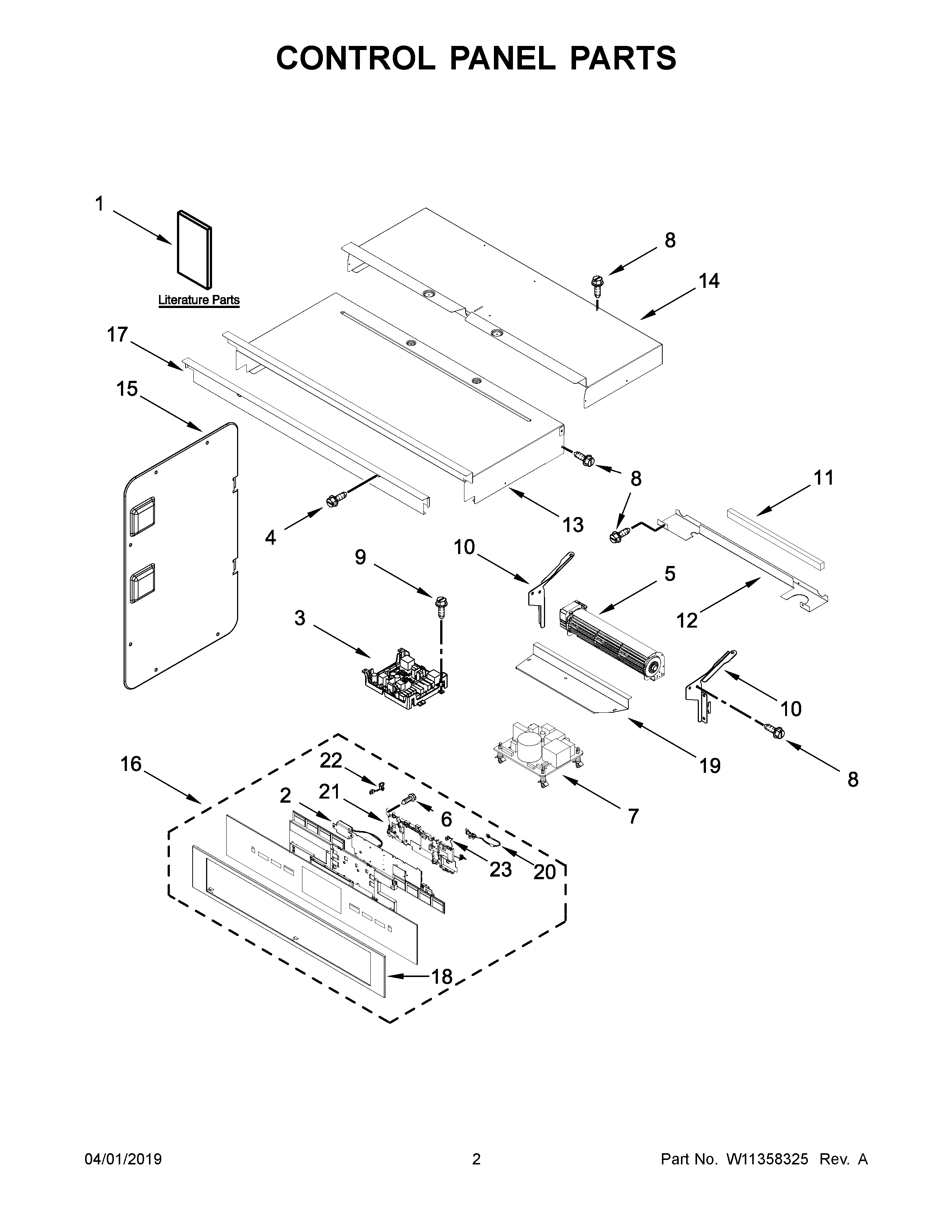

JMW3430DP04 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, INVERTER
NI	MAY W11198503
NI	CLAMP, CONDUIT
NI	TIE, CABLE
NI	ASSEMBLY, ANTENNA & HOUSING
NI	HARNESS, DOOR LATCH
NI	HARNESS, CABLE TREE ASSEMBLY
NI	STRAP, GROUND
NI	HARNESS, MAIN
NI	HARNESS, SIGNAL
NI	HARNESS, COMMUNICATION
NI	MAY 4450800
NI	HARNESS, FAN & TURNTABLE
1B	INSTRUCTIONS, INSTALLATION
1E	GUIDE, WIFI CONNECTIVITY
1	GUIDE, USE & CARE
1A	GUIDE, USE & CARE (MICROWAVE)
1C	SHEET, TECH (ENGLISH)
1D	SHEET, TECH (FRENCH)
2	ASSEMBLY, SPEAKER
3	MANAGER, APPLIANCE
4	Screw (2) (Black)
5	BLOWER
6	MAY W10489172
7	BOARD, POWER SUPPLY
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	CHASSIS, BACK DIVIDER
13	CHASSIS, COVER TOP FRONT 30"
14	CHASSIS, COVER TOP BACK 30"
15	CHASSIS, COMBO SIDE
16	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
17	COVER, 30" COMPLIMENT
18	SKIN, CONTROL PANEL (STAINLESS)
19	COVER, COMBO BLOWER
20	JUMPER HARNESS, POWER SUPPLY
21	HOUSING
22	HARNESS, KEYPAD (LEFT TO CENTER)
23	HARNESS, KEYPAD (RIGHT TO CENTER)
