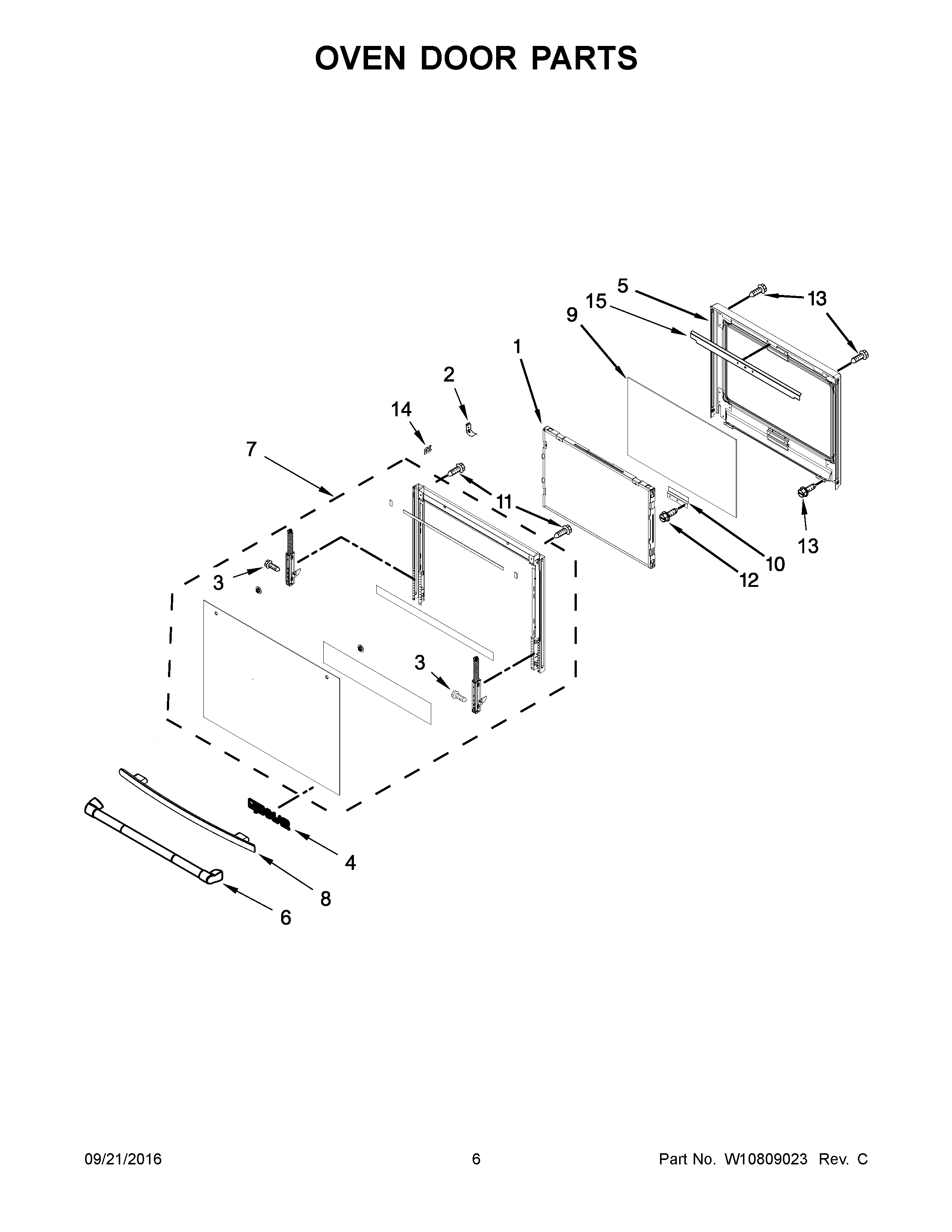

JMW3430DS00 04 – OVEN DOOR PARTS

JMW3430DS00 04 – OVEN DOOR PARTS

Written by

in

JMW3430DS00 04 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347596
2MAY W10284285
3SCREW
4ASSEMBLY, BADGE (BLACK)
4AASSEMBLY, BADGE (STAINLESS)
4BMAY W10159578
5MAY W10709147
6ASSEMBLY, DOOR HANDLE (STAINLESS)
7AMAY W10649195
7ASSEMBLY, DOOR (BLACK)
8AASSEMBLY, DOOR HANDLE (STAINLESS)
8ASSEMBLY, DOOR HANDLE (BLACK)
9GLASS, INNER
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13Screw (2) (Black)
14MAY W10653954
15SHIELD, DOOR LINER
