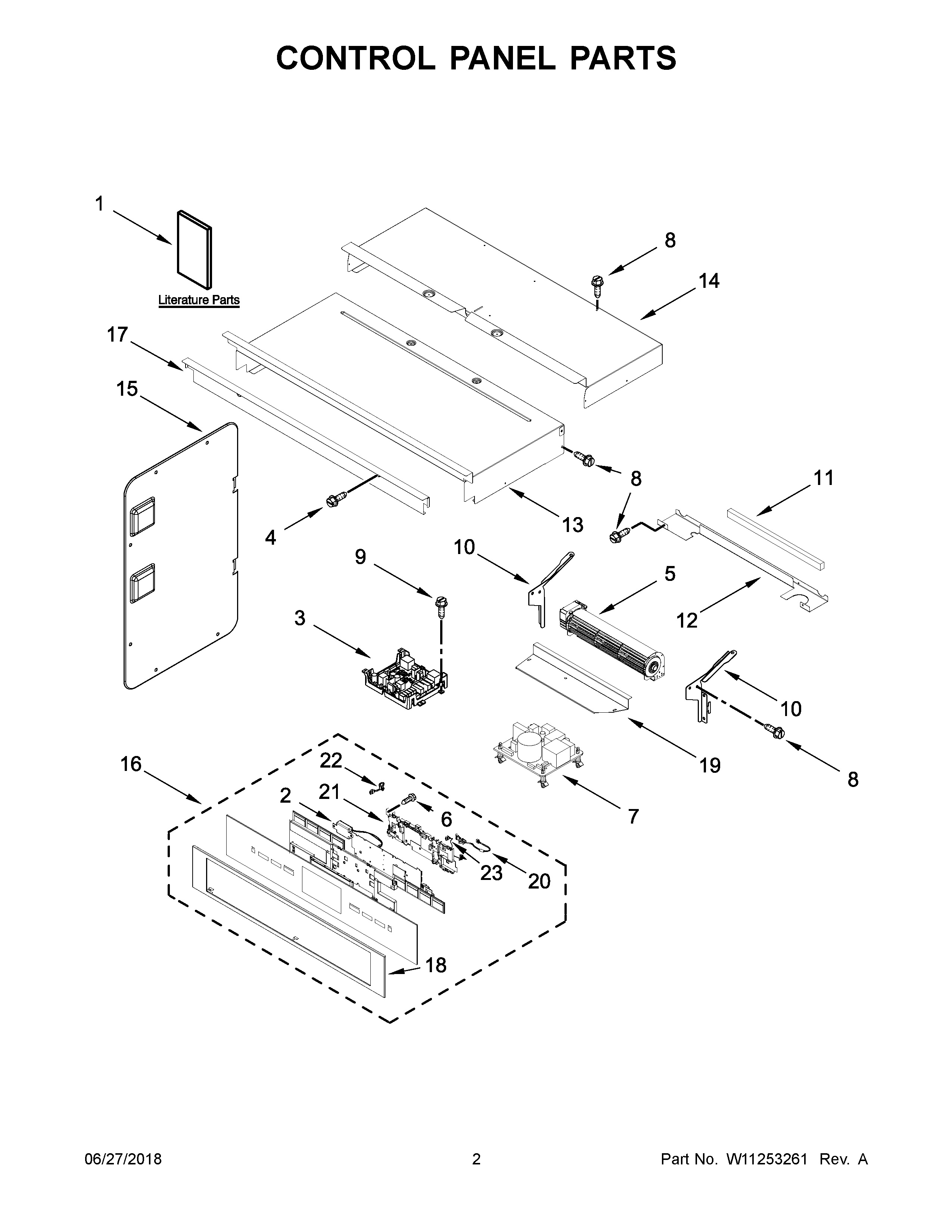

JMW3430DS03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIASSEMBLY, ANTENNA & HOUSING
NITIE, CABLE
NICLAMP, CONDUIT
NISTRAP, GROUND
NIHARNESS, INVERTER
NIHARNESS, CABLE TREE ASSEMBLY
NIHARNESS, COMMUNICATION
NIHARNESS, DOOR LATCH
NIHARNESS, SIGNAL
NIHARNESS, FAN & TURNTABLE
NIHARNESS, MAIN
NIMAY 4450800
1CSHEET, TECH (ENGLISH)
1BINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
1EGUIDE, WIFI CONNECTIVITY
1DSHEET, TECH (FRENCH)
1AGUIDE, USE & CARE (MICROWAVE)
2ASSEMBLY, SPEAKER
3MANAGER, APPLIANCE
4Screw (2) (Black)
5BLOWER
6MAY W10489172
7BOARD, POWER SUPPLY
8MAY 7101P426- 60
9MAY 7101P434-60
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP FRONT 30"
14CHASSIS, COVER TOP BACK 30"
15CHASSIS, COMBO SIDE
16ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
16AMAY W10876348
17COVER, 30" COMPLIMENT
18SKIN, CONTROL PANEL (STAINLESS)
19COVER, COMBO BLOWER
20JUMPER HARNESS, POWER SUPPLY
21HOUSING
22HARNESS, KEYPAD (LEFT TO CENTER)
23HARNESS, KEYPAD (RIGHT TO CENTER)
