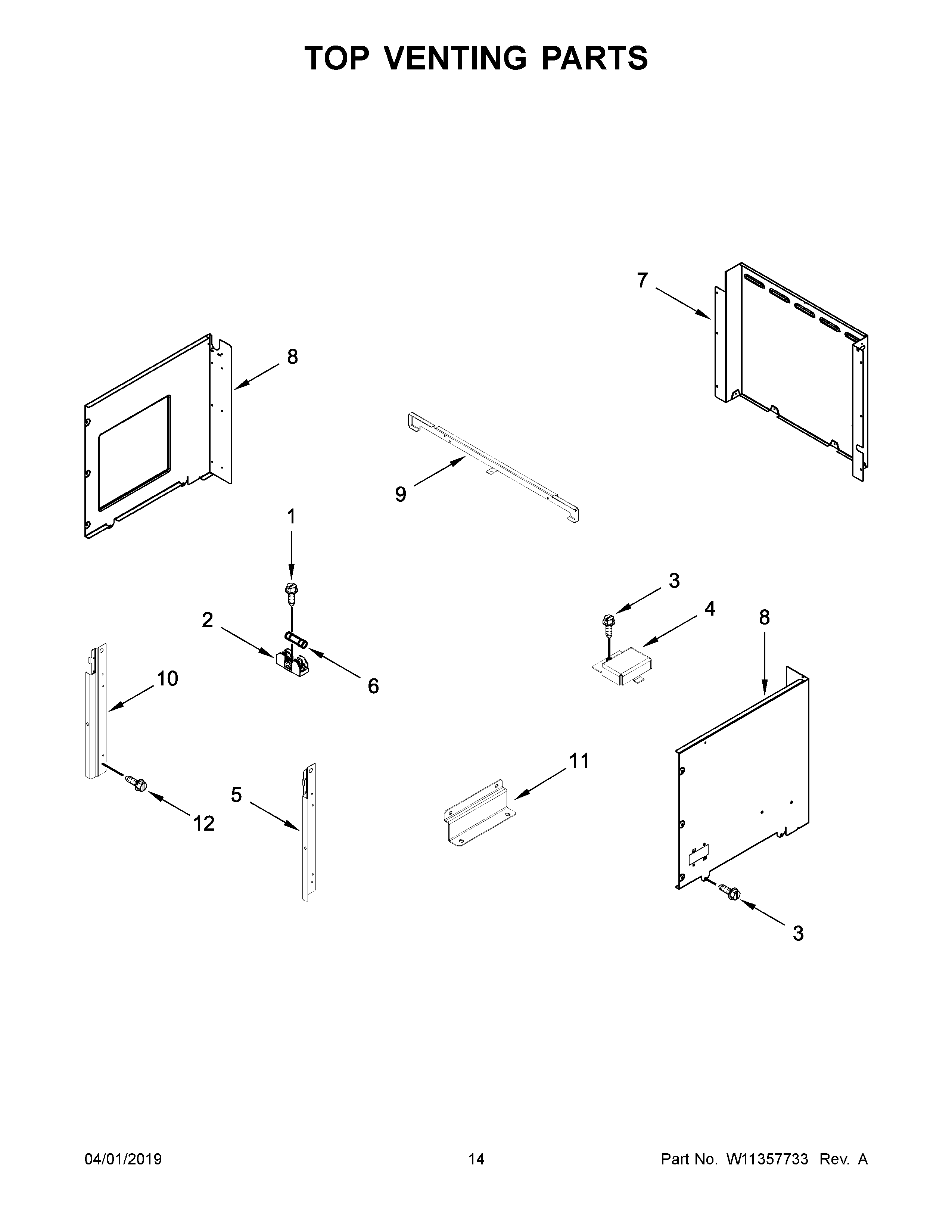

JMW3430DS04 08 – TOP VENTING PARTS

Written by

Products

Position	Product
1	SCREW (10ABX1.0-ZN)
2	WIRING HARNESS PARTS, HOLDER, FUSE
3	MAY 7101P426- 60
4	MAY 8285593
5	RAIL, SIDE (RIGHT)
6	WIRING HARNESS PARTS, FUSE, TIME DELAY
7	COVER, BACK DUCT
8	CHASSIS, COMBO SIDE (LEFT)
8A	CHASSIS, COMBO SIDE (RIGHT)
9	SUPPORT, CROSSBAR
10	RAIL, SIDE (LEFT)
11	SIDE, BRACKET
12	Screw (2) (Black)
