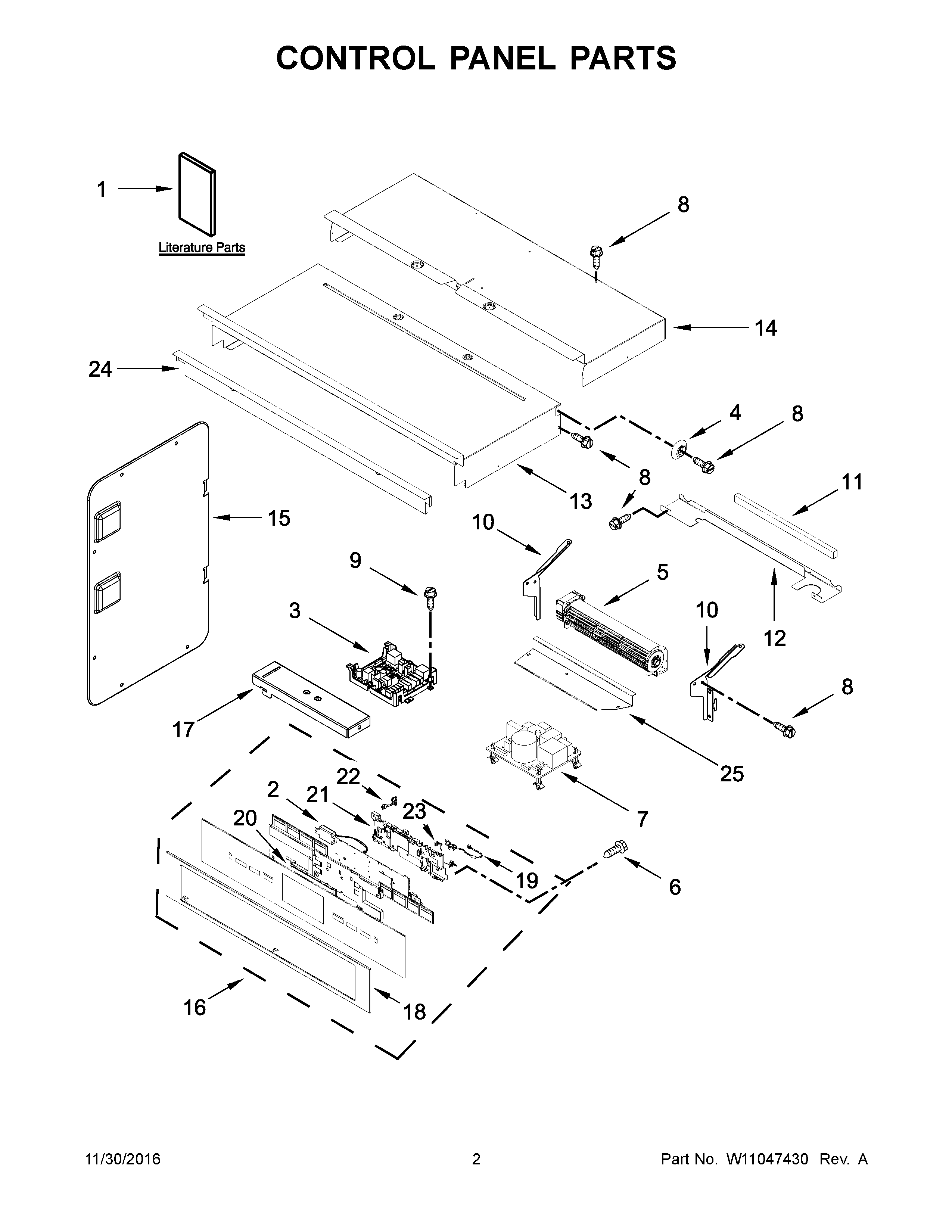

JMW3430HP00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, COMMUNICATION
NIHARNESS, SIGNAL
NIHARNESS, MAIN
NIHARNESS, INVERTER
NIHARNESS, FAN & TURNTABLE
NISTRAP, GROUND
NIASSEMBLY, ANTENNA & HOUSING
NIMAY W10775068
NICLAMP, CONDUIT
NILINER (NOT A SERVICEABLE PART)
NICLIP, HARNESS
NIMAY 4450800
1CSHEET, TECH (ENGLISH)
1BINSTRUCTIONS, INSTALLATION
1DGUIDE, WIFI CONNECTIVITY
1GUIDE, USE & CARE
1AGUIDE, USE & CARE (MICROWAVE)
2ASSEMBLY, SPEAKER
3MANAGER, APPLIANCE
4SPACER, LATERAL
5BLOWER
6MAY W10489172
7BOARD, POWER SUPPLY
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP FRONT 30"
14CHASSIS, COVER TOP BACK 30"
15CHASSIS, COMBO SIDE
16ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
17MAY W10323725
18SKIN, CONTROL PANEL (STAINLESS)
19JUMPER HARNESS, POWER SUPPLY
20DISPLAY, LCD
21HOUSING
22HARNESS, KEYPAD (LEFT TO CENTER)
23HARNESS, KEYPAD (RIGHT TO CENTER)
24COVER, 30" COMPLIMENT
25COVER, COMBO BLOWER
