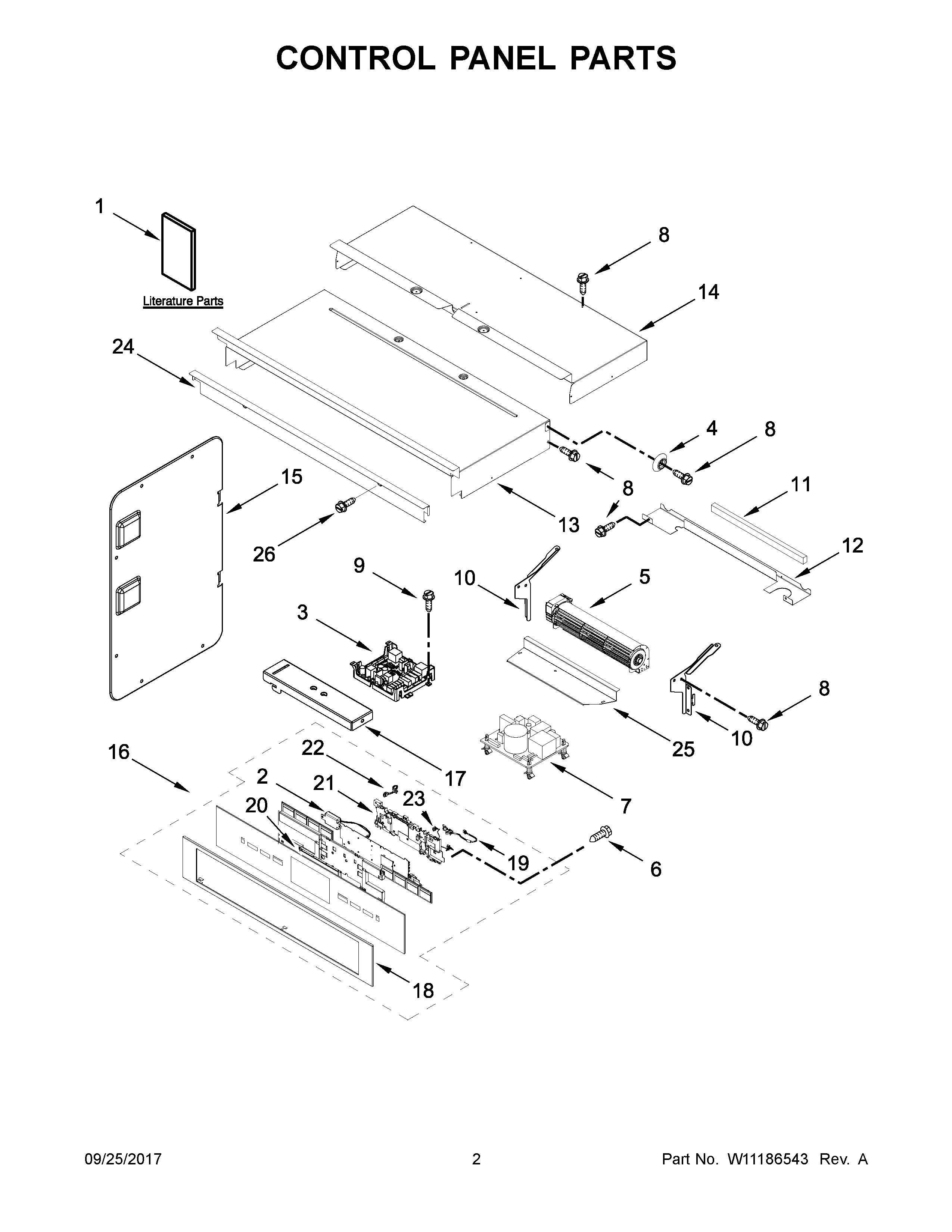

JMW3430HS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, COMMUNICATION
NI	MAY W10775068
NI	ASSEMBLY, ANTENNA & HOUSING
NI	STRAP, GROUND
NI	HARNESS, FAN & TURNTABLE
NI	HARNESS, INVERTER
NI	HARNESS, CABLE TREE ASSEMBLY
NI	HARNESS, MAIN
NI	HARNESS, SIGNAL
NI	CLAMP, CONDUIT
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, HARNESS
NI	MAY 4450800
1C	SHEET, TECH (ENGLISH)
1B	INSTRUCTIONS, INSTALLATION
1D	GUIDE, WIFI CONNECTIVITY
1	GUIDE, USE & CARE
1A	GUIDE, USE & CARE (MICROWAVE)
2	ASSEMBLY, SPEAKER
3	MANAGER, APPLIANCE
4	SPACER, LATERAL
5	BLOWER
6	MAY W10489172
7	BOARD, POWER SUPPLY
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	CHASSIS, BACK DIVIDER
13	CHASSIS, COVER TOP FRONT 30"
14	CHASSIS, COVER TOP BACK 30"
15	CHASSIS, COMBO SIDE
16	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
17	MAY W10323725
18	SKIN, CONTROL PANEL (STAINLESS)
19	JUMPER HARNESS, POWER SUPPLY
20	DISPLAY, LCD
21	HOUSING
22	HARNESS, KEYPAD (LEFT TO CENTER)
23	HARNESS, KEYPAD (RIGHT TO CENTER)
24	COVER, 30" COMPLIMENT
25	COVER, COMBO BLOWER
26	MAY 7101P653-60
