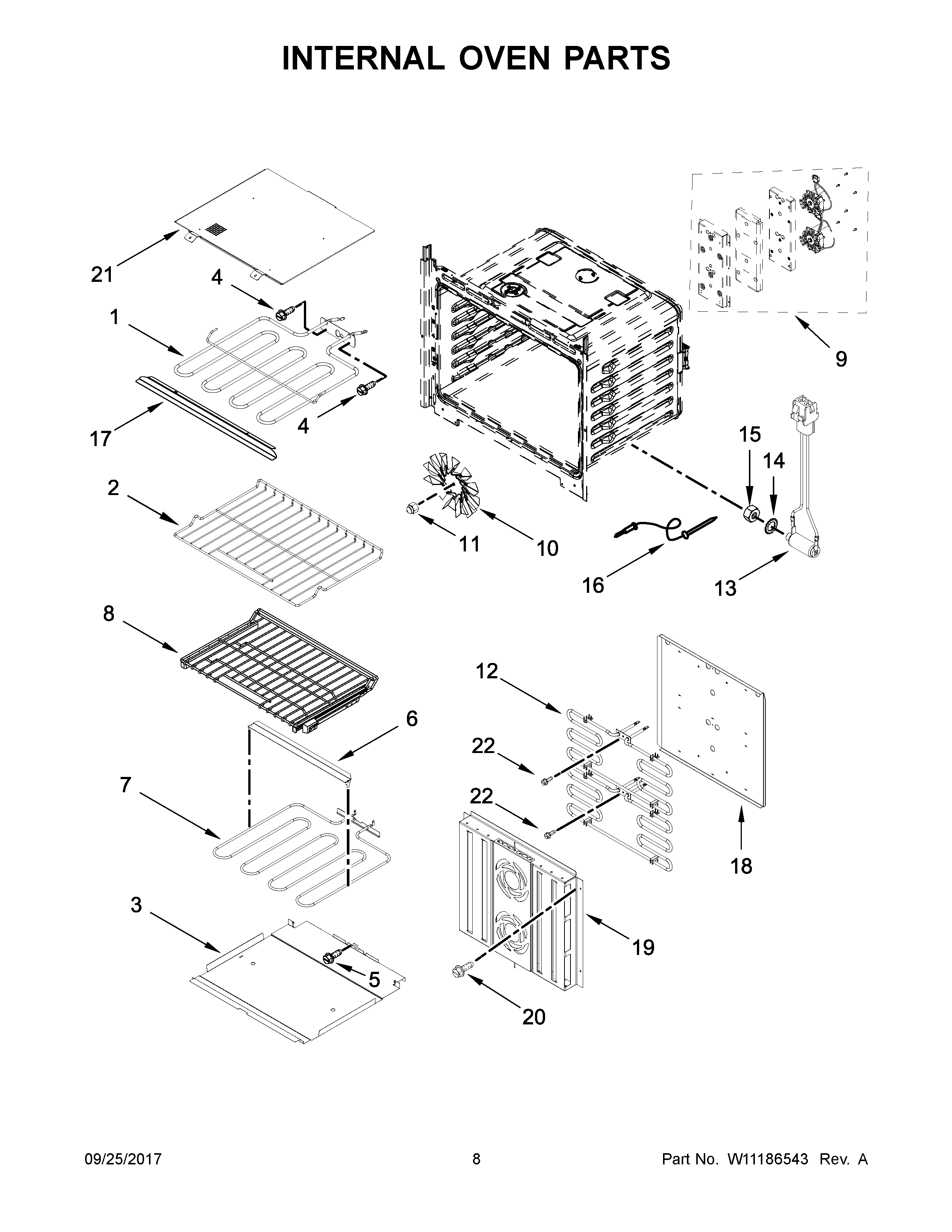

JMW3430HS00 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	RACK, OVEN
3	TRAY, HIDDEN BAKE
4	MAY 7101P376-60
5	MAY 7101P426- 60
6	CROSSBAR, HIDDEN BAKE TRAY
7	MAY W10546517
8	MAY W10663550
9	MAY W10559986
10	MAY W10213746
11A	MAY W10213749
11	MAY W10631504
12	ELEMENT, CONVECTION
13	JACK, MEAT PROBE
14	WASHER
15	LOCKNUT
16	PROBE-MEAT
17	SHIELD, BROIL FRONT
18	MAY W10559982
19	ASSEMBLY, BAFFLE
20	SCREW
21	SHIELD, BROIL ELEMENT
22	MAY W10236129
