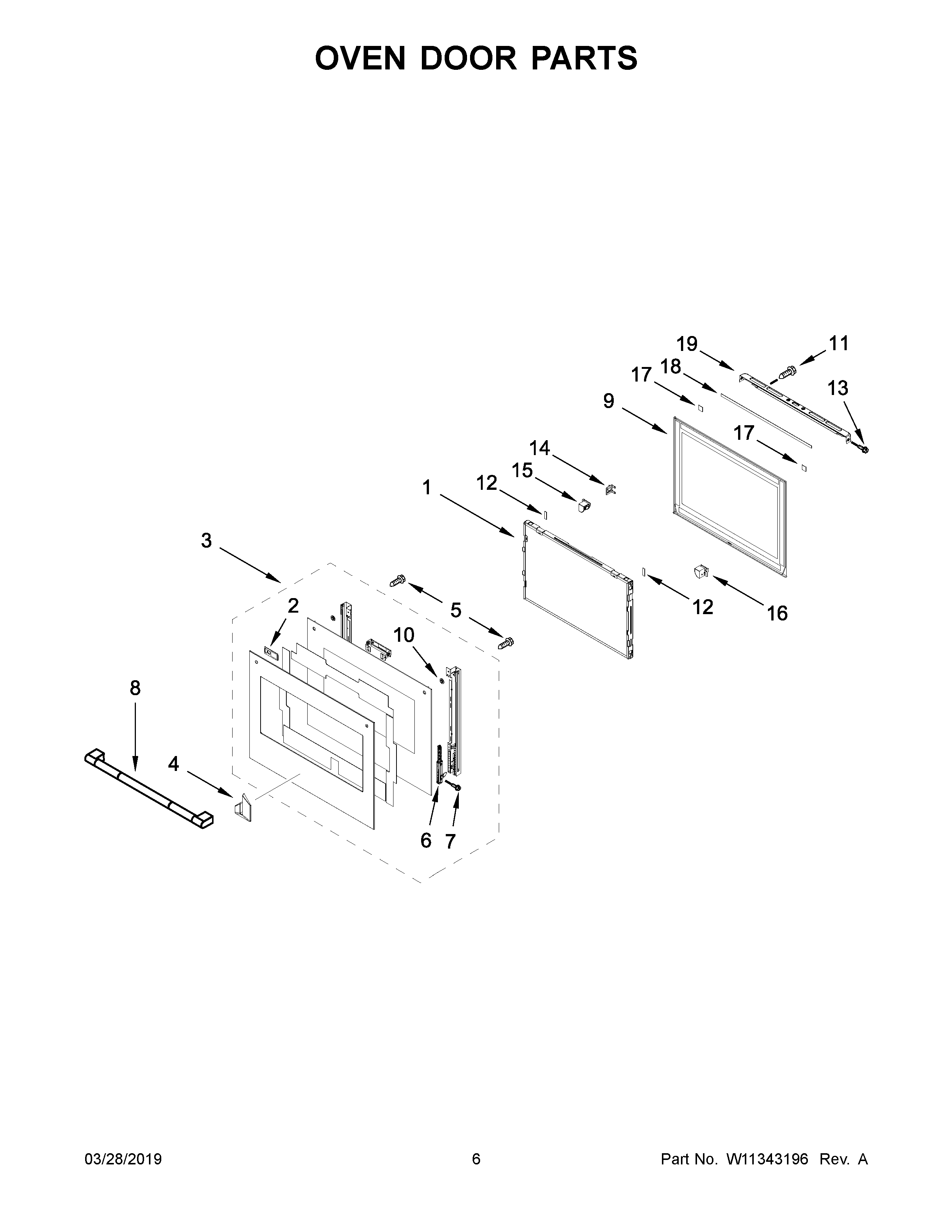

JMW3430IL00 04 – OVEN DOOR PARTSadmin2025-04-26T09:42:49+00:00JMW3430IL00 04 – OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, WINDOW PACK |
| 2 | SPACER, HANDLE |
| 3 | ASSEMBLY, DOOR (STAINLESS) |
| 4 | NAMEPLATE (STAINLESS) |
| 5 | SCREW |
| 6 | HINGE, DOOR |
| 7 | SCREW |
| 8 | ASSEMBLY, HANDLE (STAINLESS) |
| 9 | ASSEMBLY, GLASS CAVITY |
| 10 | WASHER, DOOR |
| 11 | MAY 7101P427-60 |
| 12 | SPACER |
| 13 | SCREW WITH WASHER |
| 14 | CLIP, SPRING |
| 15 | BRACKET, DOOR (LEFT) |
| 16 | BRACKET, DOOR (RIGHT) |
| 17 | SPACER, VENT |
| 18 | PAD, VENT |
| 19 | VENT, TOP METAL |
