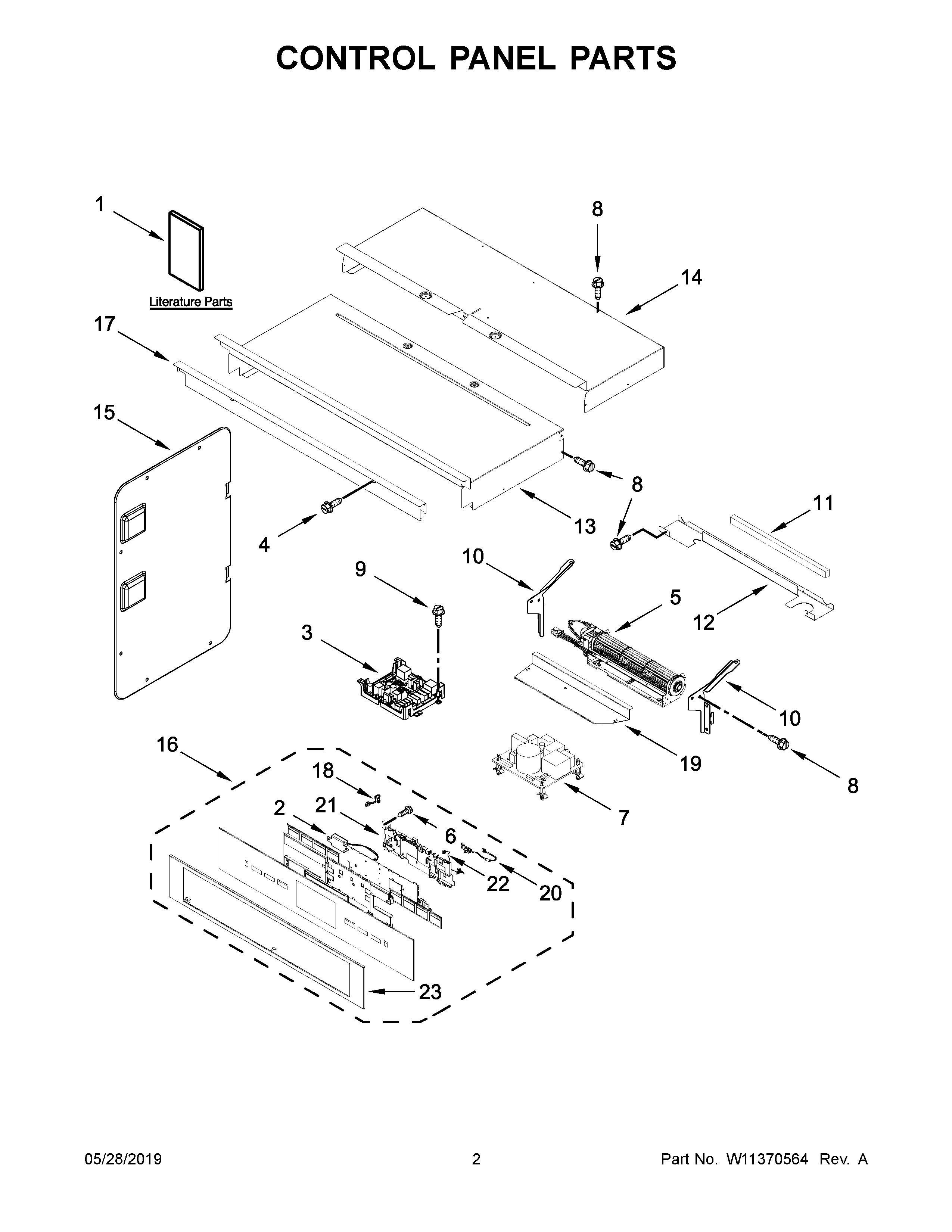

JMW3430IL02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11216660
NI	HARNESS, MAIN
NI	HARNESS, INVERTER
NI	CLAMP, CONDUIT
NI	TIE, CABLE
NI	HARNESS, DOOR LATCH
NI	JUMPER HARNESS, COMMUNICATION
NI	STRAP, GROUND
NI	HARNESS, FAN AND TURNTABLE
NI	MAY W11218145
NI	HARNESS, CABLE TREE ASSEMBLY
NI	MAY 4450800
NI	ASSEMBLY, ANTENNA & HOUSING
1	GUIDE, USE & CARE (OVEN)
1A	MAY W11235344
1E	GUIDE, INTERNET CONNECTIVITY
1D	SHEET, TECH (FRENCH)
1C	SHEET, TECH (OVEN/MICRO COMBO)
1F	DIAGRAM, WIRING
1B	INSTRUCTIONS, INSTALLATION
2	ASSEMBLY, SPEAKER
3	MAY W11281213
4	Screw (2) (Black)
5	BLOWER
6	MAY W10489172
7	BOARD, POWER SUPPLY
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	CHASSIS, BACK DIVIDER
13	CHASSIS, COVER TOP FRONT 30"
14	CHASSIS, COVER TOP BACK 30"
15	CHASSIS, COMBO SIDE
16	MAY W11196780
17	COVER, 30" COMPLIMENT
18	HARNESS, KEYPAD (LEFT TO CENTER)
19	COVER, COMBO BLOWER
20	JUMPER HARNESS, POWER SUPPLY
21	HOUSING
22	HARNESS, KEYPAD (RIGHT TO CENTER)
23	SKIN, CONTROL PANEL (STAINLESS)
