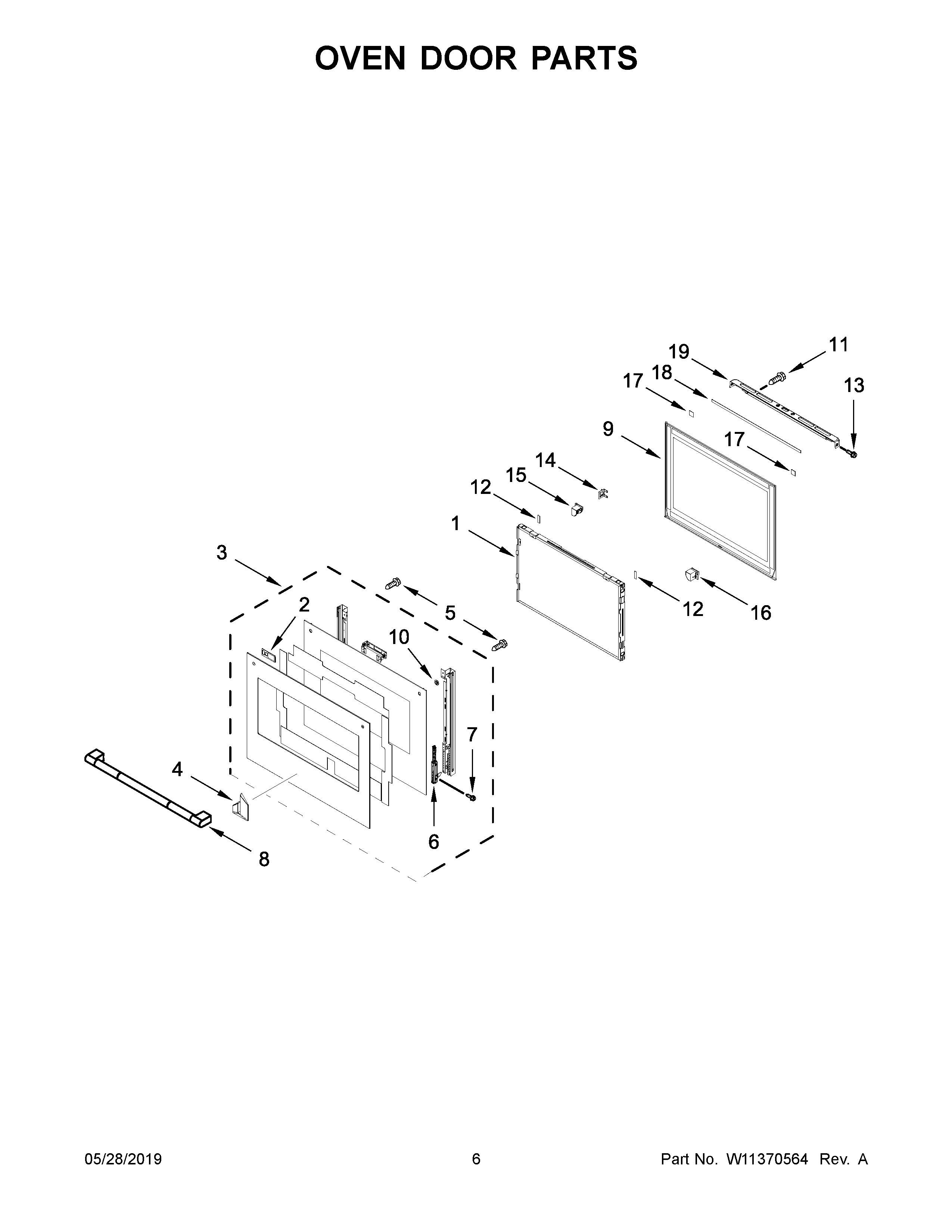

JMW3430IL02 04 – OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	SPACER, HANDLE
3	ASSEMBLY, DOOR (STAINLESS)
4	NAMEPLATE (STAINLESS)
5	SCREW
6	HINGE, DOOR
7	SCREW
8	ASSEMBLY, HANDLE (STAINLESS)
9	ASSEMBLY, GLASS CAVITY
10	WASHER, DOOR
11	MAY 7101P427-60
12	SPACER
13	SCREW WITH WASHER
14	CLIP, SPRING
15	BRACKET, DOOR (LEFT)
16	BRACKET, DOOR (RIGHT)
17	SPACER, VENT
18	PAD, VENT
19	VENT, TOP METAL
