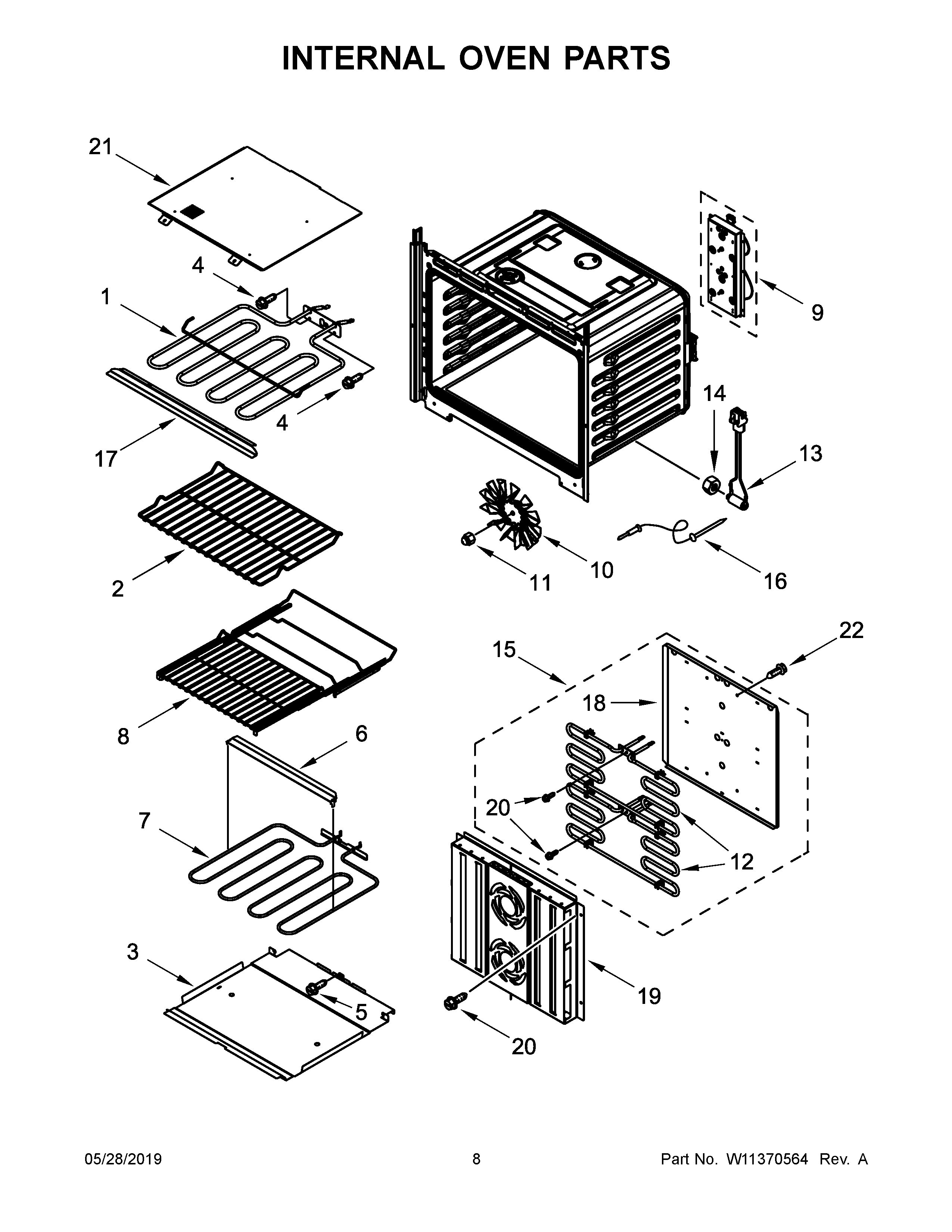

JMW3430IL02 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	RACK, OVEN
3	TRAY, HIDDEN BAKE
4	MAY 7101P434-60
5	MAY 7101P426- 60
6	CROSSBAR, HIDDEN BAKE TRAY
7	MAY W10546517
8	RACK, SLIDING
9	ASSEMBLY, CONVECTION MOTOR
10	BLADE, CONVECTION FAN
11	MAY W10631504
11A	NUT, ACORN (RH)
12	ELEMENT, CONVECTION
13	JACK, MEAT PROBE
14	NUT, LOCKING
15	ASSEMBLY, CONVECTION ELEMENT
16	PROBE-MEAT
17	SHIELD, BROIL FRONT
18	SHIELD, CONVECTION
19	ASSEMBLY, BAFFLE
20	MAY W10236129
21	SHIELD, BROIL ELEMENT
22	SCREW
