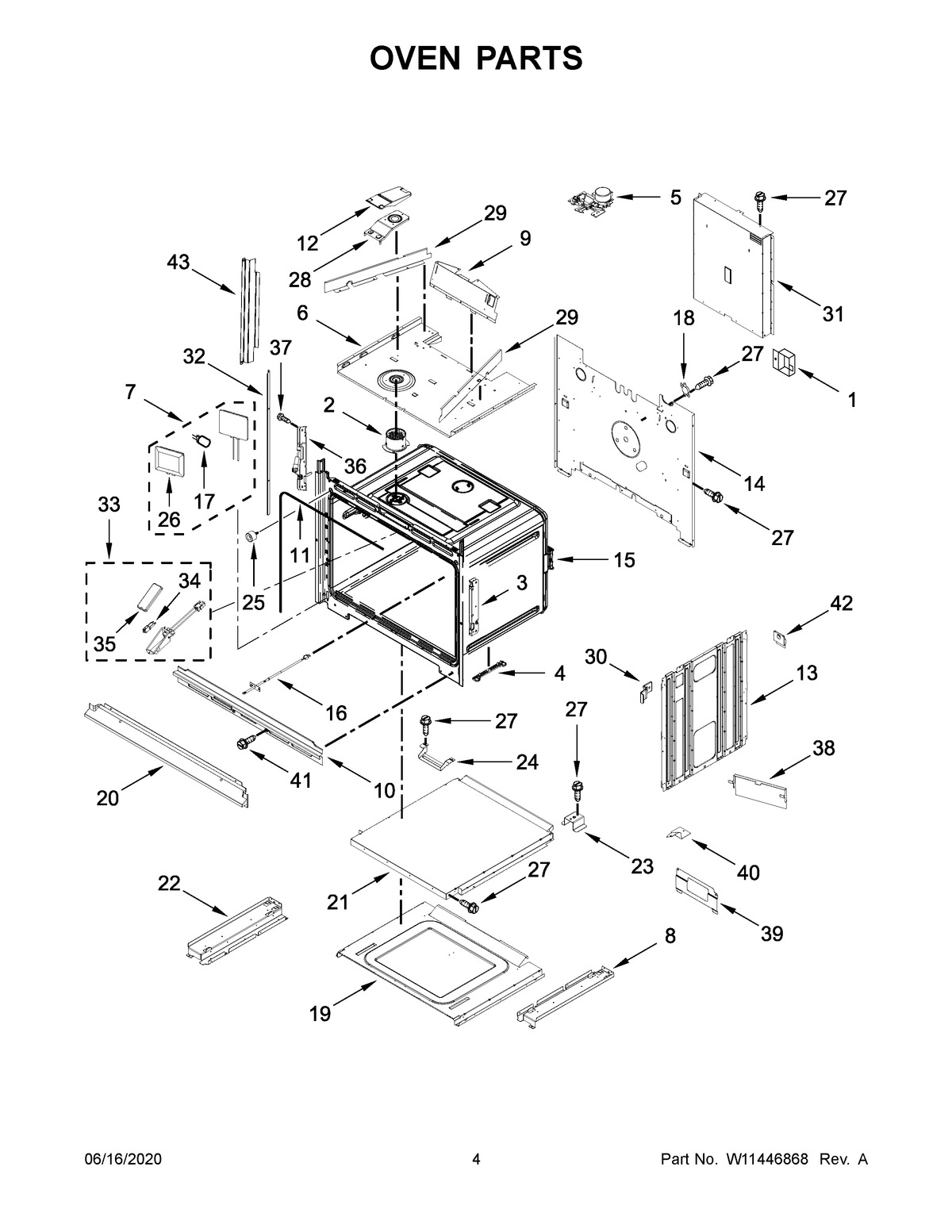

JMW3430IL03 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, CONTROL KNOB
NI	INSULATION, WRAP
NI	INSULATION, CAVITY
1	MAY 8285593
2	TUBE, VENT
3	RECEIVER, HINGE
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	SUPPORT, BASE (RIGHT)
9	DEFLECTOR, BLOWER
10	MAY W11299322
11	GASKET
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (LEFT)
13A	SIDE, CHASSIS (RIGHT)
15	LINER (NOT A SERVICEABLE PART)
16	PROBE, SENSOR
17	BULB, LIGHT
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	SUPPORT, BASE (LEFT)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	LENS, LIGHT
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	DEFLECTOR, CHASSIS
30	SPACERS, FRONT
31	COVER, COMBO CHASSIS BACK DUCT (WITH HOLE)
32	TRIM, SIDE (BLACK (LEFT))
32A	TRIM, SIDE (BLACK (RIGHT))
33	ASSEMBLY, LIGHT (TOP)
34	BULB, OVEN
35	LENS
36	RECEIVER, SLOW CLOSE HINGE
37	MAY W10254050
38	SHIELD, INNER
39	SHIELD, OUTER
40	SHIELD. BOTTOM (LEFT)
40A	SHIELD. BOTTOM (RIGHT)
41	SCREW
42	SPACER, CENTER
43	SHIELD, FRONT FRAME HEAT
